Eigenschappen

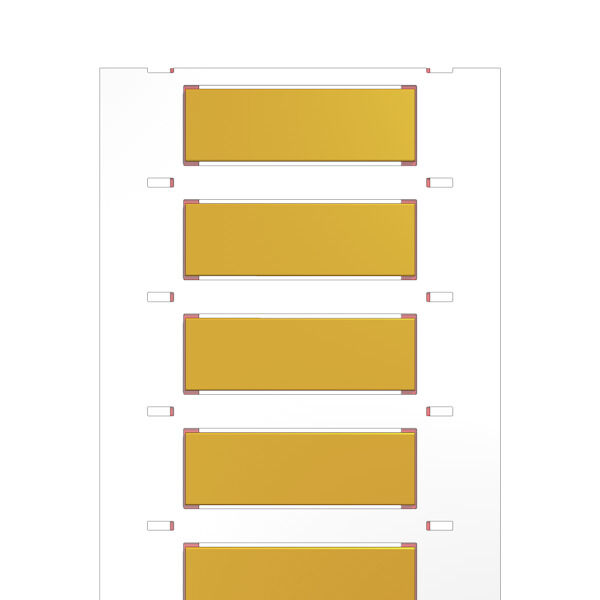

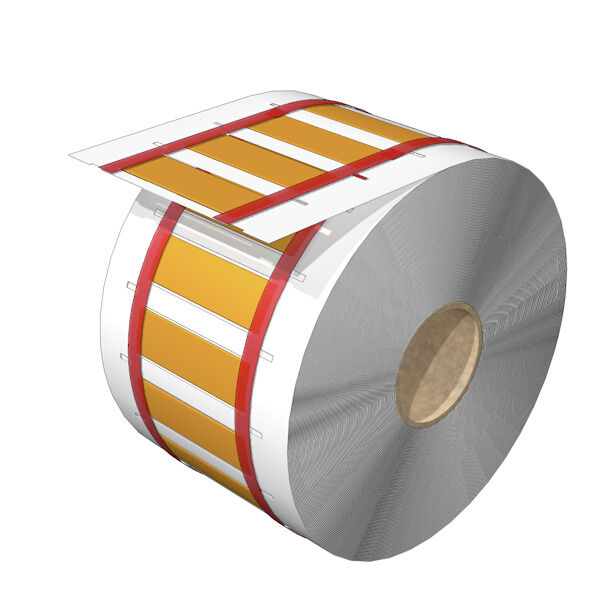

| Version | Conductor and cable markers, 4.8 - 9.5 mm, 49.8 x 15.1 mm, yellow |
| Order No. | 2621830000 |
| Type | HS-FR 4.8-9.5/50 MM Y |
| GTIN (EAN) | 4050118625219 |
| Qty. | 500 items |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Height | 49,8 mm |
| Height (inches) | 1,961 inch |
| Width | 15,1 mm |
| Width (inches) | 0,594 inch |
| Net weight | 1,166 g |
| Operating temperature range | -55...125 °C |
| Colour | yellow |
| Halogen | No |
| Material | Polyolefine |
| Operating temperature range | -55...125 °C |
| Operating temperature range, max. | 125 °C |
| Operating temperature range, min. | -55 °C |
| Size of labelling field | 15.1 x 49.8 mm |
| Width | 15,1 mm |
| Conductor cross-section, max. | 16 mm² |
| Conductor cross-section, min. | 4 mm² |
| Conductor O.D. | 4.8 - 9.5 mm |
| Conductor O.D., max. | 9,5 mm |
| Conductor O.D., min. | 4,8 mm |
| Cross-section for connected wire | 4 - 16 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 12 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2621830000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2621830000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
