Eigenschappen

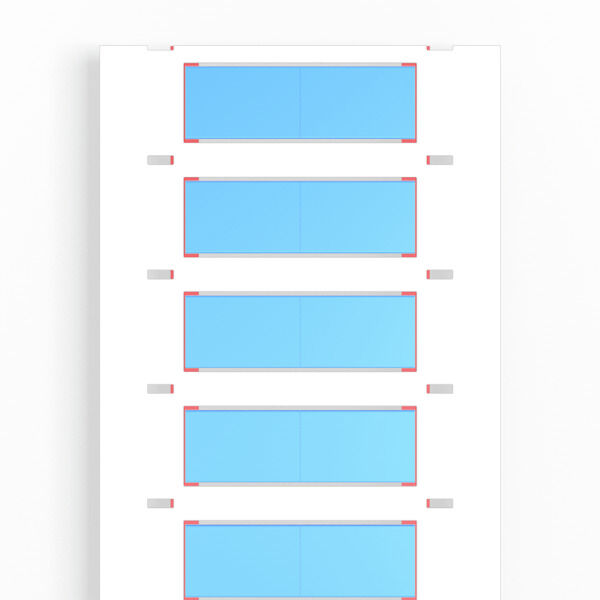

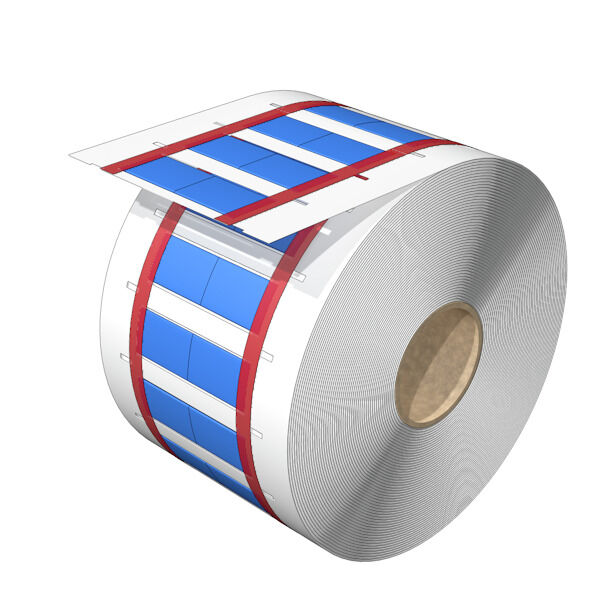

| Version | Conductor and cable markers, 4.8 - 9.5 mm, 25.4 x 15.1 mm, blue |
| Order No. | 2438080000 |
| Type | HS-HF 4.8-9.5/25 MM B |
| GTIN (EAN) | 4050118461176 |
| Qty. | 1.000 items |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Height | 25,4 mm |
| Height (inches) | 1 inch |
| Width | 15,1 mm |
| Width (inches) | 0,594 inch |
| Net weight | 0,6 g |
| Operating temperature range | -55...105 °C |
| REACH SVHC | / |
| Colour | blue |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyolefine |
| Operating temperature range | -55...105 °C |
| Operating temperature range, max. | 105 °C |
| Operating temperature range, min. | -55 °C |
| Width | 15,1 mm |
| Conductor cross-section, max. | 16 mm² |
| Conductor cross-section, min. | 4 mm² |
| Conductor O.D. | 4.8 - 9.5 mm |
| Conductor O.D., max. | 9,5 mm |
| Conductor O.D., min. | 4,8 mm |
| Cross-section for connected wire | 4 - 16 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Approval/Certificate/Document of Conformity |
[NFX 70-100-1 2006 + NF X 70-100-2 2006](https://mdcop.weidmueller.com/mediadelivery/asset/900_74683)
[BS EN ISO 4589-2 1999](https://mdcop.weidmueller.com/mediadelivery/asset/900_74685) [EN 45545-2:2020](https://mdcop.weidmueller.com/mediadelivery/asset/900_257221) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2438080000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2438080000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
