IE-C5DE4UP0200PCSPSS-E

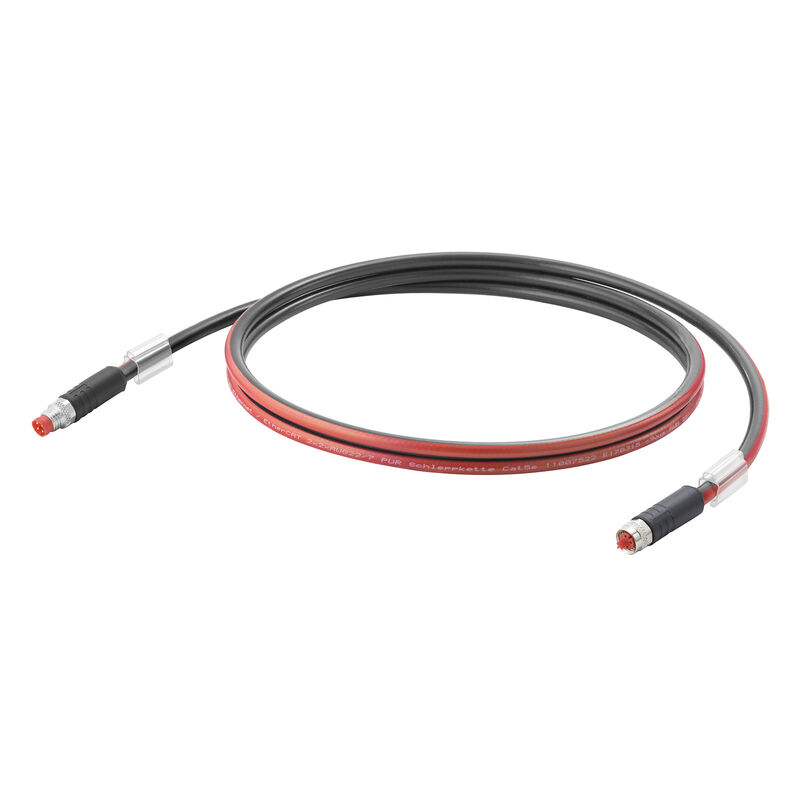

Cavi per installazione in catene portacavi, Codificato P M8 - pin diritto IP67, Codificato P M8 – presa diritta IP67, Cat. 5e, PUR, 20 m

Ürün No. 2717790200
Veri sayfasını indir Product Downloads
İlgili ürünler 50
승인 Dati generali per l’ordinazione Dimensions and weights 온도 Conformità ambientale del prodotto Technical specifications for cable General technical data Plug, left Plug, right 분류

승인

ROHS
Conform

Dati generali per l’ordinazione

Version
Cavi per installazione in catene portacavi, Codificato P M8 - pin diritto IP67, Codificato P M8 – presa diritta IP67, Cat. 5e, PUR, 20 m
Order No.
2717790200
Type
IE-C5DE4UP0200PCSPSS-E
GTIN (EAN)
4050118780413
Förp.
1 items

Dimensions and weights

Length
20 m
Длина (в дюймах)
787,402 inch
Net weight
580 g

온도

Operating temperature
-40 °C...80 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Technical specifications for cable

Bending cycles
2 Mio
Colour coding
white
yellow
blue
orange
Halogen
halogen-free, according to IEC 60754
Insulation
Polyolefin
Number of poles
4
Number of wires
4
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
Yes
Sheath material
PUR
Sheathing colour
black
Shielded
Yes
Suitable for cable carriers
No
Temperature range, moving
-30...70 °C
Temperature range, stationary
-40...80 °C
Test voltage: wire-wire-shield
1 kV DC, 1 min
1000 Veff, 50 Hz, 1 min

General technical data

Protection degree
IP67

Plug, left

Plug left
M8, P-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M8, P-coded, IP67, female contact, straight, plug, Plastic, shielded

분류

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
