Eigenschappen

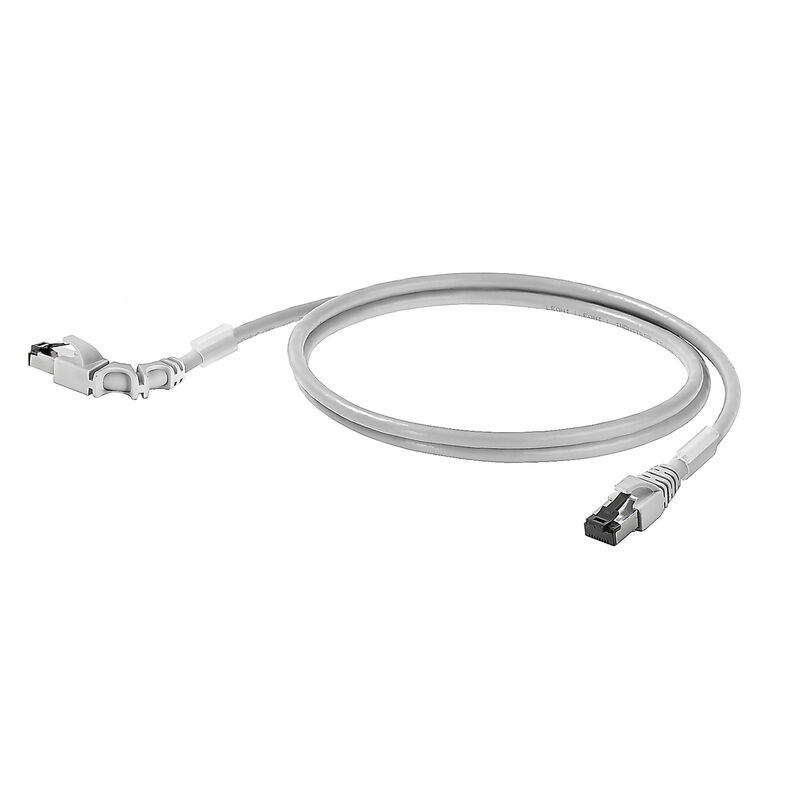

| Version | Patch cable, RJ45 IP 20, RJ45 IP 20, Angled 90° right, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.5 m |
| Order No. | 2703330015 |
| Type | IE-C6FP8LD0015M40R40-D |
| GTIN (EAN) | 4050118715460 |
| Qty. | 1 items |
| Length | 1,5 m |
| Length (inches) | 59,055 inch |
| Net weight | 70 g |
| Storage temperature | -20 °C...60 °C |
| Operating temperature | -20 °C...60 °C |
| Installation temperature | 0 °C...50 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Current-carrying capacity at 50 °C | 1 A |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Application-specific communication cable facilities |
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002 EN50173-1:2007 |
| Certificate no. (cULus) | E316369 |
| Connector standard | IEC 60603-7-51 |
| Connector standard | IEC 60603-7-51 |
| Arrangement of wire cores | Twisted pair |

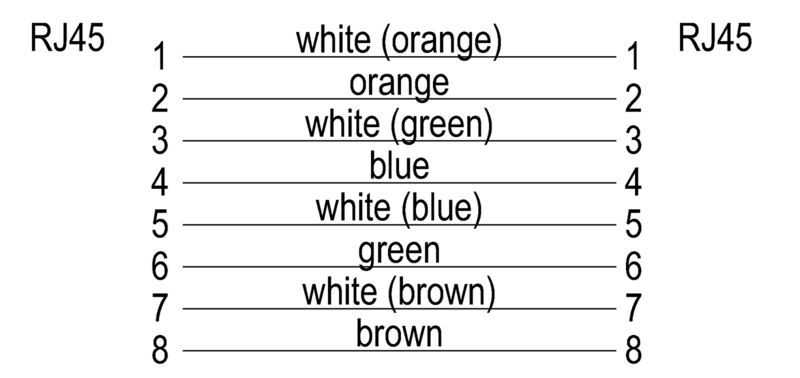

| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 27/7 - 4*2*0.1 mm² |
| Insulation | PE |
| Insulation cross-section | 1,04 mm |
| Material sheath | LSZH |
| Number of wires | 8 |
| Overlap of shielding braid | 60 % |
| Sheath diameter, max. | 5,9 mm |
| Sheath diameter, min. | 5,5 mm |
| Sheathing colour | grey |
| Shielding | S/FTP |
| Strands | 7 |
| Wire pair shielding | Aluminium foil |
| Capacity at 1 kHz | 46 nF/km |
| Category | <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010) |
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Delay skew | 2,5 ns/100m |
| Operating voltage | 50 V DC |
| Operating voltage (UL rating) | 30 V AC / 42.4 V DC |
| Resistance differential | 5 % |
| Test voltage: wire-wire-shield | 2.5 kV / DC for 2 sec |
| Colour | grey |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 4 x cable diameter |
| Resistance to spread of flame |
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2 in accordance with IEC 60332-3-24 in accordance with UL 2556 (FT1) |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, angled 90° right, plug, Plastic, shielded |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, angled 90° right, plug, Plastic, shielded |
| Approval/Certificate/Document of Conformity |
[Control - CC-Link Patchcord Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_287446)
[Field - CC-Link Patchcord Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_287447) [TSN - CC-Link Patchcord Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_287448) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_102384) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2703330015) |
| Product Change Notification |
[Technische Änderung zu der Cabinet Line (RJ45 CAT.6A Patchkabel LSZH)](https://mdcop.weidmueller.com/mediadelivery/asset/900_248235)
[Technical change to RJ45 CabinetLine (RJ45 CAT.6A Patchcable LSZH)](https://mdcop.weidmueller.com/mediadelivery/asset/900_302280) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
