Eigenschappen
| Version | FrontCom, Set |
| Order No. | 1529580000 |
| Type | IE-FC-SET-SPDED001-KN-P |
| GTIN (EAN) | 4050118334432 |
| Qty. | 1 items |

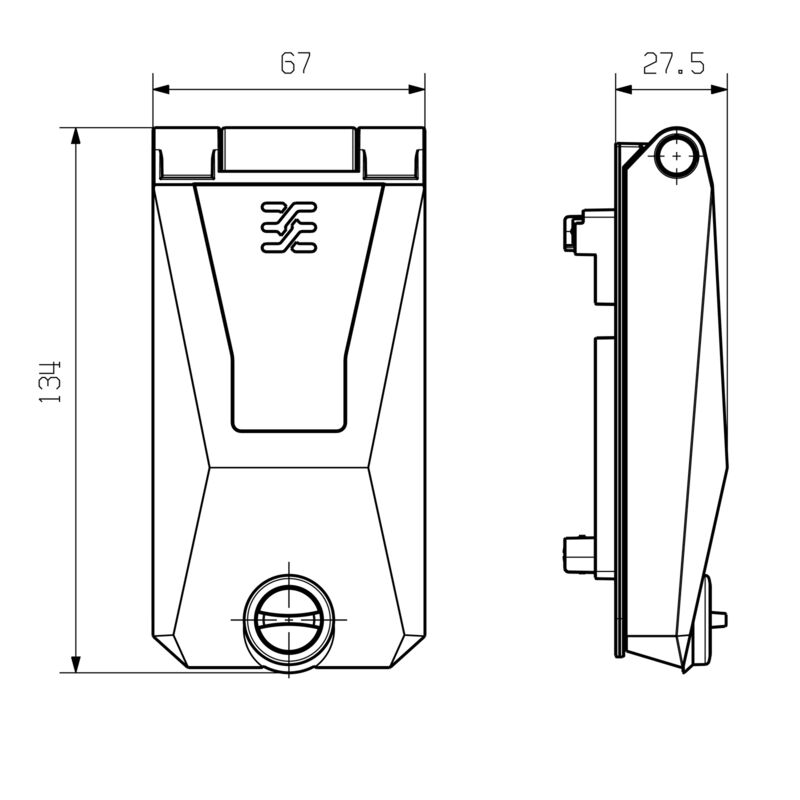

| Depth | 134 mm |
| Depth (inches) | 5,276 inch |
| Height | 40 mm |
| Height (inches) | 1,575 inch |
| Width | 67 mm |
| Width (inches) | 2,638 inch |
| Net weight | 451 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 8a473a8a-33d4-4318-8088-c28f019e7f77 |
| Material cover | Polycarbonate PC |
| Material frame | Zinc diecast |
| Product type | Set |
| Protection degree |
IP65
in closed state |
| Reference product |
|
| Data inserts |
USB 2.0 A/A
RJ45 coupling Cat.6A |
| Frame | Plastic cover |
| Insert plate |
2x data
1x power Shielded |
| Power inserts | Socket DE |
| Rated current for socket | 16 A |
| Rated voltage for socket | 250 V |
| Certificate No. (DNV) | TAA000022B |
| Approval/Certificate/Document of Conformity | [GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167197) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1529580000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-90 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| ECLASS 14.0 | 27-18-28-92 |
| Approvals |  |
| ROHS | Conform |
