Eigenschappen
| Version | SC insert, Plug SCRJ, POF |
| Order No. | 1067410000 |
| Type | IE-PI-SCRJ-POF |
| GTIN (EAN) | 4032248820870 |
| Qty. | 10 items |

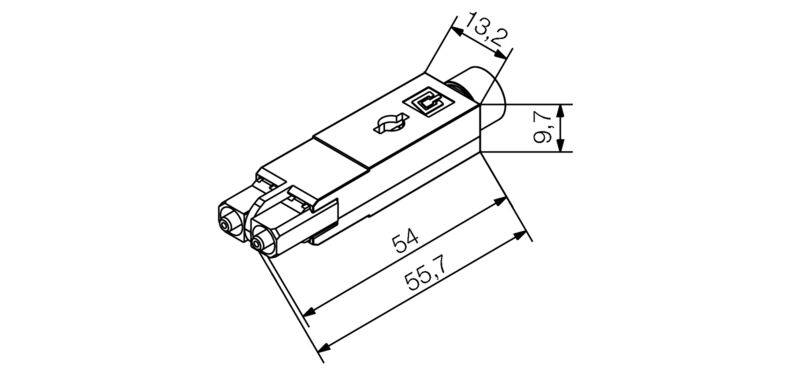

| Depth | 56 mm |
| Depth (inches) | 2,205 inch |
| Height | 10,5 mm |
| Height (inches) | 0,413 inch |
| Width | 13,2 mm |
| Width (inches) | 0,52 inch |
| Net weight | 18,7 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Colour | Miscellaneous |
| Configuration | Connector and flange insert for variant 1, 4 and 14 housings |
| Connection 1 | SCRJ |
| Connection 2 | Crimp |

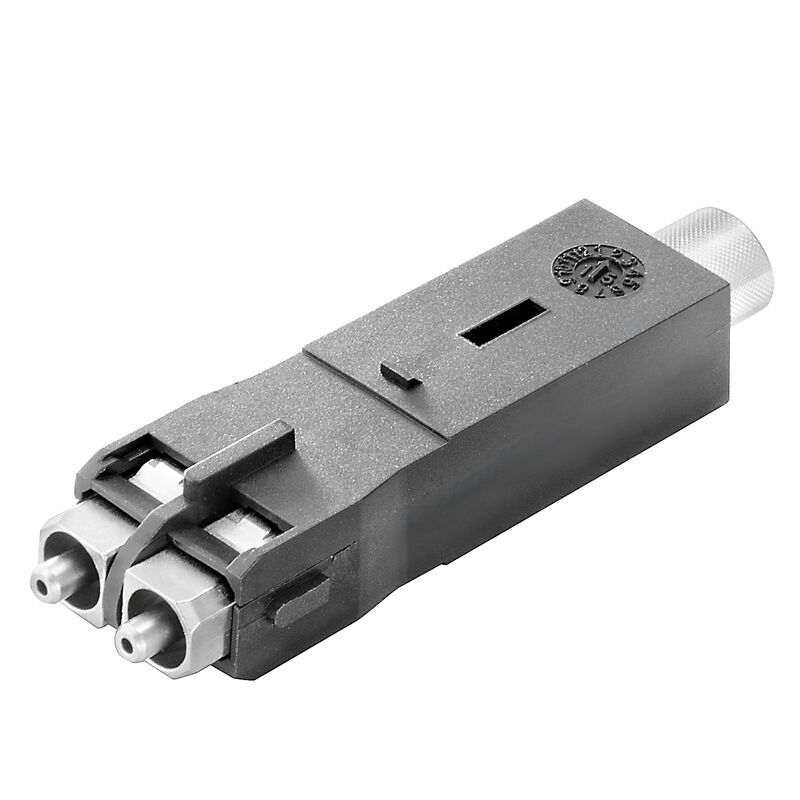

| Description of article | Plug SCRJ, POF |
| Ferrule material | Arcap |
| Fibre type | POF |
| Housing main material |
Zinc diecast
PA |
| Insertion loss | ≤ 1.0 dB |
| Plugging cycles | 1000 |
| Protection degree | IP67 with housing |
| Certificate No. (UL) | E477798 |
| Connector standard | IEC 61754-24 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_261928) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1067410000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90843) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_91231) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001122 |
| ETIM 7.0 | EC001122 |
| ETIM 8.0 | EC001122 |
| ETIM 9.0 | EC001122 |
| ECLASS 9.0 | 19-17-01-22 |
| ECLASS 9.1 | 19-17-01-22 |
| ECLASS 10.0 | 19-17-01-22 |
| ECLASS 11.0 | 19-17-01-22 |
| ECLASS 12.0 | 19-17-01-22 |
| ECLASS 13.0 | 19-17-01-22 |
| ECLASS 14.0 | 19-17-01-22 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UL) | E477798 |
