Eigenschappen
| Version | FO connector, Plug ST, multimode, IP20 |
| Order No. | 1968150000 |
| Type | IE-PS-ST-MM |
| GTIN (EAN) | 4032248667147 |
| Qty. | 1 items |

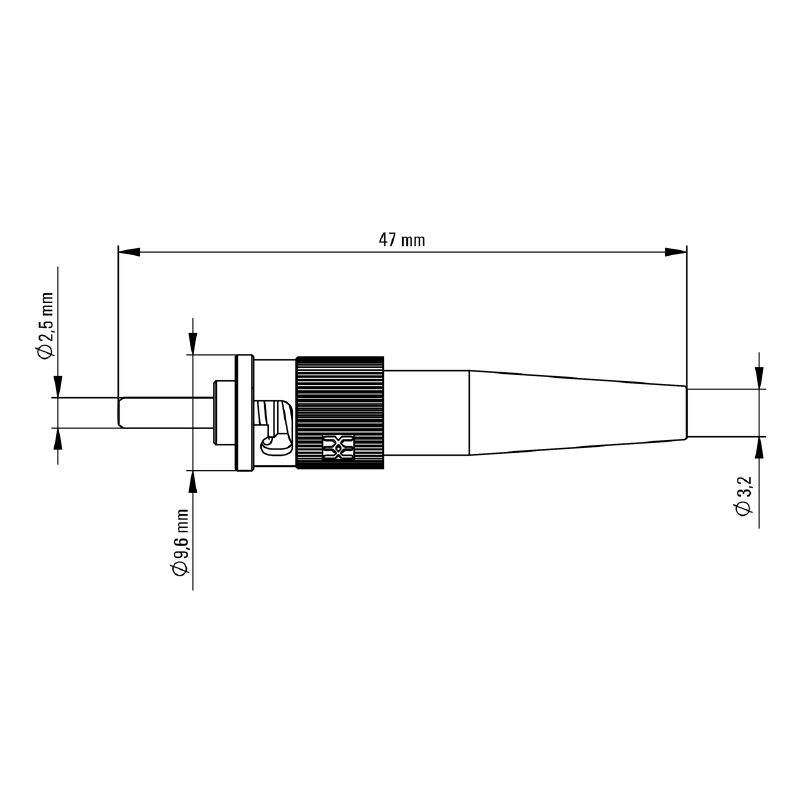

| Depth | 47 mm |
| Depth (inches) | 1,85 inch |
| Height | 9,6 mm |
| Height (inches) | 0,378 inch |
| Width | 9,6 mm |
| Width (inches) | 0,378 inch |
| Net weight | 5 g |
| Storage temperature | -40 °C...90 °C |
| Operating temperature | -20 °C...80 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9229992a-00b9-4096-8962-200a7f33e289 |
| Bending protection sleeve material | TPE |
| Cable pull-out force, min. | 100 N |
| Colour | Miscellaneous |
| Connection 1 | ST |
| Connection 2 | gluing, crimping, polishing |
| Crimp barrel material |
Copper
nickel-plated |
| Description of article | Plug ST, multimode |
| Dust protection cap material | TPE |
| Ferrule material | Zirconia |
| Fibre type |
GOF
Multimode |
| Housing main material | Zinc diecast |
| Insertion loss | ≤ 0.4 dB |
| Plugging cycles | 1000 |
| Protection degree | IP20 |
| Return loss (attenuation) | ≥ 30 dB |
| Sheath diameter, max. | 3,2 mm |
| Sheath diameter, min. | 2,6 mm |
| Connector standard | IEC 61754-2 |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001122 |
| ETIM 7.0 | EC001122 |
| ETIM 8.0 | EC001122 |
| ETIM 9.0 | EC001122 |
| ETIM 10.0 | EC001122 |
| ECLASS 9.0 | 19-17-01-22 |
| ECLASS 9.1 | 19-17-01-22 |
| ECLASS 10.0 | 19-17-01-22 |
| ECLASS 11.0 | 19-17-01-22 |
| ECLASS 12.0 | 19-17-01-22 |
| ECLASS 13.0 | 19-17-01-22 |
| ECLASS 14.0 | 19-17-01-22 |
| ECLASS 15.0 | 19-17-01-22 |
| ROHS | Conform |
