Eigenschappen

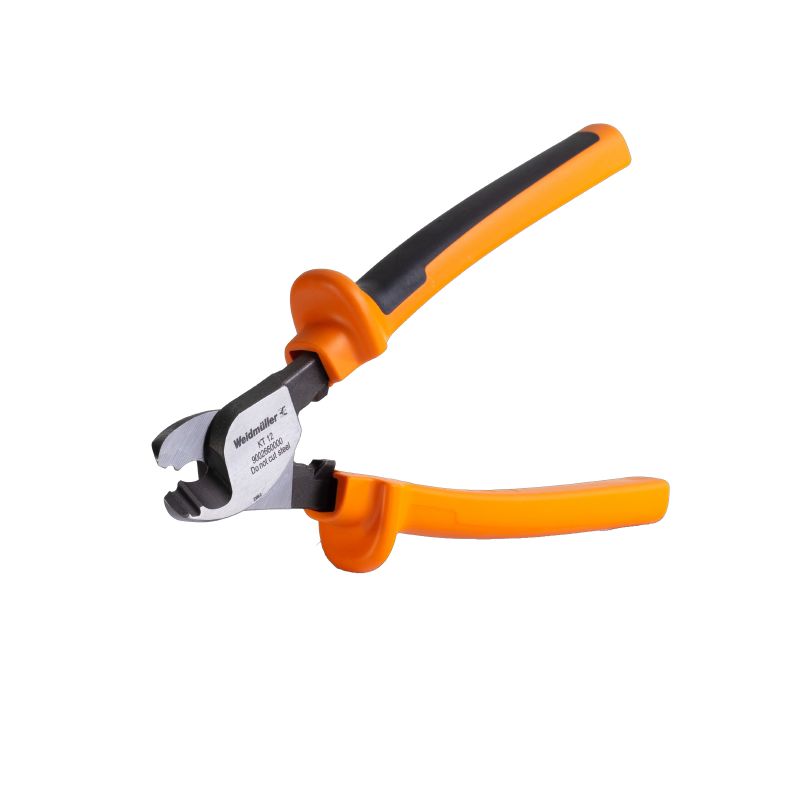

| Version | Cutting tools, Cutting tool for one-hand operation |
| Order No. | 9002660000 |
| Type | KT 12 |
| GTIN (EAN) | 4008190181970 |
| Qty. | 1 items |
| Depth | 30 mm |
| Depth (inches) | 1,181 inch |
| Height | 63,5 mm |
| Height (inches) | 2,5 inch |
| Width | 225 mm |
| Width (inches) | 8,858 inch |
| Net weight | 338,72 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| Description of article | Cutting tool for up to 12 mm outer diameter |
| Version | One-hand mechanical |
| Copper cable - flexible, max. | 50 mm² |
| Copper cable - flexible, max. (AWG) | 1 AWG |
| Copper cable - solid, max. | 95 mm² |
| Copper cable - solid, max. (AWG) | 3/0 AWG |
| Copper cable - stranded, max. | 70 mm² |
| Copper cable - stranded, max. (AWG) | 2/0 AWG |
| Copper cable, max. diameter | 11 mm |
| Data / telephone / control cable, max. Ø | 12 mm |
| Single-core aluminium cable, max.(mm²) | 95 mm² |
| Stranded aluminium cable, max (mm²) | 70 mm² |
| Stranded aluminium cable, max. (AWG) | 2/0 AWG |
| Stranded aluminium cable, max. diameter | 11 mm |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration - Cable cutters](https://mdcop.weidmueller.com/mediadelivery/asset/900_52747) |
| Product Change Notification |
[Technische Änderung für KT 8, KT 12, KT 14; KT 22](https://mdcop.weidmueller.com/mediadelivery/asset/900_316877)
[Technical change to KT 8, KT 12, KT 14; KT 22](https://mdcop.weidmueller.com/mediadelivery/asset/900_316879) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000142 |
| ETIM 7.0 | EC000142 |
| ETIM 8.0 | EC000142 |
| ETIM 9.0 | EC000142 |
| ECLASS 9.0 | 21-04-47-01 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-47-01 |
| ECLASS 11.0 | 21-04-47-01 |
| ECLASS 12.0 | 21-04-47-01 |
| ECLASS 13.0 | 21-04-47-01 |
| ECLASS 14.0 | 21-04-47-01 |
| Approvals |  |
