Eigenschappen

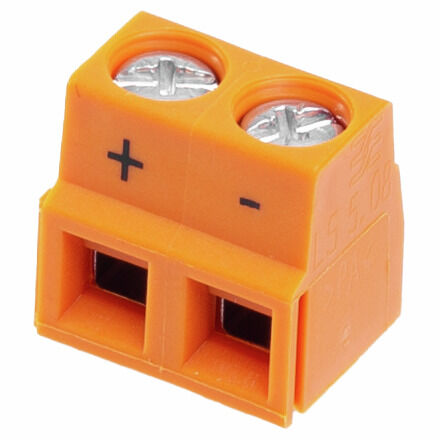

| Version | Printed circuit board terminals, block assembly, closed side, THT solder connection, 5.08 mm, Number of poles: 2, Solder pin length (l): 3.5 mm, tinned, orange, Box |
| Order No. | 3089350000 |
| Type | LS SPE 5.08/02/90 3.5SN OR BX |
| GTIN (EAN) | 4099987106504 |
| Qty. | 100 items |
| Packaging | Box |
| Depth | 8,1 mm |
| Depth (inches) | 0,319 inch |
| Height | 13,8 mm |
| Height (inches) | 0,543 inch |
| Height of lowest version | 10,3 mm |
| Width | 10,66 mm |
| Width (inches) | 0,42 inch |
| Net weight | 1,96 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| Category | T1-B |
| Mounting onto the PCB | THT solder connection |
| Number of poles | 2 |
| Number of solder pins per pole | 1 |
| Performance-Category | T1-B |
| Pitch in inches (P) | 0,2 " |
| Pitch in mm (P) | 5,08 mm |
| Protection degree | IP20 |
| Side termination, characteristic | closed side |
| Solder eyelet hole diameter (D) | 1,3 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Solder pin dimensions | 0.5 x 1.0 mm |
| Solder pin length (l) | 3,5 mm |
| Soldering process |
Manual soldering
Wave soldering |
| Insulating material | Wemid (PA) |
| Colour | orange |
| Colour chart (similar) | RAL 2000 |
| Insulating material group | I |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Contact surface | tinned |
| Layer structure of solder connection | 5...8 µm Sn |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 120 °C |
| Packaging | Box |
| VPE length | 0 mm |
| VPE width | 0 mm |
| VPE height | 0 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
| ETIM 8.0 | EC002643 |
| ETIM 9.0 | EC002643 |
| ECLASS 9.0 | 27-44-04-01 |
| ECLASS 9.1 | 27-44-04-01 |
| ECLASS 10.0 | 27-44-04-01 |
| ECLASS 11.0 | 27-46-01-01 |
| ECLASS 12.0 | 27-46-01-01 |
| ECLASS 13.0 | 27-46-01-01 |
| ECLASS 14.0 | 27-46-01-01 |
| ROHS | Conform |
