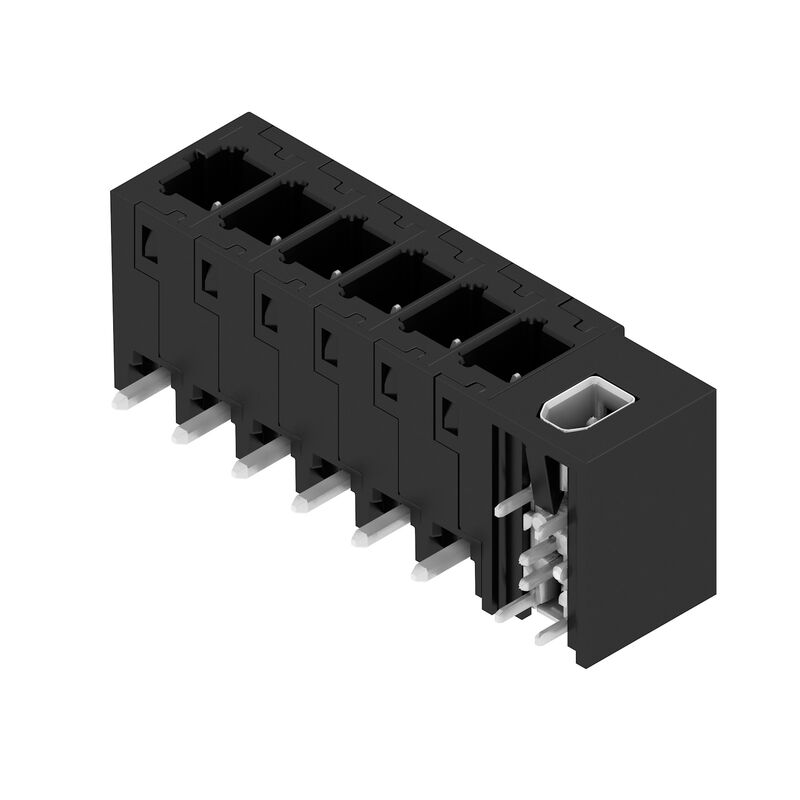

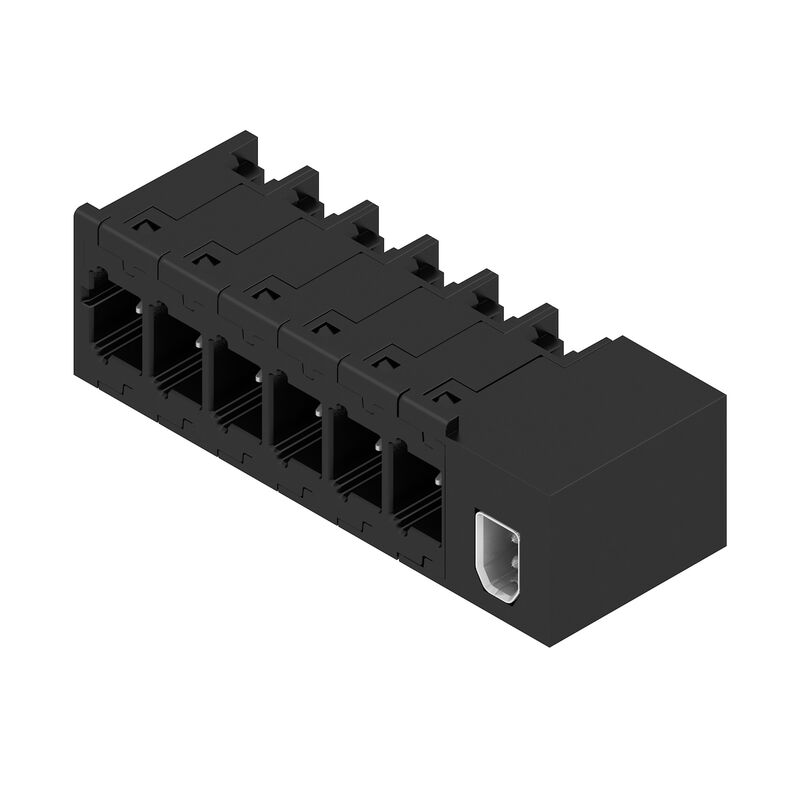

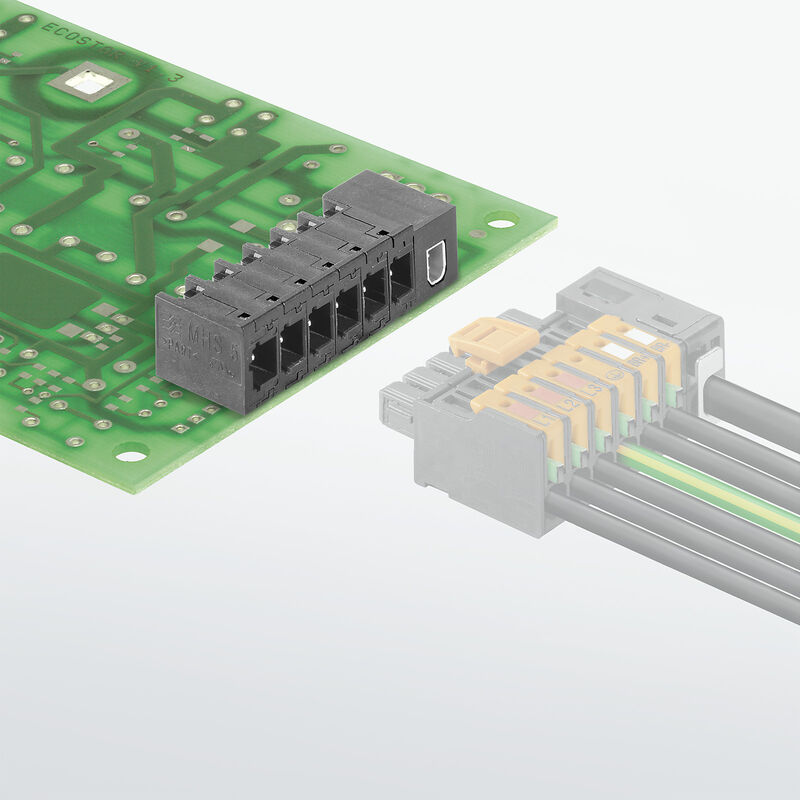

MHS 5/06 D11 H T3 B T

PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 6, 90°, Tube

Product ID 2741550000

Eigenschappen

General ordering data

Version	PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 6, 90°, Tube
Order No.	2741550000
Type	MHS 5/06 D11 H T3 B T
GTIN (EAN)	4064675055525
Qty.	13 items
Product data	IEC: 400 V / 26.8 A UL: 300 V / 18.5 A
Packaging	Tube

Dimensions and weights

Depth	14,8 mm
Depth (inches)	0,583 inch
Height	15,1 mm
Height (inches)	0,594 inch
Height of lowest version	11,9 mm
Width	39,7 mm
Width (inches)	1,563 inch
Net weight	12,277 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System specifications

Product family	OMNIMATE 4.0
Type of connection	Board connection
Mounting onto the PCB	THT/THR solder connection
Pitch in mm (P)	5 mm
Pitch in inches (P)	0,197 "
Outgoing elbow	90°
Number of poles	6
Number of solder pins per pole	1
Solder pin length (l)	3,2 mm
Solder pin dimensions	1.0 x 1.0 mm
Solder eyelet hole diameter (D)	1,4 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Outside diameter of solder pad	2,3 mm
Template aperture diameter	2,1 mm
L1 in mm	25 mm
L1 in inches	0,984 "
Number of rows	1
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 57 106	Touch-safe above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470	IP 20
Protection degree	IP20
Volume resistance	≤5 mΩ
Plugging force/pole, max.	8,5 N
Pulling force/pole, max.	8,5 N

Material data

Insulating material	PA 9T
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
Moisture Level (MSL)	1
UL 94 flammability rating	V-0
Contact base material	CuMg
Contact material	Cu-alloy
Contact surface	tinned
Tinning type	matt
Storage temperature, min.	-25 °C
Storage temperature, max.	55 °C
Operating temperature, min.	-40 °C
Operating temperature, max.	85 °C

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	26,8 A
Rated current, max. number of poles (Tu=20°C)	19,7 A
Rated current, min. number of poles (Tu=40°C)	23,1 A
Rated current, max. number of poles (Tu=40°C)	16,9 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV
Clearance, min.	4 mm
Creepage distance, min.	5,4 mm

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	300 V
Rated voltage (Use group F / UL 1059)	420 V
Rated current (Use group B / UL 1059)	18,5 A
Rated current (Use group D / UL 1059)	10 A
Clearance distance, min.	4 mm
Creepage distance, min.	5,6 mm

Technical data - hybrid (data)

Number of poles (Data)	2
Connector Standard (Data)	IEC 63171-2
Contact material (Data)	Cu
Contact surface (Data)	Ni/Au
Rated current (Data)	2 A
Rated voltage (Data)	72 V
Solder pin length (l) (Data)	2,1 mm
Solder pin dimensions (Data)	Octagonal
Tolerance of solder pin position (Data)	0,1 mm
Dielectric strength, contact / contact (Data)	≥ 1000 V DC
Dielectric strength, contact / shield (Data)	≥ 1500 V DC
Insulation strength (Data)	≥ 500 MΩ
PoE / PoE+ (Data)	PoDL acc. to IEEE 802.3bu / cg
Transmission rate (Data)	10/100 MBit/s 1000 MBit/s
Shielding (Data)	Yes

Technical data - hybrid (power)

Number of rows (Signal)

Technical data - hybrid (signal)

Number of poles (Signal)	6
Number of solder pins per pole (Signal)	1
Contact material (Signal)	CuMg
Contact surface (Signal)	tinned
Rated current (Use group B / UL 1059) (Signal)	14 A
Rated current (Use group D / UL 1059) (Signal)	10 A
Rated current, min. number of poles (Tu=20°C) (Signal)	26,8 A
Rated current, max. number of poles (Tu=20°C) (Signal)	19,7 A
Rated current, min. number of poles (Tu=40°C) (Signal)	23,1 A
Rated current, max. number of poles (Tu=40°C) (Signal)	16,9 A
Rated voltage (Use group B / UL 1059) (Signal)	300 V
Rated voltage (Use group D / UL 1059) (Signal)	300 V
Rated voltage for surge voltage class / pollution degree II/2 (Signal)	400 V
Rated voltage for surge voltage class / pollution degree III/2 (Signal)	320 V
Rated voltage for surge voltage class / pollution degree III/3 (Signal)	250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Signal)	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Signal)	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/3 (Signal)	4 kV
Volume resistance (Signal)	≤5 mΩ
Creepage distance, min. (Signal)	5,4 mm
Clearance distance, min. (Signal)	4 mm
Solder pin length (Signal)	3,2 mm
Solder pin dimensions (Signal)	1.0 x 1.0 mm
Tolerance of the diameter of the solder eyelet (Signal)	+ 0,1 mm
Diameter of solder eyelet (Signal)	1,4 mm
Outside diameter of solder pad (Signal)	2,3 mm
Template aperture diameter (Signal)	2,1 mm

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Rated current related to rated cross-section & min. No. of poles.

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Diameter of solder eyelet D = 1.4+0.1mm

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
