PB-DP SUB-D ZF

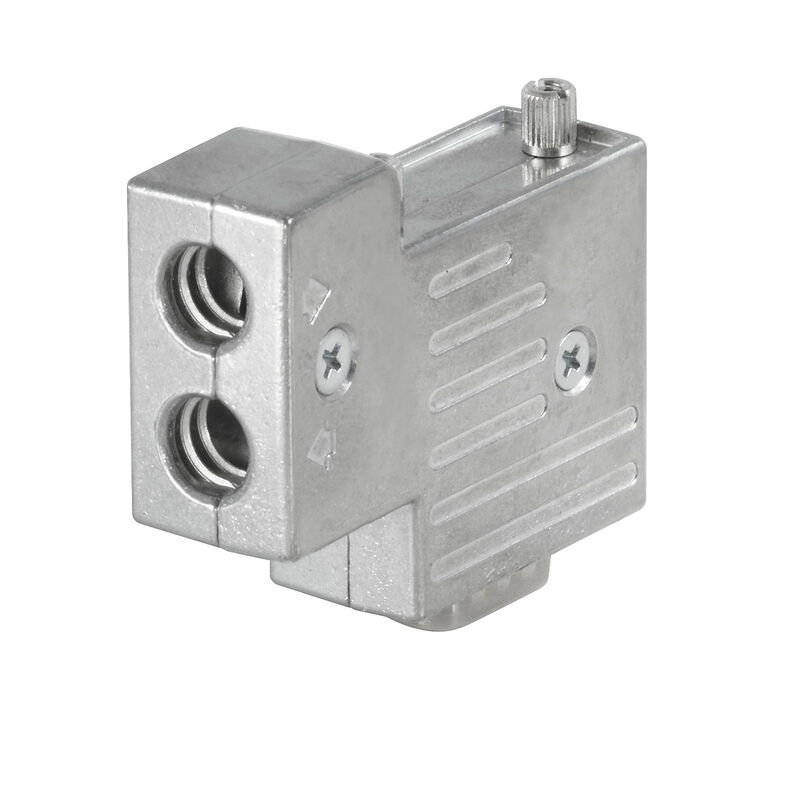

Similar to illustration

PB-DP SUB-D ZF

SUB-D

Ürün No. 1161890000
Veri sayfasını indir Product Downloads
İlgili ürünler 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technické specifikace konektoru sub-D Classifications

Approvals

ROHS
Conform

General ordering data

Version
SUB-D
Order No.
1161890000
Type
PB-DP SUB-D ZF
GTIN (EAN)
4032248951017
Qty.
1 adet

Dimensions and weights

Depth
16,8 mm
Depth (inches)
0,661 inch
Height
53,6 mm
Height (inches)
2,11 inch
Width
46 mm
Width (inches)
1,811 inch
Net weight
81,84 g

Temperatures

Humidity
Max. 75% at +25°C, non-condensing

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
Exención RoHS (si procede/conocida)
6aI
REACH SVHC
Lead 7439-92-1
SCIP
3cc1d9b1-0f2a-47ed-a501-ddcfcfaaf625

Technické specifikace konektoru sub-D

BUS Kabel-Schnittstelle
Tension clamp connection
BUS interface
D-Sub 9-pole
Pin
Data rate
12 MBit/s
Housing main material
ZnAl
Humidity
Max. 75% at +25°C, non-condensing
Interfaz de programación
No
Outgoing elbow
90°
Plugging cycles
≥ 200
Protection degree
IP30
Temperature range of housing
-20...+70 ° C
Terminating resistor available
No
Tightening torque
0,3 Nm
Vzájemné blokování
UNC4-40
Zasouvací konektor a přiřazení kontaktů
In accordance with the PROFIBUS specification

Classifications

ETIM 8.0
EC001132
ETIM 9.0
EC001132
ETIM 10.0
EC001132
ECLASS 14.0
27-44-03-02
ECLASS 15.0
27-44-03-22
