PSSRN S 24VDC 1M K 600VAC 30A T
Product image
PSSRN S 24VDC 1M K 600VAC 30A T

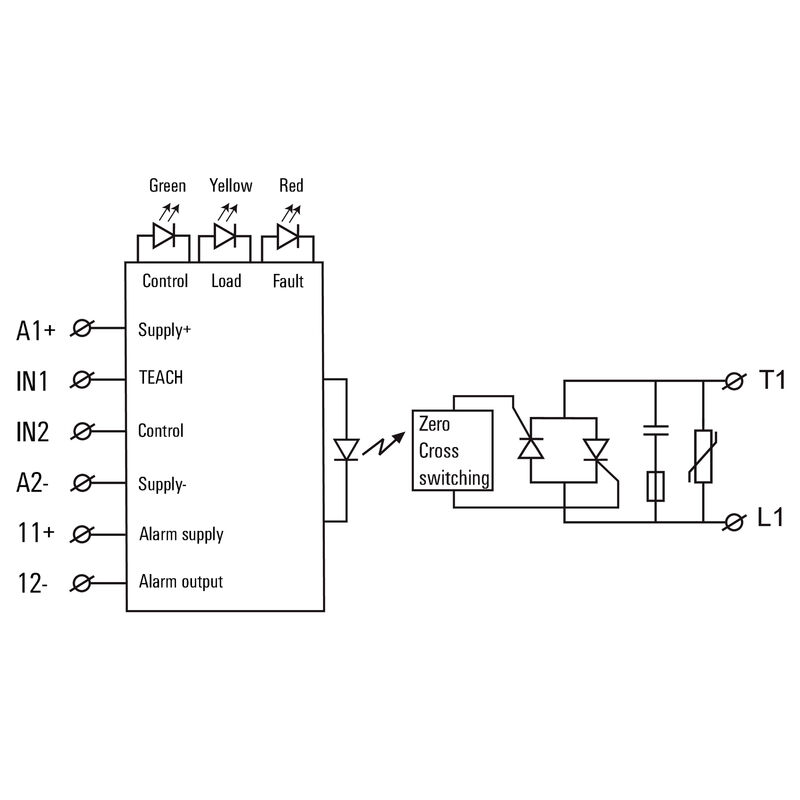

Wiring diagram
PSSRN S 24VDC 1M K 600VAC 30A T

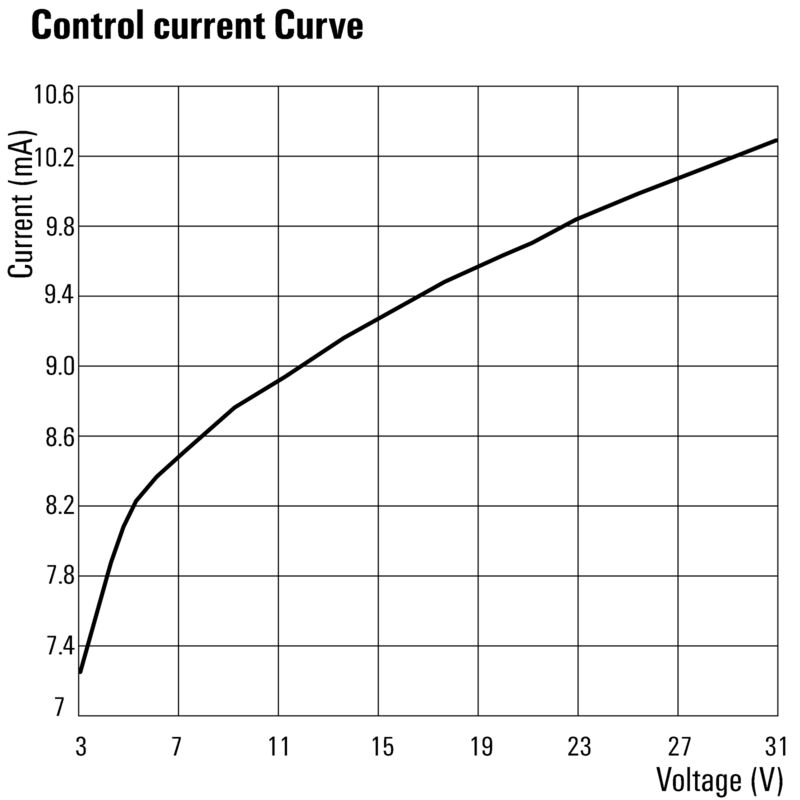

Graph

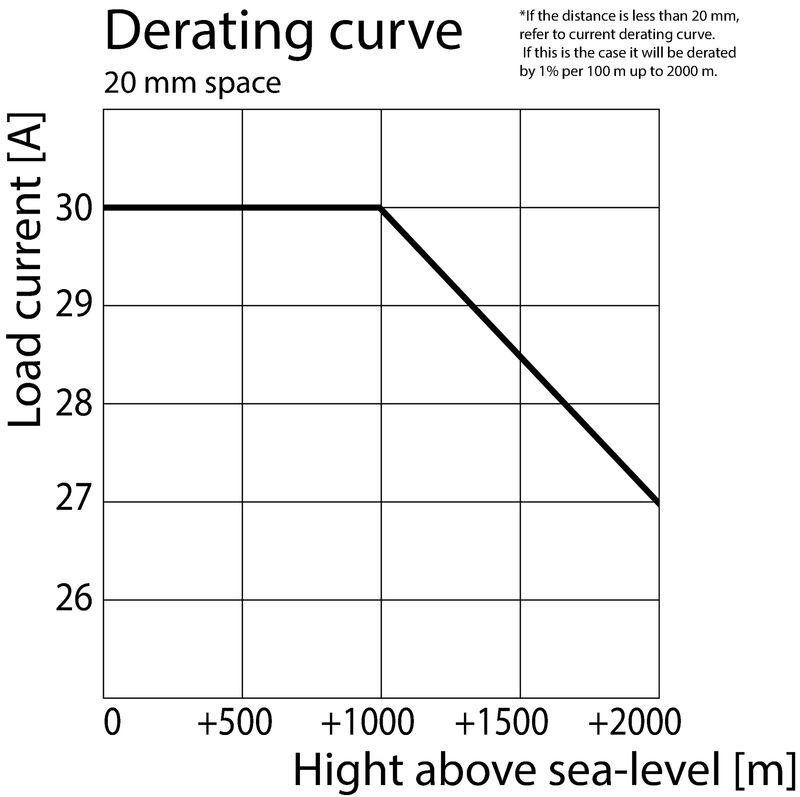

Derating curve
PSSRN S 24VDC 1M K 600VAC 30A T
Graph

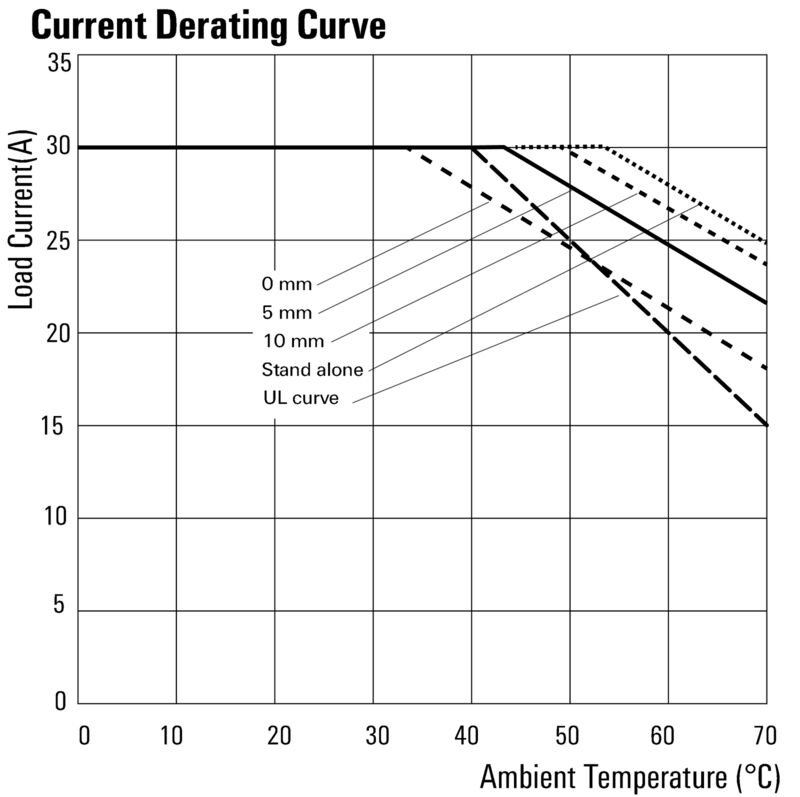

Derating curve
PSSRN S 24VDC 1M K 600VAC 30A T

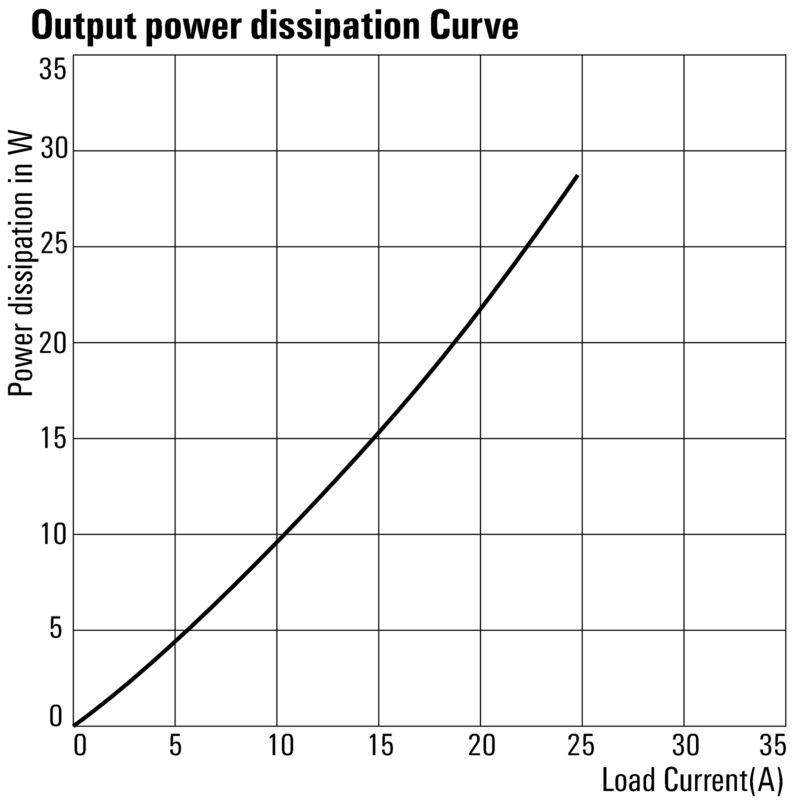

Graph
PSSRN S 24VDC 1M K 600VAC 30A T

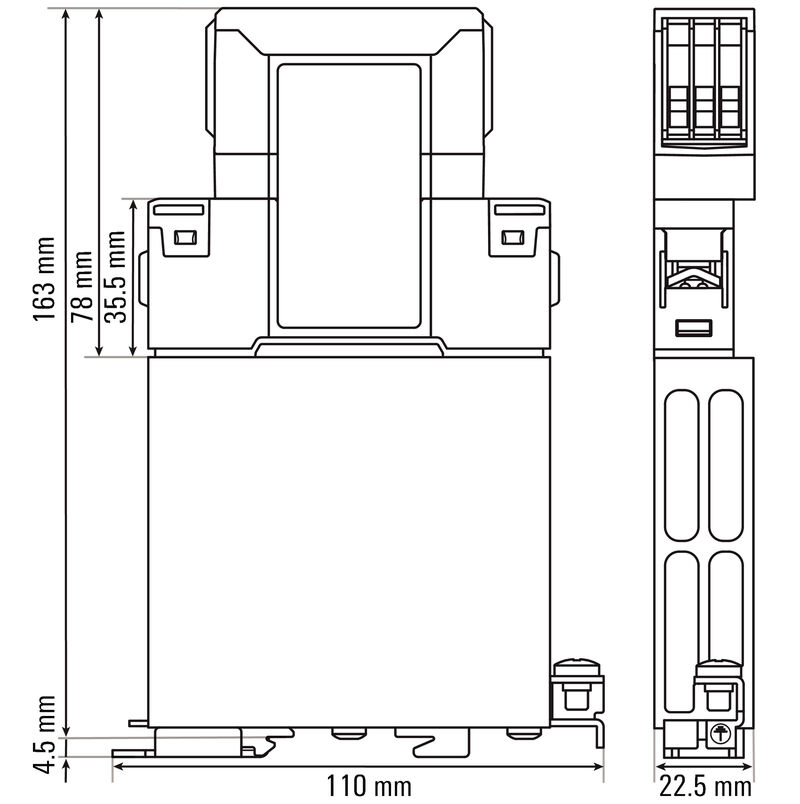

Dimensional drawing
PSSRN S 24VDC 1M K 600VAC 30A T

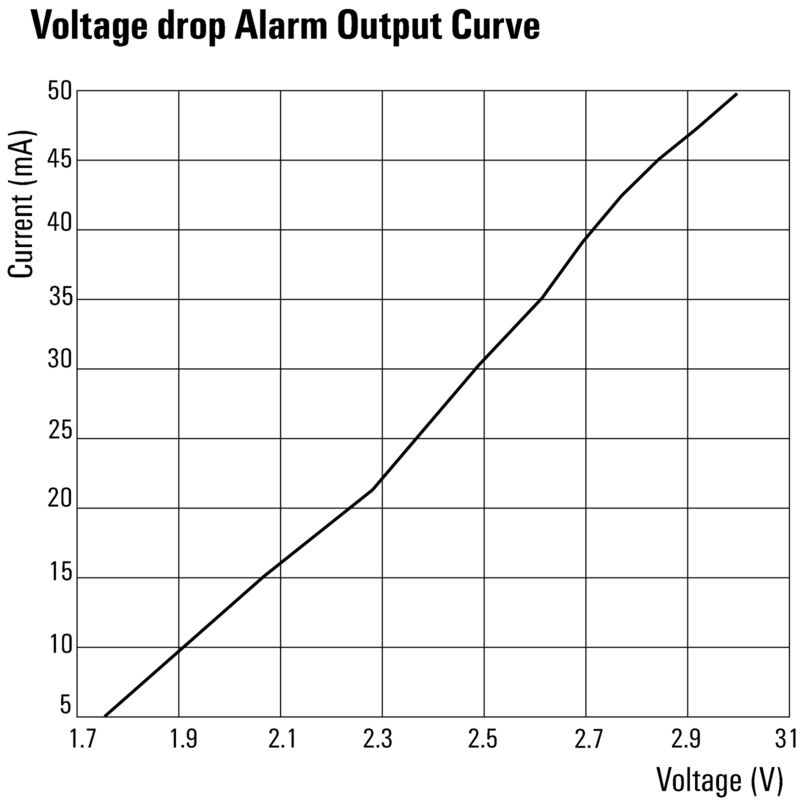

Graph
PSSRN S 24VDC 1M K 600VAC 30A T
Graph
PSSRN S 24VDC 1M K 600VAC 30A T
Miscellaneous
Type codes
PSSRN S 24VDC 1M K 600VAC 30A T
Miscellaneous
PSSRN S 24VDC 1M K 600VAC 30A T
Miscellaneous

PSSRN S 24VDC 1M K 600VAC 30A T

Power Solid-State Relais, Solid state contactor, Rated control voltage: 4…32 V DC , Rated switching voltage: 42…600 V AC +10% -15%, Continuous current: 30 A

Product ID 2986920000
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 1
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Control side Load side Alarm output TEACH input Input supply General data Insulation coordination Further details of approvals / standards Connection data (control side) Connection data (load side) Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E537615

General ordering data

Version
Power Solid-State Relais, Solid state contactor, Rated control voltage: 4…32 V DC , Rated switching voltage: 42…600 V AC +10% -15%, Continuous current: 30 A
Order No.
2986920000
Type
PSSRN S 24VDC 1M K 600VAC 30A T
GTIN (EAN)
4099986853041
Qty.
1  items

Dimensions and weights

Depth
167,5  mm
Depth (inches)
6,594  inch
Height
110  mm
Height (inches)
4,331  inch
Width
22,5  mm
Width (inches)
0,886  inch
Net weight
370  g

Temperatures

Storage temperature
-40 °C...100 °C
Operating temperature
-25 °C...70 °C
Humidity
95% relative humidity, non-condensing @ 40°C

Probability of failure

MTTF
10  a

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%

Control side

Rated control voltage
4…32 V DC
Nominal control current
7.8 mA…10.4 mA
Status indicator
Green LED
Yellow LED
Red LED

Load side

Rated switching voltage
42…600 V AC +10% -15%
Continuous current
30 A (AC 51) @ 40 °C
Max. switching current
30 A
Load category
AC 51
Pulse load, max. current
1150 A (10 ms, non-recurrent)
Load limit integral (I²t) <10 ms
6.600  A²s
Switch-on delay
≤ 10 ms
Switch-off delay
≤ 10 ms
Voltage drop at max. load
≤20 V
Leakage current
<3 mA
Min. switching current
1,2  A
Short-circuit-proof
No
Protective circuit, load side
Integrated varistor
Contact type
1 NO contacts (Thyristor (zero-cross switch))
Output voltage frequency range
45…65 Hz

Alarm output

Connection designation (Alarm output)
11+
12-
Solid-state type (Alarm output)
Bipolar transistor
Status indicator (Alarm output)
Red LED: device detects a fault
Voltage drop at max. load (Alarm output)
3  V
output current, max. (Alarm output)
50  mA

TEACH input

Connection designation (TEACH input)
IN1

Input supply

Connection designation (Input supply)
A1+
A2-
Current consumption (Input supply)
50  mA
Protective circuit (Input supply)
Reverse polarity protection

General data

Version
Single-phase with mounted heat sink (zero-voltage switch output)
Rail
TS 35
Colour
black

Insulation coordination

Pollution severity
2
Surge voltage category
III
Dielectric strength for control side - load side
2.5 kVeff
Dialectric strength of load side - housing
4 kVeff
Impulse withstand voltage
6 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cULus)
E537615

Connection data (control side)

Stripping length, control side
13  mm
Stripping length, two clampable wire, control side
6  mm
Wire connection cross-section, solid, control side, max.
2,5  mm²
Wire connection cross-section, solid, control side, max. (AWG)
AWG 18
Wire connection cross-section, solid, control side, min. (AWG)
AWG 12
Wire connection cross-section, twin wire-end ferrules, control side, max.
2,5  mm²
Wire connection cross-section, twin wire-end ferrules, control side, min.
1  mm²
Wire connection method (control side)
Box clamp connection
Min. rated connection clamping range (control side)
1  mm²
Max. rated connection clamping range (control side)
2,5  mm²
Wire connection method (control side)
M3 screw with captivated washer
Min. tightening torque (control side)
0,4  Nm
Max. tightening torque (control side)
0,5  Nm
Blade size (control side)
PZ 1

Connection data (load side)

Stripping length, load side
12  mm
Wire connection cross-section, finely stranded, two clampable wires, load side, max.
6  mm²
Wire connection cross-section, finely stranded, two clampable wires, load side, max. (AWG)
AWG 18
Wire connection cross-section, finely stranded, two clampable wires, load side, min.
1  mm²
Wire connection cross-section, finely stranded, two clampable wires, load side, min. (AWG)
AWG 10
Wire connection cross-section, solid, load side, max.
6  mm²
Wire connection cross-section, solid, load side, max. (AWG)
AWG 14
Wire connection cross-section, solid, load side, min.
2,5  mm²
Wire connection cross-section, solid, load side, min. (AWG)
AWG 10
Wire connection cross-section, stranded, load side, max.
6  mm²
Wire connection cross-section, stranded, load side, max. (AWG)
AWG 18
Wire connection cross-section, stranded, load side, min.
1  mm²
Wire connection cross-section, stranded, load side, min. (AWG)
AWG 10
Wire connection cross-section, twin wire-end ferrules, load side, max. (AWG)
AWG 18
Wire connection cross-section, twin wire-end ferrules, load side, min. (AWG)
AWG 12
Wire connection method (load side)
Screw connection
Min. rated connection clamping range (load side)
2,5  mm²
Max. rated connection clamping range (load side)
6  mm²
Wire connection method (load side)
M4 screw with captivated washer
Min. tightening torque (load side)
1,5  Nm
Max. tightening torque (load side)
2  Nm
Blade size (load side)
PZ 2

Classifications

ETIM 6.0
EC002055
ETIM 7.0
EC002055
ETIM 8.0
EC002055
ETIM 9.0
EC002055
ETIM 10.0
EC002055
ECLASS 9.0
27-37-10-14
ECLASS 9.1
27-37-10-14
ECLASS 10.0
27-37-10-14
ECLASS 11.0
27-37-10-14
ECLASS 12.0
27-37-10-14
ECLASS 13.0
27-37-10-14
ECLASS 14.0
27-37-10-14
ECLASS 15.0
27-37-10-14
