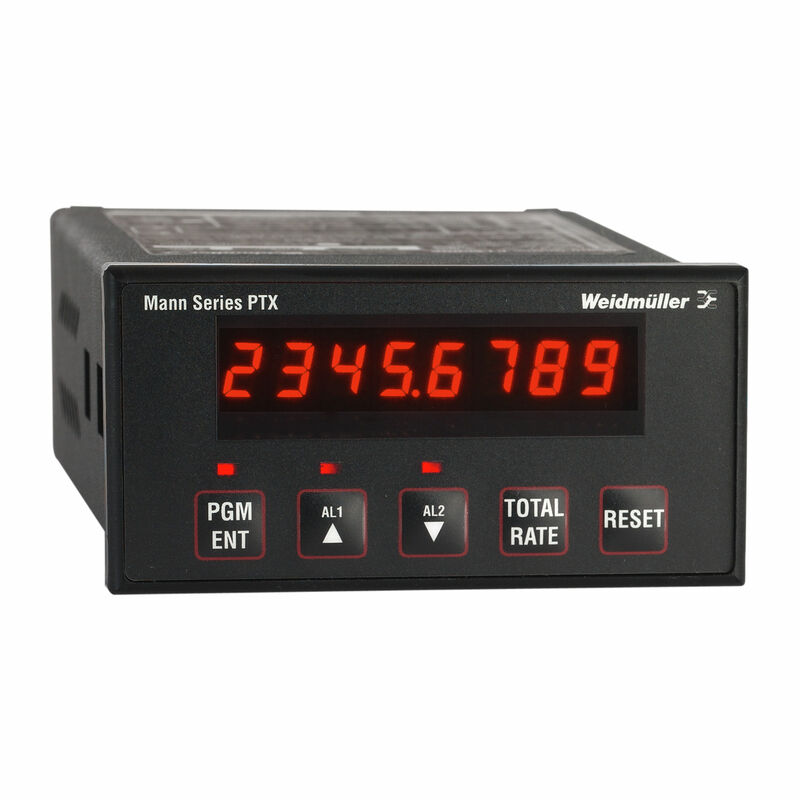

PTX800D/24VDC/RO/AO
PTX800D/24VDC/RO/AO

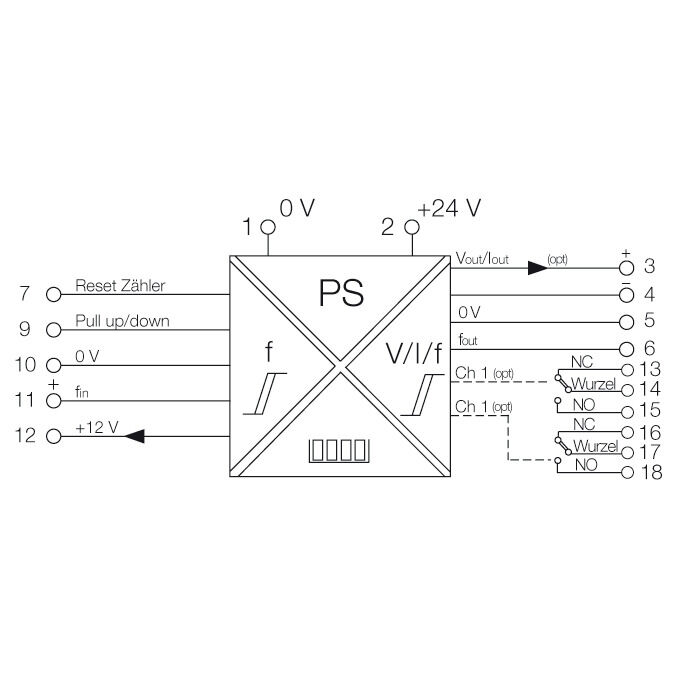

Electric symbol

PTX800D/24VDC/RO/AO

Dit product is niet meer beschikbaar.

Input: frequency, Analogue output, Relay output

Product ID 7940012323
Gegevensblad downloaden Productdownloads
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Display General data Input Output (analogue) Insulation coordination Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E256486

General ordering data

Version
Input: frequency, Analogue output, Relay output
Order No.
7940012323
Type
PTX800D/24VDC/RO/AO
GTIN (EAN)
4032248565849
Qty.
1 items
Delivery status
Discontinued
Last order date
/Date(1711580400000)/

Dimensions and weights

Height
48,8 mm
Height (inches)
1,921 inch
Width
96,6 mm
Width (inches)
3,803 inch
Length
137 mm
Length (inches)
5,394 inch
Net weight
437 g

Temperatures

Storage temperature
-25 °C...70 °C
Operating temperature
0 °C...60 °C
Humidity
10…90 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1

Display

Decimal point
Independently adjustable for partial or total display
Display value
Percentage or real value display
Time range (partial display)
per sec, min, hour (and day for PTX800A)
Total display
Display from 0...99,999,999 (8 digits)
Total display, display range
Configurable (≤ 10 pulse per signal jump)
Type
8-digit, red LED, 7.2 mm
14 adjustable brightness levels

General data

Input/Output
With analogue/alarm output
Linearity
<0.05 %
Long-term drift
0.1 % / 10.000 h
Power consumption
6 W @ 24 V DC
Supply voltage
24 V DC ± 10 %
Type of connection
Screw connection
Type of mounting
Control panel assembly

Input

Input signal
0...10 Hz
Input voltage
50 mV...250 V adjustable
Min. pulse duration (reset input)
100 ms
Sensor supply
12 V DC to 25 mA
Type
Digital pulse (NAMUR, PNP/NPN, TTL logic, optocoupler, voltage pulse, no-voltage contacts)

Output (analogue)

Type (analogue output)
Current of voltage output, configured with jumper

Insulation coordination

EMC standards
DIN EN 61326
Impulse withstand voltage
4 kV (1.2/50 µs)

Connection data

Type of connection
Screw connection
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²

Classifications

ETIM 8.0
EC000677
ETIM 9.0
EC000677
ETIM 10.0
EC000677
ECLASS 14.0
27-14-31-10
ECLASS 15.0
27-14-31-10
