RCLS3T024W
TERMSERIES, Relay, Number of contacts: 1, NO contact AgSnO + W, Rated control voltage: 24 V DC, Continuous current: 16 A, Plug-in connection, Test button available: No
Eigenschappen
| Version | TERMSERIES, Relay, Number of contacts: 1, NO contact AgSnO + W, Rated control voltage: 24 V DC, Continuous current: 16 A, Plug-in connection, Test button available: No |
| Order No. | 8866920000 |
| Type | RCLS3T024W |
| GTIN (EAN) | 4032248606528 |
| Qty. | 20 items |

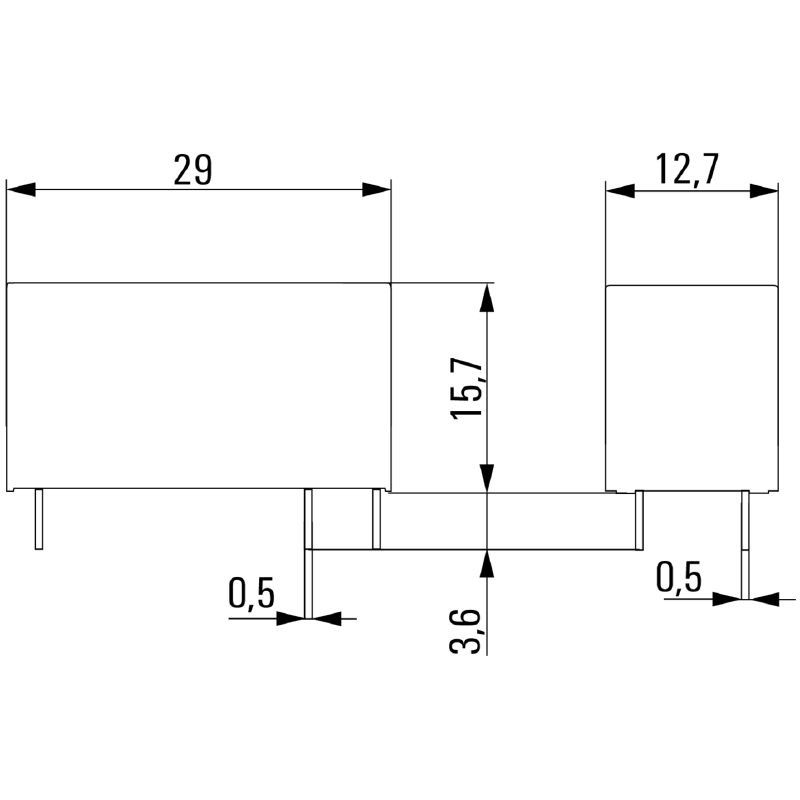

| Depth | 15,7 mm |
| Depth (inches) | 0,618 inch |
| Height | 29 mm |
| Height (inches) | 1,142 inch |
| Width | 12,7 mm |
| Width (inches) | 0,5 inch |
| Net weight | 15,15 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E522350 |
| Rated control voltage | 24 V DC |
| Rated current DC | 16.7 mA |
| Power rating | 400 mW |
| Status indicator | No |
| Rated switching voltage | 250 V AC |
| Continuous current | 16 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Min. switching power | 1 W |
| Inrush current |
165 A / 20 ms
800 A / 200 µs |
| AC switching capacity (resistive), max. | 4000 VA |
| DC switching capacity (resistive), max. | 384 W @ 24 V |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 6 ms |

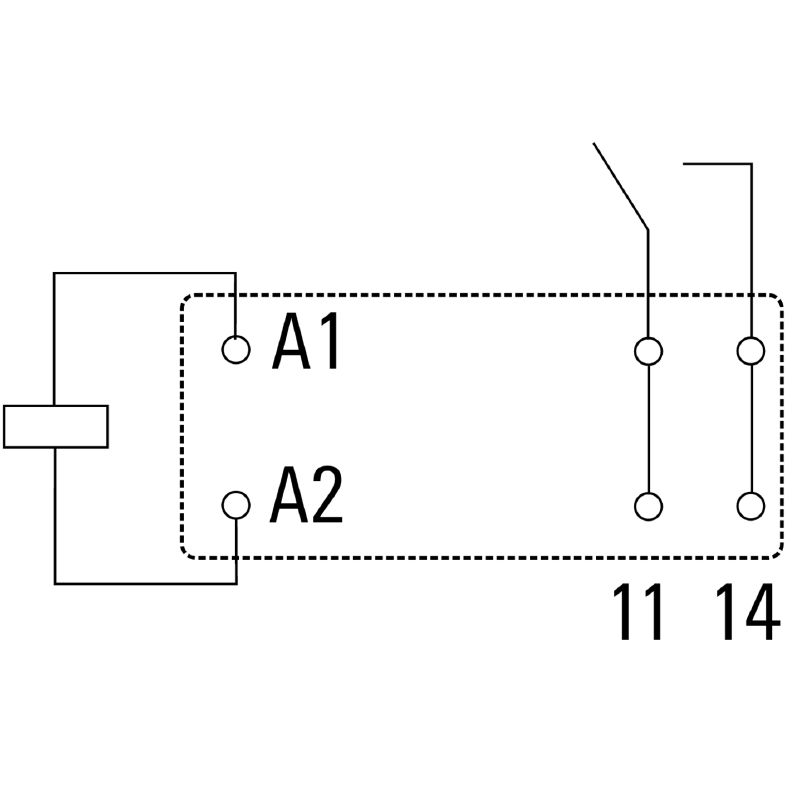

| Contact type | 1 NO contact (AgSnO + W) |
| Mechanical service life | 5 x 106 switching cycles |
| Test button available | No |
| Mechanical switch position indicator | No |
| Colour | white |
| UL 94 flammability rating | V-0 |
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 10 mm |
| Dielectric strength for control side - load side | 5 kVeff / 1min |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Protection degree | IP20 |
| Certificate No. (CSA) | 249409-2426937 |
| Certificate No. (VDE) | 40020589 |
| Certificate No. (cURus) | E522350 |
| Wire connection method | Plug-in connection |
| Pitch in mm (P) | 5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66718) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8866920000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8866920000) |
| User Documentation | [FL_TERMSERIES_RCL1NOInrush+Tungsten_LOAD_GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_306019) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E522350 |
