Eigenschappen

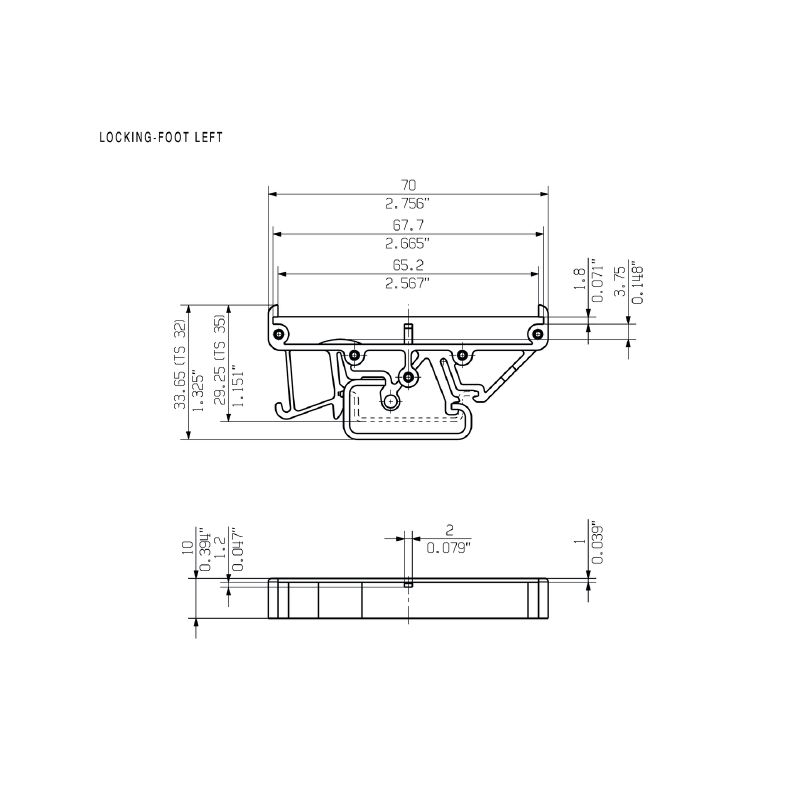

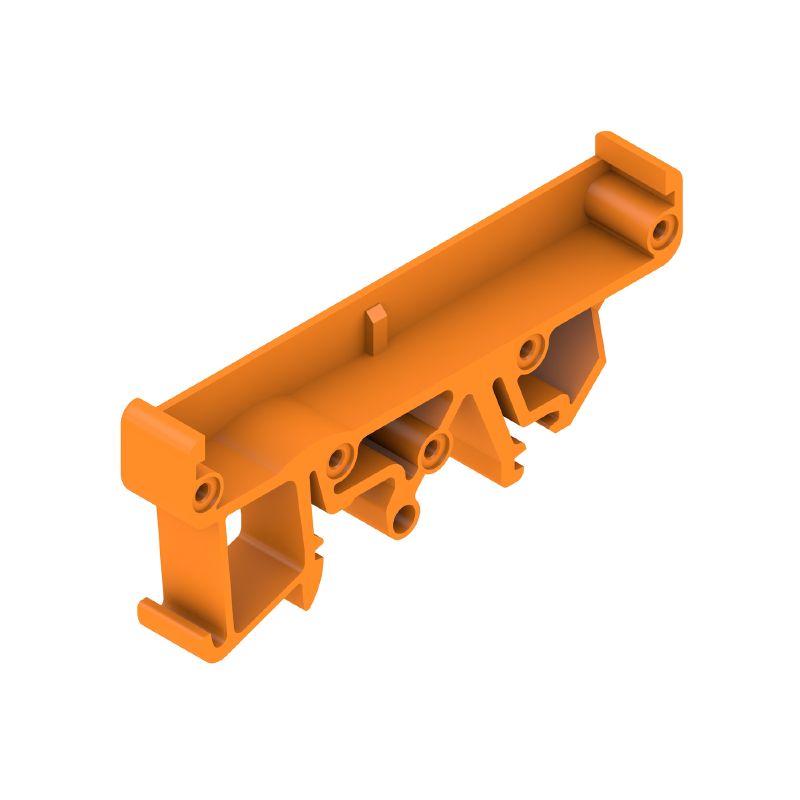

| Version | Clip-in foot, RS 70 orange, End plate DIN mounting rail left, Width: 10 mm |
| Order No. | 0119660000 |
| Type | RF RS 70 LI/A2/O.SG OR 1665 |
| GTIN (EAN) | 4008190096106 |
| Qty. | 20 items |
| Depth | 28,6 mm |
| Depth (inches) | 1,126 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Height of lowest version | 32 mm |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Net weight | 5,045 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 |
| UL 94 flammability rating | V-2 |
| Colour | orange |
| Colour chart (similar) | RAL 2000 |
| Encapsulation option | No |
| Protection degree | IP00 |
| Rail |
TS 32
TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_100845) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0119660000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC002779 |
| ETIM 8.0 | EC002779 |
| ETIM 9.0 | EC002779 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-02 |
| ECLASS 14.0 | 27-19-06-02 |
| ROHS | Conform |
