Eigenschappen

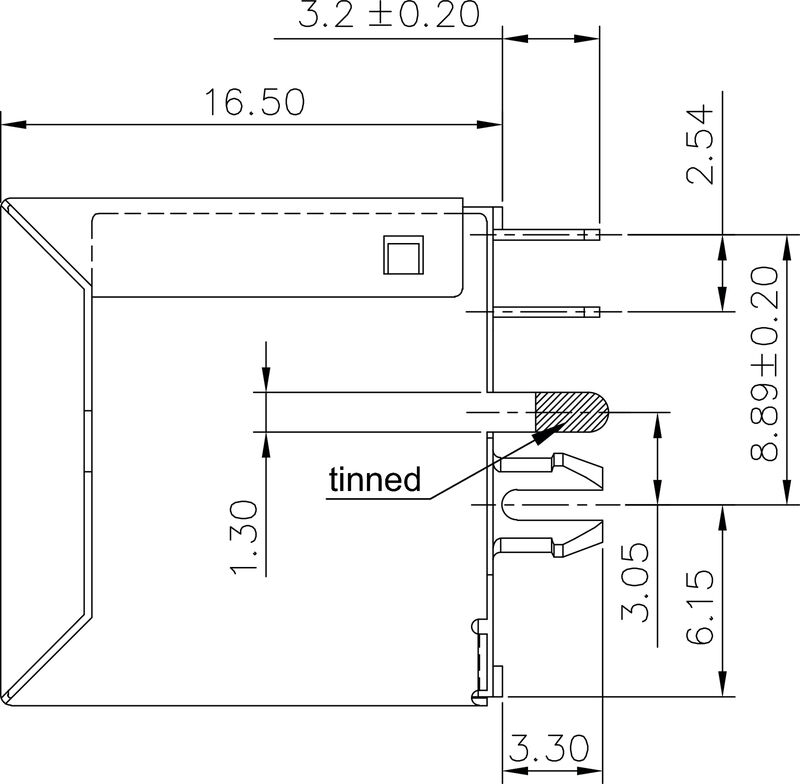

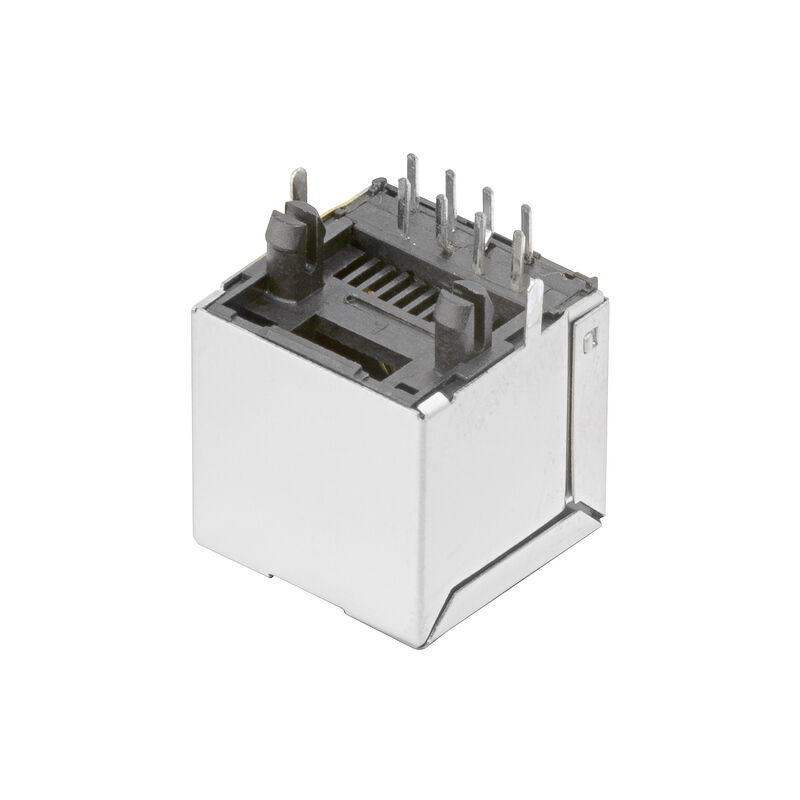

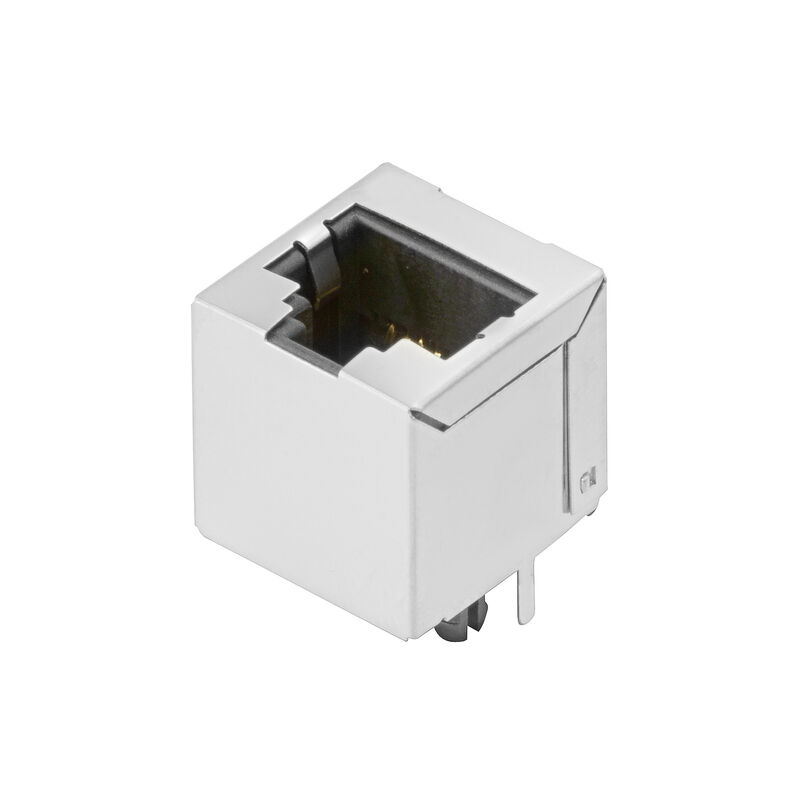

| Version | PCB plug-in connector, RJ45 jacks, Cat. 6 , THT/THR solder connection, 180°, LED: No, Number of poles: 8, Tray (manual assembly) |
| Order No. | 2634590000 |
| Type | RJ45C6 R1V 3.2N4N TY |
| GTIN (EAN) | 4050118651270 |
| Qty. | 140 items |
| Packaging | Tray (manual assembly) |
| Depth | 16,7 mm |
| Depth (inches) | 0,657 inch |
| Height | 16,5 mm |
| Height (inches) | 0,65 inch |
| Width | 16 mm |
| Width (inches) | 0,63 inch |
| Net weight | 7,475 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | Cat. 6 |
| LED | No |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 8 |
| Outgoing elbow | 180° |
| Performance-Category | Cat. 6 |
| Pitch in inches (P) | 0,05 " |
| Pitch in mm (P) | 1,27 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 modular jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shielding | Yes |
| Solder pin dimensions | Octagonal |
| Solder pin length (l) | 3,2 mm |
| Soldering process |
Reflow soldering
Manual soldering Wave soldering |
| Tolerance of solder pin position | ± 0.1 mm |
| Type of connection | Solder connection |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Insulation strength | ≥ 500 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Rated voltage | 125 V |
| Insulating material | PA 9T |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulation strength | ≥ 500 MΩ |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| Packaging | Tray (manual assembly) |
| VPE length | 317 mm |
| VPE width | 188 mm |
| VPE height | 68 mm |
| Approval/Certificate/Document of Conformity | [Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304861) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2634590000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
