Eigenschappen

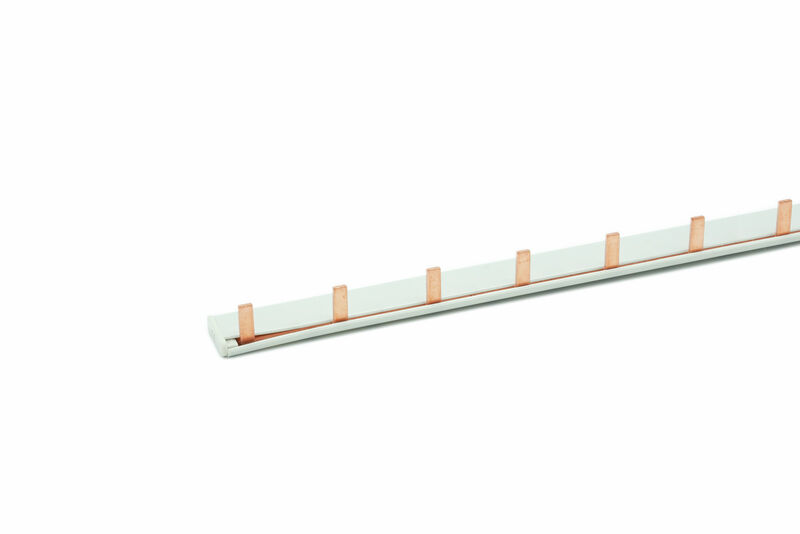

| Version | Phase busbar (Terminals), 80, Number of poles: 37, Insulated: Yes, 16 |
| Order No. | 2658080000 |
| Type | S-1L-27-1000/16 |
| GTIN (EAN) | 4050118672442 |
| Qty. | 50 items |
| Depth | 16,8 mm |
| Depth (inches) | 0,661 inch |
| Height | 15,5 mm |
| Height (inches) | 0,61 inch |
| Width | 1.016 mm |
| Width (inches) | 40 inch |
| Net weight | 42 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 27 mm |
| Number of poles | 37 |
| Rated cross-section | 16 mm² |
| Rated voltage | 400 V |
| Rated current | 80 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165191) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304883) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2658080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2658080000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 9.0 | EC000215 |
| ECLASS 11.0 | 27-37-13-06 |
| ECLASS 12.0 | 27-37-13-06 |
| ECLASS 13.0 | 27-37-13-06 |
| ECLASS 14.0 | 27-37-13-06 |
| Approvals |  |
| ROHS | Conform |
