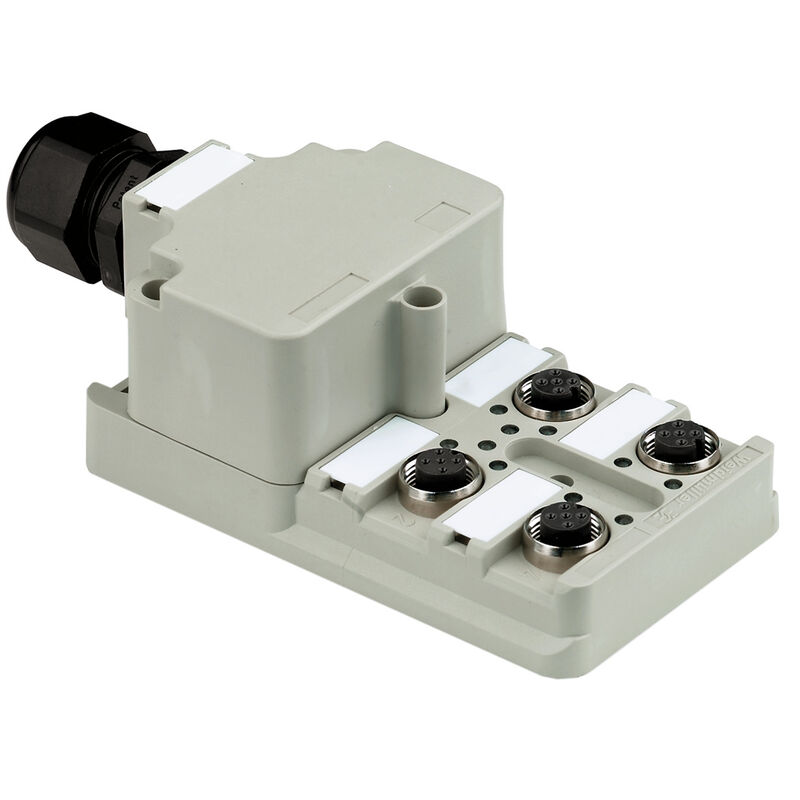

Similar to illustration
SAI-4-M 5P M12 1:1

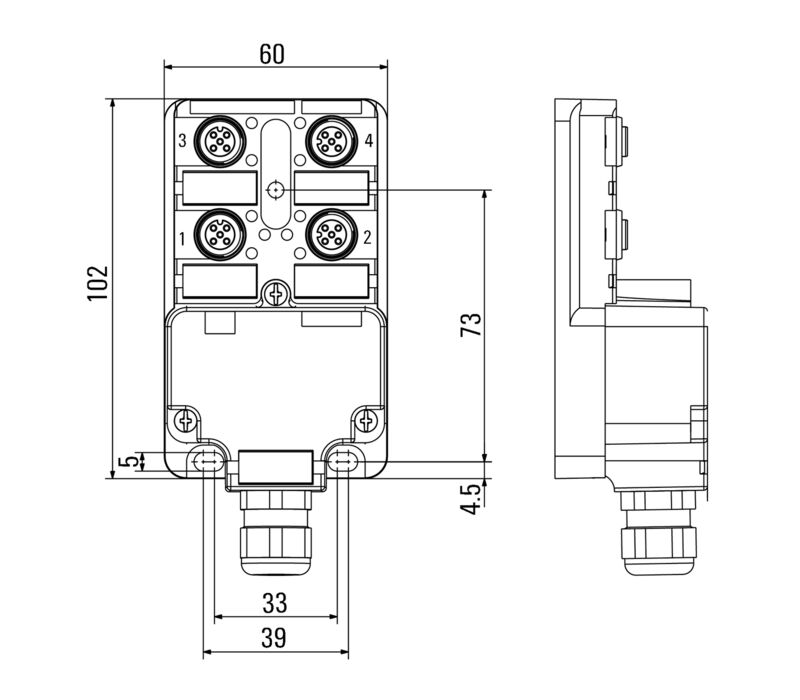

Dimensioned drawing
SAI-4-M 5P M12 1:1

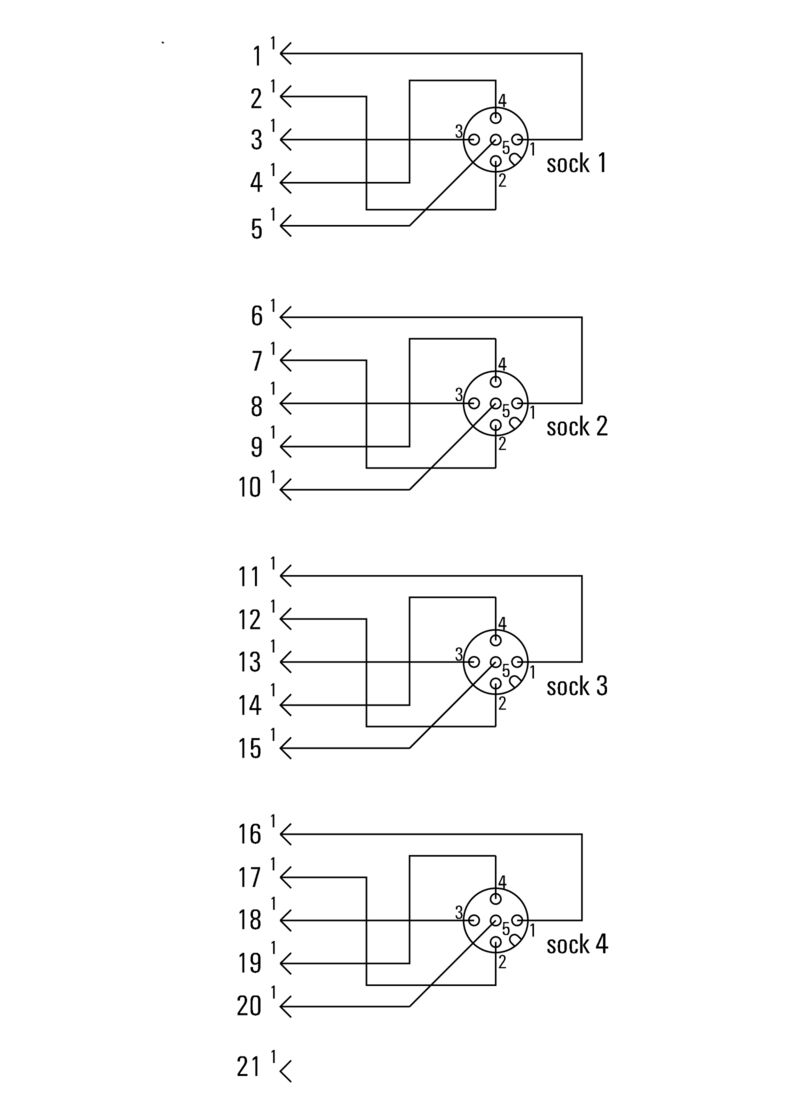

Wiring diagram

SAI-4-M 5P M12 1:1

Hood distributor, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1

Ürün No. 1806010000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 İlgili ürünler 30
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E141197

General ordering data

Version
Hood distributor, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1
Order No.
1806010000
Type
SAI-4-M 5P M12 1:1
GTIN (EAN)
4032248275120
Qty.
1 adet

Dimensions and weights

Depth
102 mm
Depth (inches)
4.016 inch
Height
41.5 mm
Height (inches)
1.634 inch
Width
60 mm
Width (inches)
2.362 inch
Net weight
190.9 g

Temperatures

Operating temperature
-20 - 90°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

最小电缆外径
6 mm
Zewnętrzna średnica przewodu, maks.
12 mm
Zakres zaciskania, min.
0.08 mm²
Zakres zaciskania, maks.
1.5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0.2 mm²
Solid, max. H05(07) V-U
1.5 mm²
Flexible, min. H05(07) V-K
0.2 mm²
Flexible, max. H05(07) V-K
1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1.5 mm²
ładownia
Standard
Fördelarutgång
Hood distributor

Electrical data

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Test voltage
1 kV
슬롯당 최대 전류 전달 용량
4 A
Total current
8 A
prąd na sygnał
2 A
Spänningseparering finns
Yes
Insulation resistance
109 Ω

General technical data

Plug-in station coding
A-coded
Protection degree
IP67
Liczba biegunów
5
Number of contact sockets
4
Connection thread
M12
Pollution severity
3
Metoda wypalania
V-0
Cykle wpinania
≤ 50
LED
No
czujnik bezdotykowy LED
No

Material data

Housing main material
Pocan
Material of distributor
Plastic
Housing colour
grey, RAL 7032
materiał uszczelniający pokrywę
Viton
Screw socket
Nickel-plated CuZn
Materiał styków
CuZn
접점 표면
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Conductor O.D., max.
12 mm
Number of poles
5
Zewnętrzna średnica przewodu, min.
6 mm
Suitable for cable carriers
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
