SAIL-M12G-4-3.0U
SAIL-M12G-4-3.0U
Detailed drawing
Male, straight
SAIL-M12G-4-3.0U
Pole scheme
M12 = A-coded
SAIL-M12G-4-3.0U
Wiring diagram
SAIL-M12G-4-3.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12G-4-3.0U

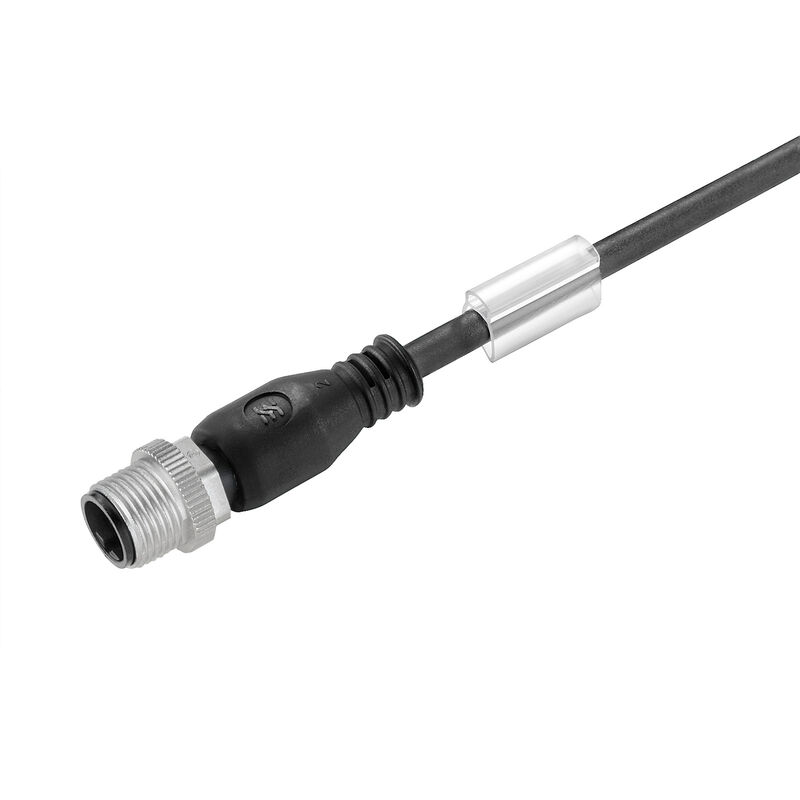

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 3 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 9456100300
Download data sheet Engineering Support Product Downloads
Accessories 7 Related products 20
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 3 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9456100300
Type
SAIL-M12G-4-3.0U
GTIN (EAN)
4032248285716
Qty.
1 items

Dimensions and weights

Net weight
88.88 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Bending radius, min., stationary
5 x cable diameter
Cable length
3 m
Ciclos de flexión
12 Mio
Core cross-section
0.34 mm²
Halogen
No
Hegesztési szikrákkal szembeni ellenállás
No
Hidrolízis és mikróba-ellenálló
Yes
Izolace
PP
Keresztkötéses irradiáció
No
Konfigurálható kábelhossz
No
Köpeny anyaga
PUR
Külső bevonat az UL AWM stílusnak megfelelően
20549 (80 °C / 300 V)
LABS-mentes
Yes
Length of torsion
1 m
Number of poles
4
Number of wires
4
Odporne na ściegi spawalnicze
No
Outside diameter
4.1 mm + 0.15 mm
Radio de flexión mín., con movimiento
10 x cable diameter
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sheathing colour
black (similar to RAL 9005)
Stíněný
No
Suitable for cable carriers
Yes
Színkód gyűrű
brown
white
blue
black
Temperature range, stationary
-50...80 °C
Temperaturområde, rörligt
-25...60 °C
Vitesse
3.33 m/s
Zrychlení
5 m/s²
Ér, az UL AWM stílusnak megfelelően
10493 (80 °C / 300 V)
Циклы изгиба при скручивании
> 5 Mio.
비틀림 저항
180 °/m

General technical data

Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
