SAIL-M12GM12W-3-10T

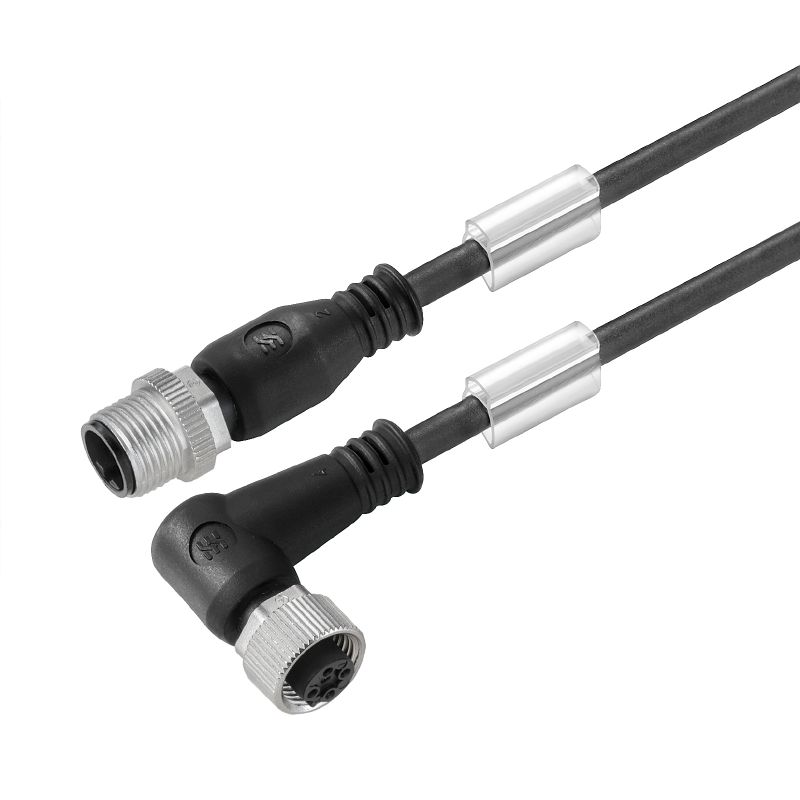

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 10 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1021721000

Eigenschappen

General ordering data

Version	Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 10 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	1021721000
Type	SAIL-M12GM12W-3-10T
GTIN (EAN)	4032248735365
Qty.	1 items

Dimensions and weights

Net weight

257,84 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration	5 m/s²
Bending cycles	10 Mio
Bending radius, min., moving	7.5 x cable diameter
Bending radius, min., stationary	4 x cable diameter
Cable length	10 m
Colour coding	brown blue black
Configurable cable length	Yes
Core cross-section	0,34 mm²
Halogen	No
Insulation	PP
Irradiation crosslinked	No
Number of poles	3
Outer cladding in accordance with UL AWM style	20233 (80 °C / 300 V)
Outside diameter	4.9 mm ± 0.2 mm
Resistant to welding beads	Yes
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	200 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-30...105 °C
Temperature range, stationary	-40...105 °C
Torsion resistance	360 °/m
Welding spark resistance	Yes

General technical data

Coding	A-coded
Connection thread	M12 / M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP67 IP68 when fully mounted IP65 IP66
Rated current	4 A
Rated voltage	250 V
Shock and vibration proof according to	Section B
Temperature range of housing	-25…+85 °C
Threaded ring material	Diecast zinc
Tightening torque	M12: 0.8 - 1.2 Nm
Version	pin, straight - socket, 90°

Electrical properties

Insulation strength	10⁸ Ω
Rated voltage	250 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-101

Standards

Connector standard	IEC 61076-2-101
Shock and vibration proof according to	Section B

Plug, left

Plug left

M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right

M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded
