SAIP-M12BW-4-3.0U
SAIP-M12BW-4-3.0U
Dimensioned drawing
Angled socket
SAIP-M12BW-4-3.0U
Pole scheme
Socket
SAIP-M12BW-4-3.0U
Wiring diagram
SAIP-M12BW-4-3.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIP-M12BW-4-3.0U

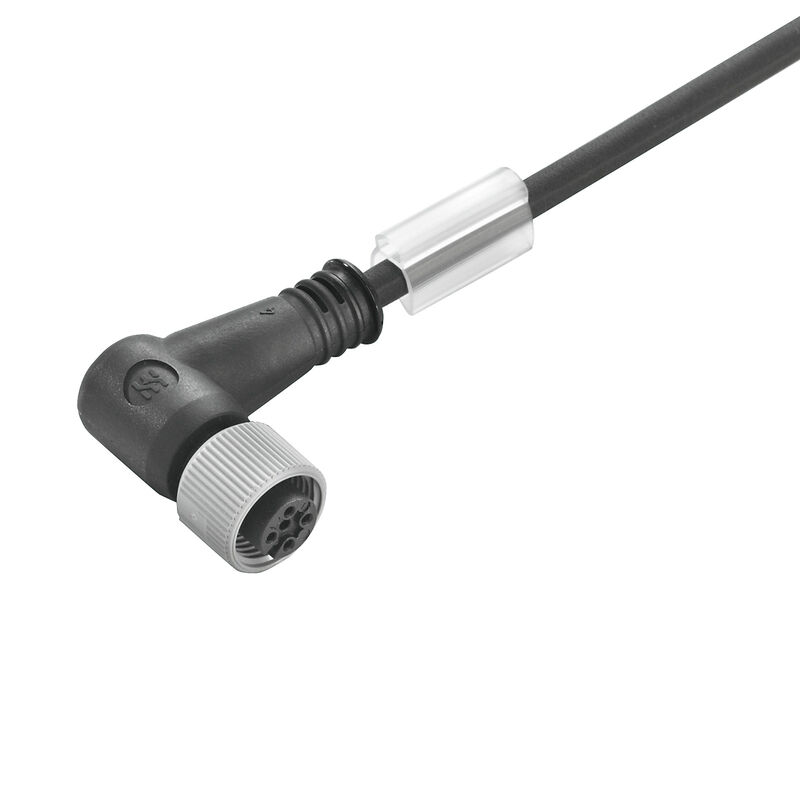

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1108780300
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 7 Samankaltaiset tuotteet 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos técnicos del cable Általános műszaki adatok Электрические свойства Általános szabványok Szabványok Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1108780300
Type
SAIP-M12BW-4-3.0U
GTIN (EAN)
4032248888320
Qty.
1 items

Dimensions and weights

Net weight
91,52 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Datos técnicos del cable

Acceleration
5 m/s²
Bending cycles
12 millions
Bending radius, min., moving
10 x diamètre du câble
Bending radius, min., stationary
5 x diamètre du câble
Bez LABS
Igen
Cable length
3 m
Core cross-section
0,34 mm²
Cykle zginania przy rozciąganiu
> 5 Mio.
Długość skręcania
1 m
Funda de conformidad con el estilo UL AWM
20549 (80 °C / 300 V)
Halogen
Нет
Hydrolysis and microbe resistant
Да
Insulation
PP
Kodowanie kolorami
brown
white
blue
black
Konfigurovatelná délka kabelu
No
Liczba biegunów
4
Number of wires
4
Odporne na ściegi spawalnicze
No
Odporność na iskry spawalnicze
No
Rdzeń zgodnie z UL AWM style
10493 (80 °C / 300 V)
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Sieciowane radiacyjnie
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Wytrzymałość na skręcanie
180 °/m
Zakres temperatur, stały
-50...80 °C
Zakres temperatur, zmienny, min. / maks.
-25...60 °C
Średnica zewnętrzna
4.1 mm + 0.15 mm

Általános műszaki adatok

Coding
A kódolású
Connection thread
M12
Contact surface
dorata
Housing main material
PUR
Insulation resistance
108 Ом
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Plastic
Tightening torque
M12 (plastic nut): 0.6 - 0.8 Nm
Version
Socket, angled

Электрические свойства

Insulation resistance
108 Ом
Napięcie znamionowe
250 V

Általános szabványok

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Szabványok

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
