Eigenschappen

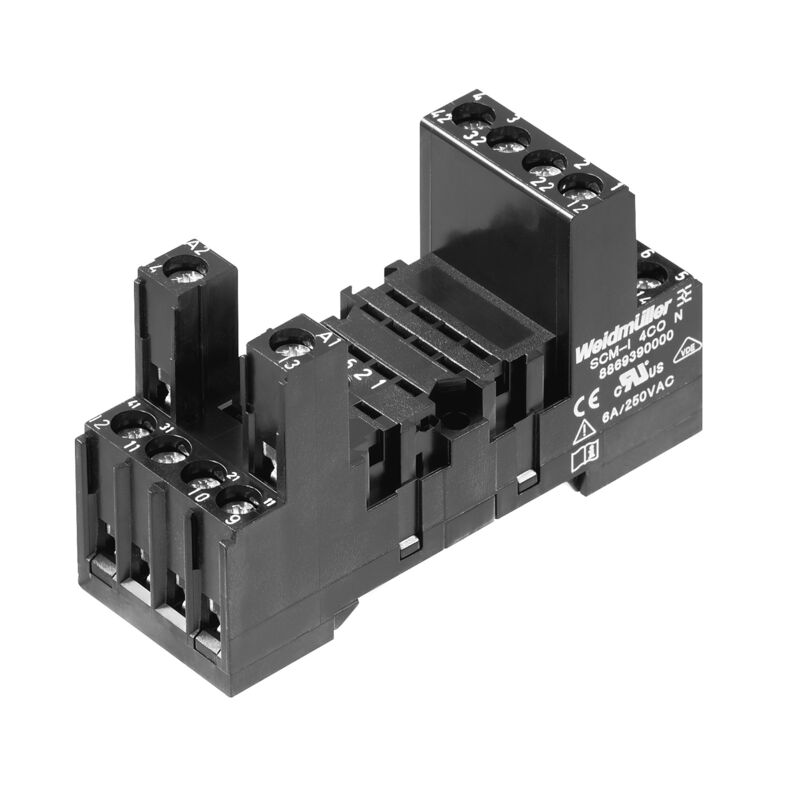

| Version | RIDERSERIES RCM, Relay socket, Number of contacts: 3, CO contact, Continuous current: 10 A, Screw connection |
| Order No. | 8869410000 |
| Type | SCM-I 3CO N |
| GTIN (EAN) | 4032248606375 |
| Qty. | 10 items |

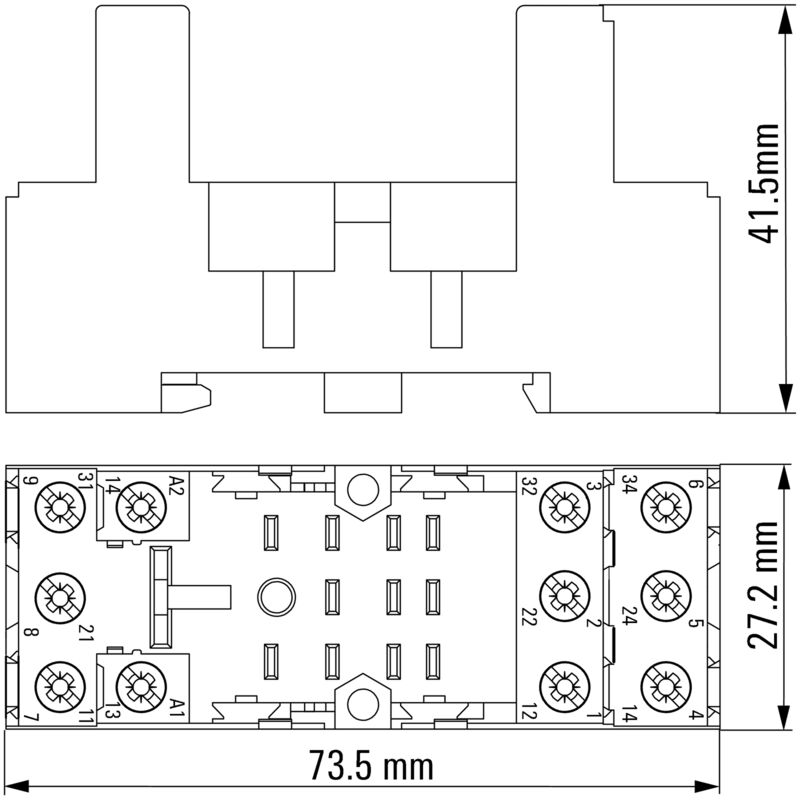

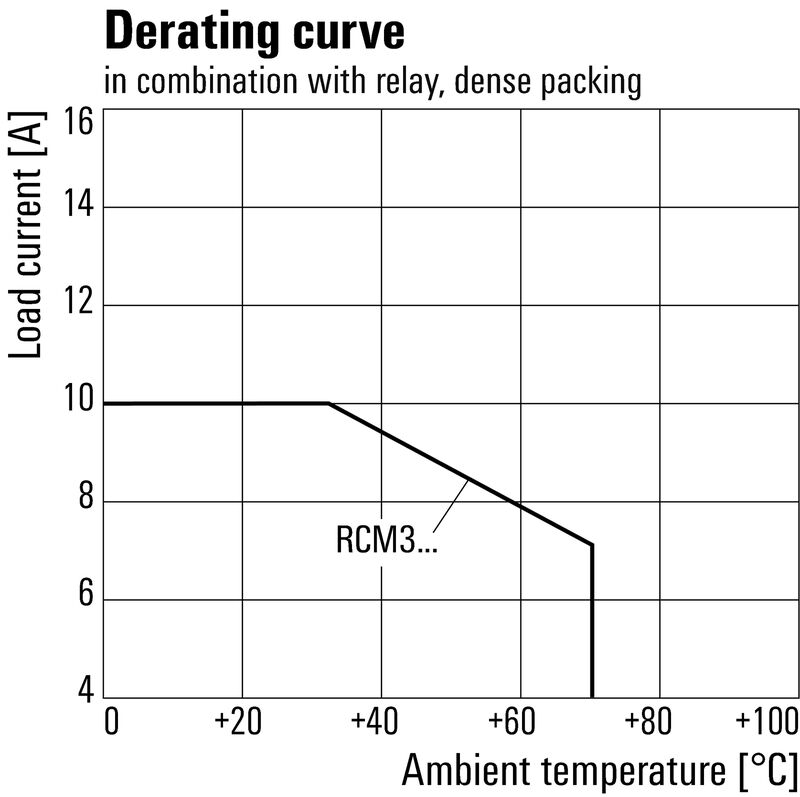

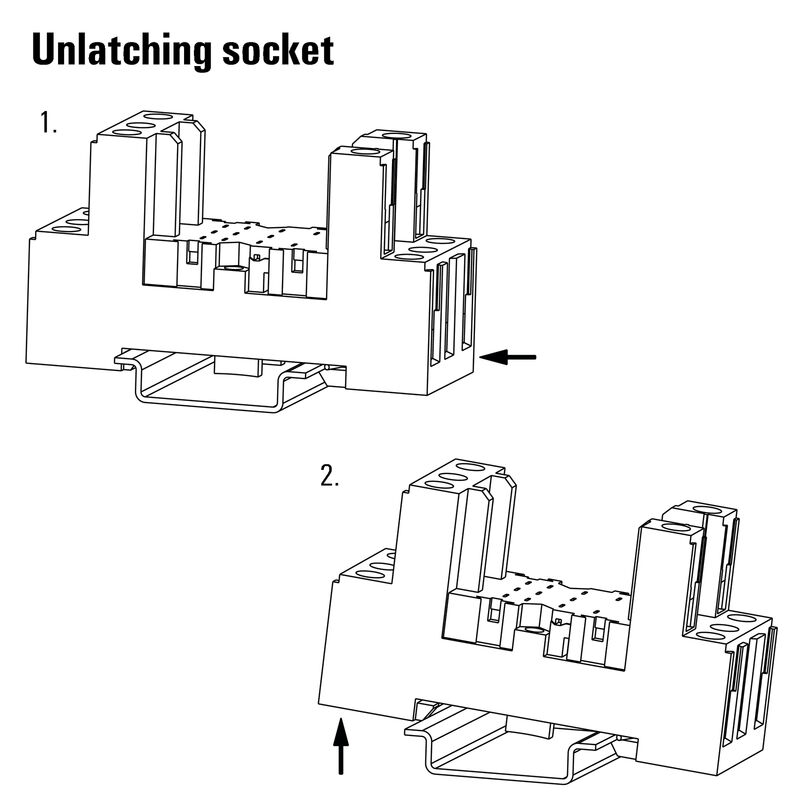

| Depth | 41,5 mm |
| Depth (inches) | 1,634 inch |
| Height | 73,5 mm |
| Height (inches) | 2,894 inch |
| Width | 27,2 mm |
| Width (inches) | 1,071 inch |
| Net weight | 51,141 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E223759 |
| Rated switching voltage | 250 V AC |
| Continuous current | 10 A |
| Max. switching voltage, AC | 400 V |
| Max. switching voltage, DC | 250 V |
| Contact type | 3 CO contact |
| Rail | TS 35 |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 4 mm |
| Dielectric strength for control side - load side | 2.5 kVeff / 1 Min. |
| Type of isolation at input and output | Basic insulation |
| Dielectric strength of neighbouring contacts | 2.5 kVeff / 1 Min. |
| Type of isolation at neighbouring contacts | Basic insulation |
| Dielectric strength of open contact | 1.2 kVeff /1 min. |
| Protection degree | IP20 |
| Certificate No. (CSA) | 249409-2295474 |
| Certificate No. (VDE) | 40011762 |
| Certificate No. (cURus) | E223759 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 8 mm |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,7 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 1 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire cross-section, solid, min. | 1 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 1 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 1 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1,5 mm² |
| Blade size | size PZ1 |
| Product information | IP20 without connected conductor at complete opened clamping yoke connection. |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35350) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66722) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8869410000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8869410000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001456 |
| ETIM 7.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| ETIM 9.0 | EC001456 |
| ECLASS 9.0 | 27-37-16-03 |
| ECLASS 9.1 | 27-37-16-03 |
| ECLASS 10.0 | 27-37-16-03 |
| ECLASS 11.0 | 27-37-16-03 |
| ECLASS 12.0 | 27-37-16-03 |
| ECLASS 13.0 | 27-37-16-03 |
| ECLASS 14.0 | 27-37-16-03 |
| Approvals |      |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223759 |
