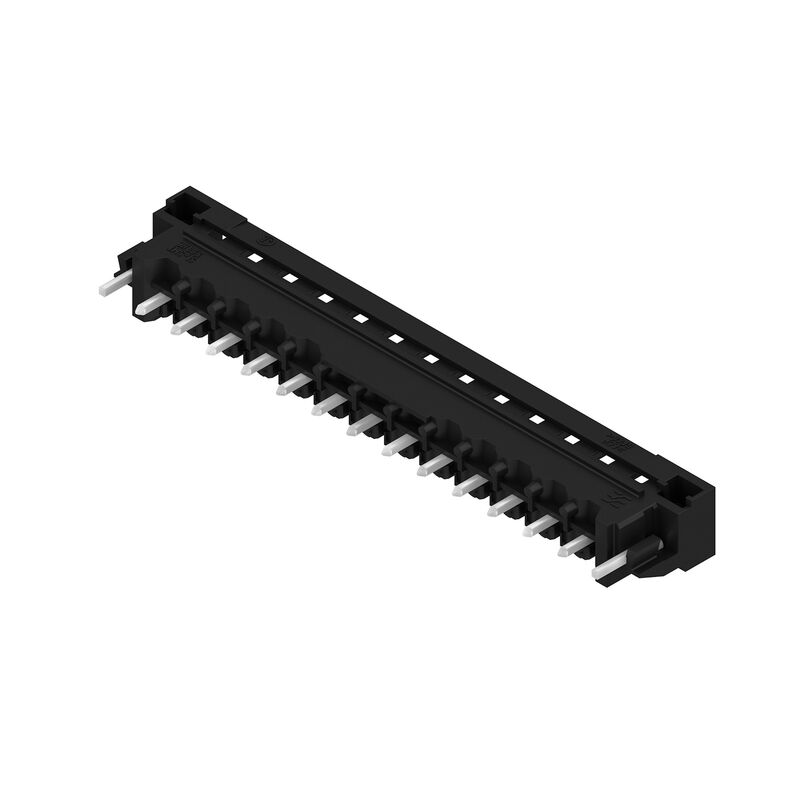

SL-SMT 5.08HC/13/180LF 3.2SN BK BX
Product image

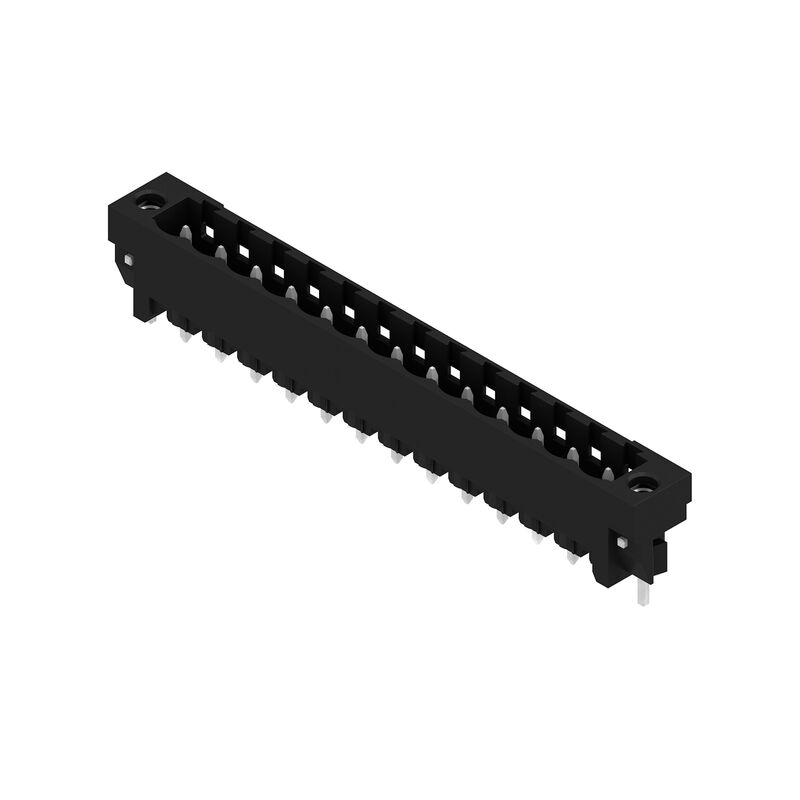

SL-SMT 5.08HC/13/180LF 3.2SN BK BX
Product image
SL-SMT 5.08HC/13/180LF 3.2SN BK BX
Dimensional drawing
SL-SMT 5.08HC/13/180LF 3.2SN BK BX
Product benefits
Safe power transmission
Proven properties

SL-SMT 5.08HC/13/180LF 3.2SN BK BX

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 13, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box

Tuotteen tunnus 1838550000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 On vastine kohteelle 17 Samankaltaiset tuotteet 36
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Omologazioni
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (UR)
E60693

General ordering data

Változat
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 13, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box
N. d’ordine
1838550000
Típus
SL-SMT 5.08HC/13/180LF 3.2SN BK BX
GTIN (EAN)
4032248348619
Förp.
24 items
Product data
IEC: 400 V / 27.5 A
UL: 300 V / 18.5 A
Packaging
Box

Dimensions and weights

Mélység
8,5 mm
Depth (inches)
0,335 inch
Posizione verticale
15,2 mm
Height (inches)
0,598 inch
Height of lowest version
12 mm
Szélesség
75,84 mm
폭 (인치)
2,986 inch
Net weight
6,568 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,154 kg CO2 eq.

System specifications

Skupina produktů
OMNIMATE Signal - series BL/SL 5.08
Typ připojení
Board connection
Mounting onto the PCB
THT/THR solder connection
Rozteč v mm (P)
5,08 mm
Paso en pulgadas (P)
0,2 "
Outgoing elbow
180°
Number of poles
13
Número de terminales de soldadura por polo
1
Solder pin length (l)
3,2 mm
Tolérance sur la longueur du picot à souder
0 / -0.3 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Solder eyelet hole diameter (D)
1,5 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
60,96 mm
L1 in inches
2,4 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
9 N
Pulling force/pole, max.
7 N

Material data

Isoleringsmaterial
LCP GF
Färgkod
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
−30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
27,5 A
Rated current, max. number of poles (Tu=20°C)
19 A
Rated current, min. number of poles (Tu=40°C)
24 A
Rated current, max. number of poles (Tu=40°C)
16,5 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1176845
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Intensidad nominal (Use Group D / CSA)
18,5 A
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Č. osvědčení (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
340 mm
VPE width
133 mm
VPE height
21 mm

Important note

Zgodność IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
