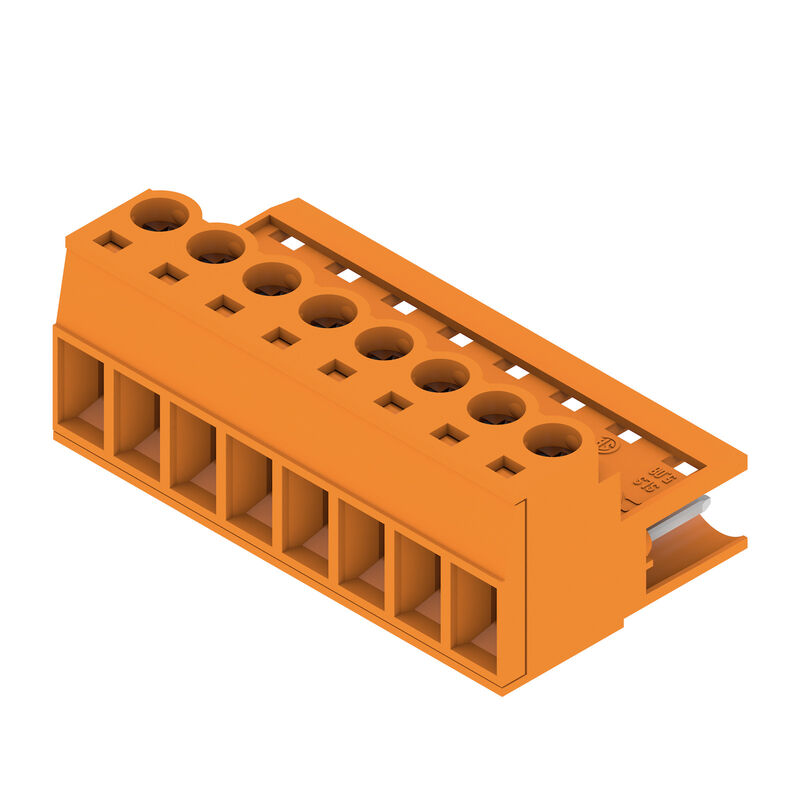

SLS 5.08/08/180 SN OR BX — Product image

Similar to illustration

Gegevensblad downloaden

SLS 5.08/08/180 SN OR BX

PCB plug-in connector, male plug, 5.08 mm, Number of poles: 8, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box

Product ID 1627150000

Eigenschappen

General ordering data

Version	PCB plug-in connector, male plug, 5.08 mm, Number of poles: 8, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box
Order No.	1627150000
Type	SLS 5.08/08/180 SN OR BX
GTIN (EAN)	4008190199661
Qty.	42 items
Product data	IEC: 400 V / 21.5 A / 0.2 - 2.5 mm² UL: 300 V / 14 A / AWG 26 - AWG 12
Packaging	Box

Dimensions and weights

Depth	22,2 mm
Depth (inches)	0,874 inch
Height	15,3 mm
Height (inches)	0,602 inch
Width	40,46 mm
Width (inches)	1,593 inch
Net weight	12,03 g

Environmental Product Compliance

REACH SVHC

System Parameters

Product family	OMNIMATE Signal - series BL/SL 5.08
Type of connection	Field connection
Wire connection method	Clamping yoke connection
Pitch in mm (P)	5,08 mm
Pitch in inches (P)	0,2 "
Conductor outlet direction	180°
Number of poles	8
L1 in mm	35,56 mm
L1 in inches	1,4 "
Number of rows	1
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 57 106	finger-safe plugged/ back-of-hand-safe unplugged
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged/ IP10 unplugged
Protection degree	IP20 when fully mounted
Volume resistance	≤5 mΩ
Can be coded	Yes
Stripping length	7 mm
Clamping screw	M 2.5
Screwdriver blade	0.6 x 3.5
Screwdriver blade standard	DIN 5264-A
Plugging cycles	25
Plugging force/pole, max.	4 N
Pulling force/pole, max.	3 N
Tightening torque	Torque type: Wire connection Usage information: Tightening torque: min.: 0,4 Nm max.: 0,5 Nm

Material data

Insulating material	PBT
Colour	orange
Colour chart (similar)	RAL 2000
Insulating material group	IIIa
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Layer structure of plug contact	4...8 µm Sn hot-dip tinned
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	100 °C
Temperature range, installation, min.	-25 °C
Temperature range, installation, max.	100 °C

Conductors suitable for connection

Clamping range, min.	0,13 mm²
Clamping range, max.	3,31 mm²
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section AWG, max.	AWG 12
Solid, min. H05(07) V-U	0,2 mm²
Solid, max. H05(07) V-U	2,5 mm²
Stranded, min. H07V-R	0,2 mm²
Stranded, max. H07V-R	2,5 mm²
Flexible, min. H05(07) V-K	0,2 mm²
Flexible, max. H05(07) V-K	2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.8 mm x 2.0 mm; 2.4 mm
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 0,5 mm² wire end ferrule: Stripping length: nominal: 6 mm Recommended wire-end ferrule: 0282600000 Cross-section for conductor connection: Type: fine-wired nominal: 1 mm² wire end ferrule: Stripping length: nominal: 6 mm Recommended wire-end ferrule: 0372600000 Cross-section for conductor connection: Type: fine-wired nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 7 mm Recommended wire-end ferrule: 0372700000 Cross-section for conductor connection: Type: fine-wired nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 7 mm Recommended wire-end ferrule: 0373000000 Cross-section for conductor connection: Type: fine-wired nominal: 0,75 mm² wire end ferrule: Stripping length: nominal: 6 mm Recommended wire-end ferrule: 0282700000
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P) Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	21,5 A
Rated current, max. number of poles (Tu=20°C)	16 A
Rated current, min. number of poles (Tu=40°C)	18 A
Rated current, max. number of poles (Tu=40°C)	14 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV
Short-time withstand current resistance	3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1121690
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group D / CSA)	300 V
Rated current (Use group B / CSA)	15 A
Rated current (Use group D / CSA)	10 A
Wire cross-section, AWG, min.	AWG 26
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)	UR
Certificate No. (UR)	E60693
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group B / UL 1059)	14 A
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, min.	AWG 26
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	350 mm
VPE width	136 mm
VPE height	30 mm

Type tests

Test: Durability of markings	Standard: VDE 0627 Tab. 7 item 3/6.86 Test: durability Evaluation: passed
Test: Clampable cross section	Standard: VDE 0627 Tab. 7 item 3/6.86, EN 60947-1 03.91 Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: H05V-U2.5 Type of conductor and conductor cross-section: H05V-K2.5 Type of conductor and conductor cross-section: AWG 28 Type of conductor and conductor cross-section: AWG 14 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: VDE 0627 Tab. 7 item 3/6.86 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Evaluation: passed Requirement: 0.7 kg Conductor type: Type of conductor and conductor cross-section: H07V-U2.5 Type of conductor and conductor cross-section: H07V-K2.5 Type of conductor and conductor cross-section: AWG 14/19 Evaluation: passed
Pull-out test	Standard: VDE 0627 Tab. 7 item 3/6.86 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Evaluation: passed Requirement: 0.7 kg Conductor type: Type of conductor and conductor cross-section: H07V-U2.5 Type of conductor and conductor cross-section: H07V-K2.5 Type of conductor and conductor cross-section: AWG 14/19 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62378)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1627150000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL BUILDING SAFETY EN](http://download.weidmueller.com/asset/download/file/38207) [FL APPL LED LIGHTING EN](http://download.weidmueller.com/asset/download/file/38275) [FL INDUSTR.CONTROLS EN](http://download.weidmueller.com/asset/download/file/38285) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194)

Classifications

ETIM 6.0	EC002638
ETIM 7.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
ECLASS 9.0	27-44-03-09
ECLASS 9.1	27-44-03-09
ECLASS 10.0	27-44-03-09
ECLASS 11.0	27-46-02-02
ECLASS 12.0	27-46-02-02
ECLASS 13.0	27-46-02-02

Approvals

Approvals	![CSA](/picture/CSA.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
