Eigenschappen
| Order No. | 6720001400 |

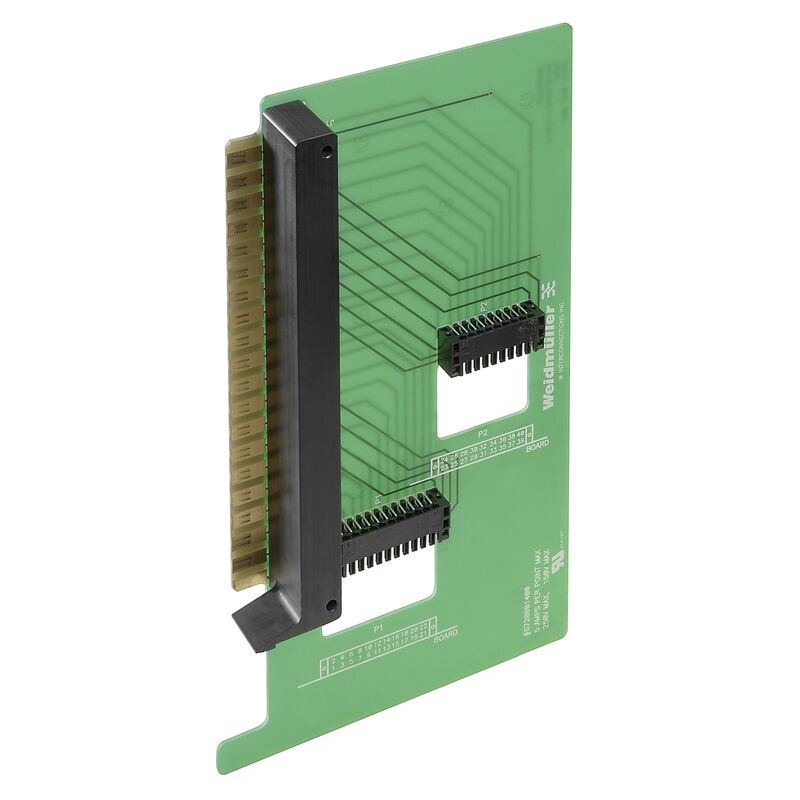

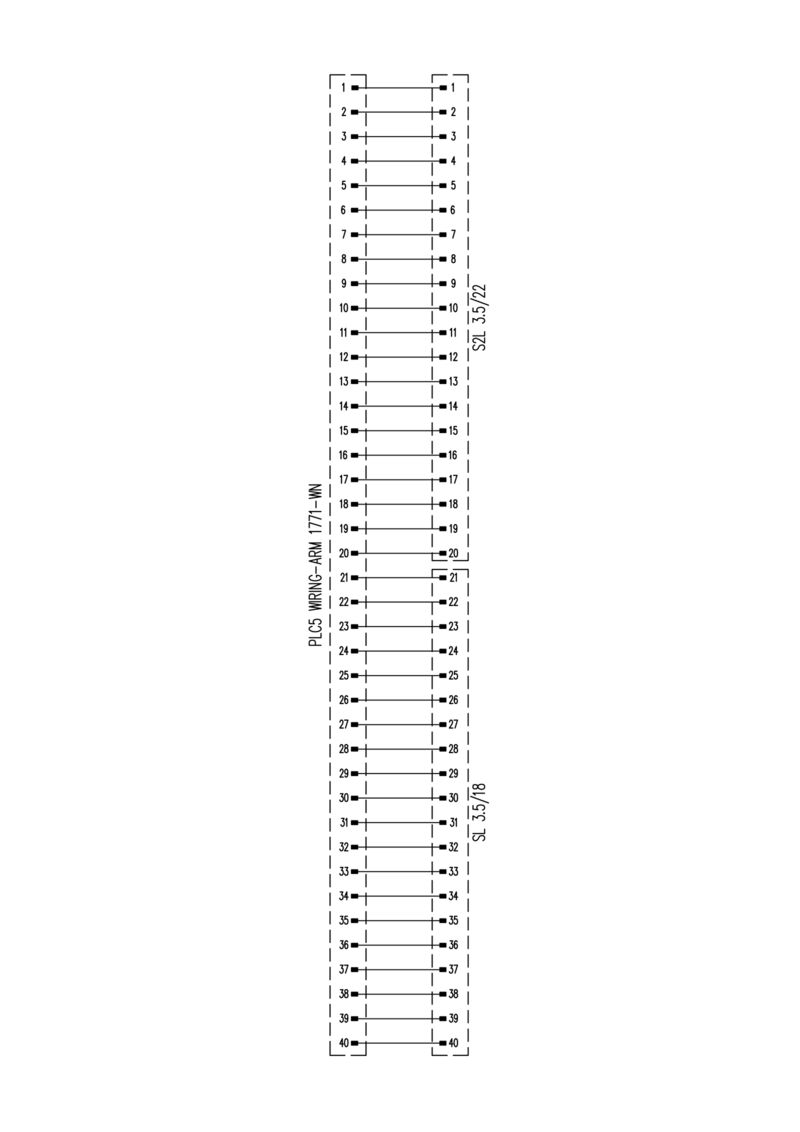

| Type | SP-RS PLC PLC5 1771-WN 40CH |
| GTIN (EAN) | 4050118765878 |
| Qty. | 1 items |
| Depth | 142 mm |
| Depth (inches) | 5,591 inch |
| Height | 254 mm |
| Height (inches) | 10 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Net weight | 197 g |
| Storage temperature | 0...50 °C |
| Operating temperature | 0...50 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Operating voltage | 150 V |
| Max. current per channel | 5 A |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-24-22-92 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| ROHS | Conform |
