Eigenschappen

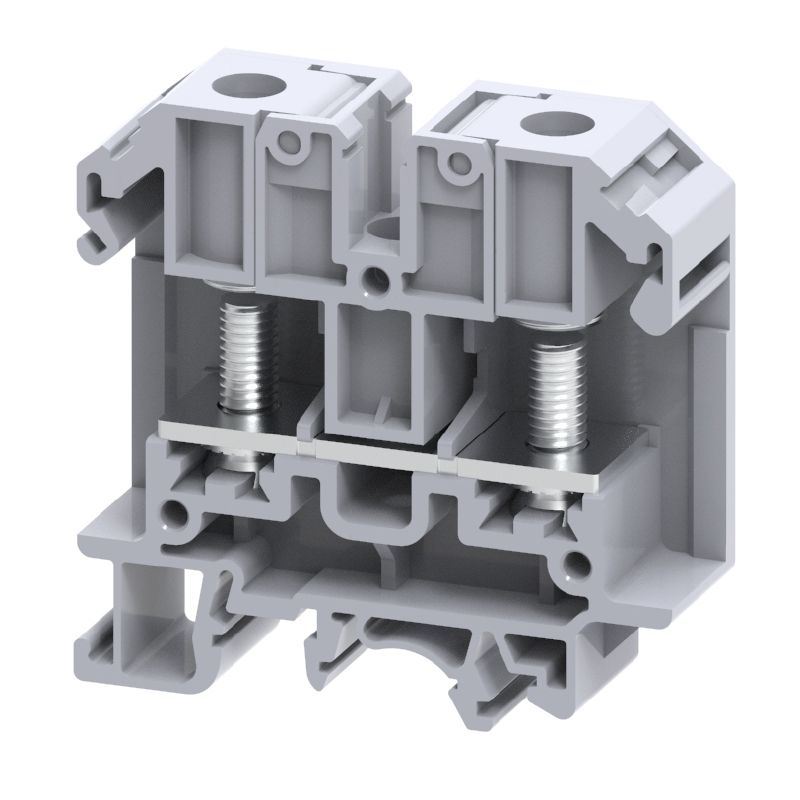

| Version | Stud terminal, Threaded stud connection, grey, 35 mm², 125 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-0, Polyamide |
| Order No. | 2614960000 |
| Type | SRL 6 |
| GTIN (EAN) | 4050118654011 |
| Qty. | 50 items |
| Depth | 63,1 mm |
| Depth (inches) | 2,484 inch |
| Height | 63,9 mm |
| Height (inches) | 2,516 inch |
| Width | 18 mm |
| Width (inches) | 0,709 inch |
| Net weight | 31 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail |
TS 35
TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | right |
| Snap-on | Yes |
| Type of mounting | Snap mounting support rail |
| 2 x cable lugs DIN 46 234 | 1.5…35 mm² |
| 2 x cable lugs DIN 46 235 | 1.5…35 mm² |
| Cable lug to DIN 46234 | 1.5…35 mm² |
| Cable lug to DIN 46235 | 1.5…35 mm² |
| Clamping range, bolted connection , max. | 35 mm² |
| Clamping range, bolted connection , min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Stud size for spade connection | M 6 |
| Tightening torque, max. | 3 Nm |
| Tightening torque, min. | 3 Nm |
| Type of connection | Threaded stud connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross-section, solid core, max. | 35 mm² |
| Wire connection cross-section, solid core, min. | 1,5 mm² |
| Certificate number (cCSAus) | 70198655 |
| Wire cross section max. (cCSAusX) | 8 AWG |
| Wire cross section min. (cCSAusX) | 22 AWG |
| Rail |
TS 35
TS 32 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 35 mm² |
| Rated voltage | 1.000 V |
| Rated DC voltage | 1.000 V |
| Rated current | 125 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,26 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | . |
| Conductor size Factory wiring max. (cURus) | 2 AWG |
| Conductor size Factory wiring min. (cURus) | 22 AWG |
| Conductor size Field wiring max. (cURus) | 2 AWG |
| Conductor size Field wiring min. (cURus) | 22 AWG |
| Current size B (cURus) | 115 A |
| Current size C (cURus) | 115 A |
| Voltage size B (cURus) | 600 V |
| Voltage size C (cURus) | 600 V |
| Approval/Certificate/Document of Conformity | [DE PT1001 20230213 001 ISSUE01](https://mdcop.weidmueller.com/mediadelivery/asset/900_293616) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_102435) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2614960000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | . |
