SV-SMT 7.62HP/05/270SF 2.6SN BK BX
Produktillustration
SV-SMT 7.62HP/05/270SF 2.6SN BK BX
Produktillustration
SV-SMT 7.62HP/05/270SF 2.6SN BK BX
Dimensional drawing

SV-SMT 7.62HP/05/270SF 2.6SN BK BX

Denna produkt är snart inte tillgänglig längre.

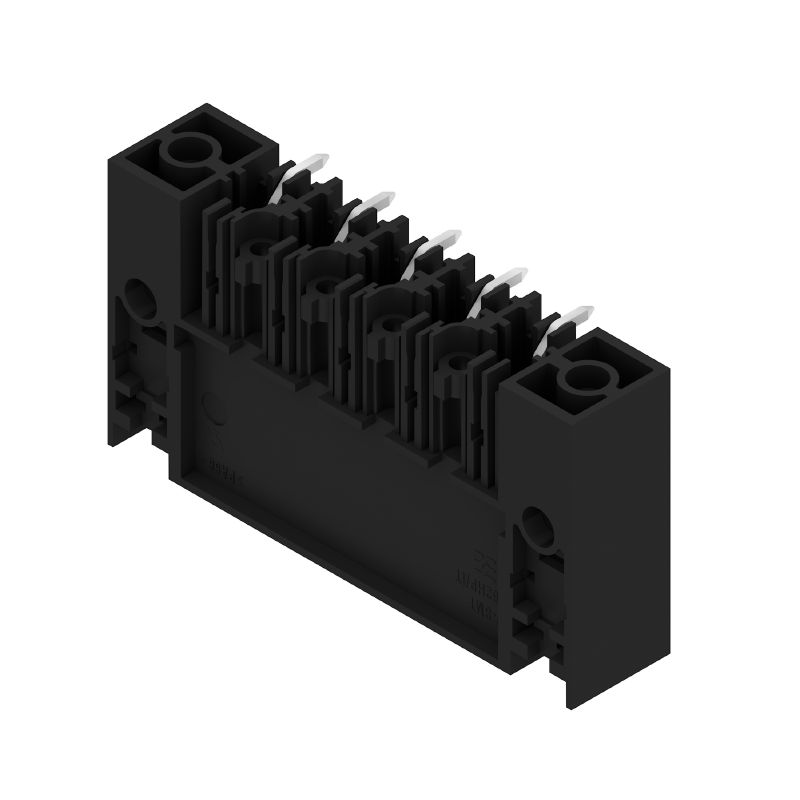

PCB plug-in connector, male header, Middle screw flange, THT/THR solder connection, 7.62 mm, Number of poles: 5, 270°, Solder pin length (l): 2.6 mm, tinned, black, Box

Produkt-ID 2499970000
Ladda ner datablad Teknisk support Nedladdningar av produkter
Tillbehör 1
Zulassungen General ordering data Abmessungen und Gewichte Environmental Product Compliance Systemkennwerte Werkstoffdaten Bemessungsdaten nach IEC Rated data acc. to UL 1059 Verpackungen Important note Classifications

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conformidad
UL File Number Search
[Sitio web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, Middle screw flange, THT/THR solder connection, 7.62 mm, Number of poles: 5, 270°, Solder pin length (l): 2.6 mm, tinned, black, Box
Order No.
2499970000
Type
SV-SMT 7.62HP/05/270SF 2.6SN BK BX
GTIN (EAN)
4050118513394
Qty.
30 items
Product data
IEC: 1000 V / 41 A
UL: 300 V / 40.5 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1806444000000)/

Abmessungen und Gewichte

Depth
28,3 mm
Depth (inches)
1,114 inch
Height
14 mm
Height (inches)
0,551 inch
Height of lowest version
11,4 mm
Width
45,72 mm
Anchura (pulgadas)
1,8 inch
Net weight
11 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

Systemkennwerte

Product family
OMNIMATE Power - Serie BV/SV 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
270°
Number of poles
5
Number of solder pins per pole
2
Solder pin length (l)
2,6 mm
Solder pin length tolerance
+0,1 / -0,3 mm
Solder pin dimensions
0,8 x 1,0 mm
Solder eyelet hole diameter (D)
1,5 mm
Forrasztószem lyukátmérő tűrés (D)
+ 0,1 mm
L1 in mm
38,1 mm
L1, inch
1,8 "
Sorok száma
1
Érintkezősorok száma
1
Érintésvédelem a DIN VDE 57 106 szerint
safe to back of hand above the printed circuit board
Érintésvédelem a DIN VDE 0470 szerint
IP 20 dugaszolva / IP 10 nem dugaszolva
Védelmi osztály
IP20
teljesen felszerelve
Resistenza di passaggio
2,00 mΩ
Codificabile
Sì
Coppia di serraggio per flangia a vite, min.
0,2 Nm
Coppia di serraggio per flangia a vite, max.
0,3 Nm
Cicli di inserimento
25
Forza di innesto/polo, max.
12 N
Forza d'estrazione/polo, max.
7 N

Werkstoffdaten

Insulating material
PA 9T
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
Insulation resistance
≥ 10⁸ Ω
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Alliage de cuivre
Contact surface
ónozott
Forrasztott csatlakozás rétegszerkezete
1...3 µm Ni / 4...6 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 4...6 µm Sn matt
Temperatura di magazzinaggio, min.
-40 °C
Temperatura di magazzinaggio, max.
70 °C
Temperatura d'esercizio , min.
-50 °C
Temperatura d'esercizio , max.
130 °C
Campo della temperatura di montaggio, min.
-25 °C
Campo della temperatura di montaggio, max.
130 °C

Bemessungsdaten nach IEC

geprüft nach Norm
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
41 A
Rated current, max. number of poles (Tu=20°C)
41 A
Rated current, min. number of poles (Tu=40°C)
41 A
Rated current, max. number of poles (Tu=40°C)
41 A
Rated voltage for surge voltage class / pollution degree II/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/2
630 V
Rated voltage for surge voltage class / pollution degree III/3
630 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1, 420 A-rel
Clearance, min.
6,9 mm
Creepage distance, min.
9,6 mm

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Tension nominale (groupe d'utilisation F / UL 1059)
744 V
Rated current (Use group B / UL 1059)
40,5 A
Rated current (Use group C / UL 1059)
40,5 A
Rated current (Use group D / UL 1059)
10 A
Névleges áram (F felhasználási csoport / UL 1059)
40,5 A
Clearance distance, min.
6,9 mm
Creepage distance, min.
9,6 mm
Reference to approval values
Le specifiche indicano i valori massimi, per i dettagli fare riferimento al certificato di conformità.

Verpackungen

Packaging
Box
VPE length
350 mm
VPE width
135 mm
VPE height
38 mm
Surface resistance
Rs = 109 - 1012 Ω

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Más variantes bajo solicitud
  • Intensidad nominal relativa a la sección nominal y número mín. de polos.
  • P en el dibujo = paso
  • Los datos nom. se refieren al comp. corresp. las distancias en aire y fuga respecto a otros comp. se dimensionan s/normas aplicación relevantes.
  • De acuerdo con la norma IEC 61984, los conectores OMNIMATE son conectores sin capacidad de ruptura (COC). Durante el uso designado, no se permite que los conectores sean acoplados o desacoplados cuando estén en tensión o bajo carga
  • Almacenamiento a largo plazo del producto con una temperatura promedio de 50 °C y una humedad promedio del 70 %, 36 meses


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
