Eigenschappen
| Version | Automation Products - u-remote IP67, Sensor-actuator active distributor |
| Order No. | 2426250000 |

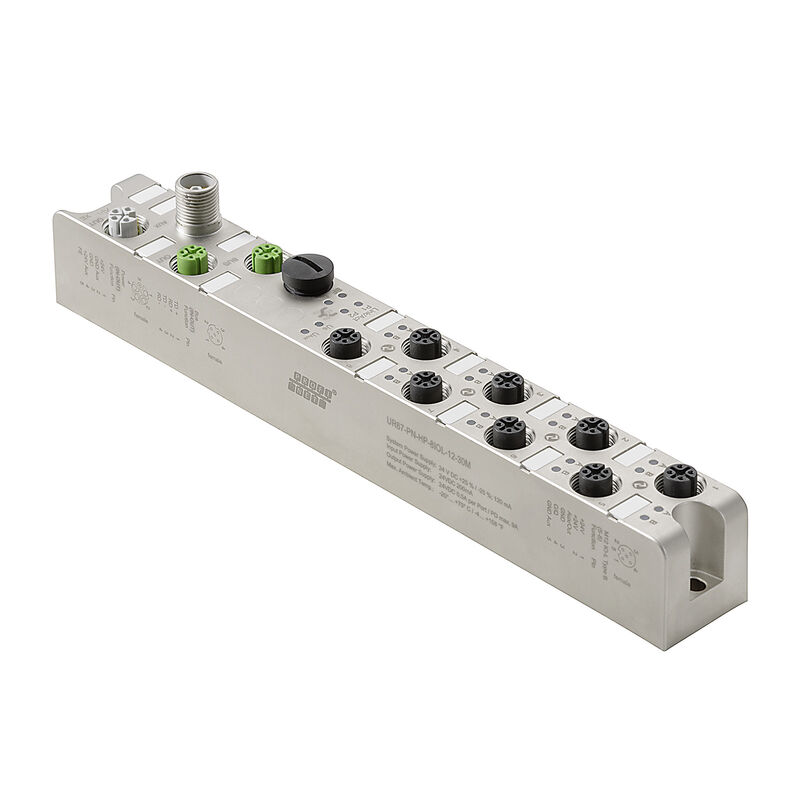

| Type | UR67-PN-HP-8IOL-12-30M |
| GTIN (EAN) | 4050118434354 |
| Qty. | 1 items |
| Net weight | 480 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 82327f13-cd27-455a-ab5b-a62e1996dcf8 |
| Diagnostic display |
Per channel
via LED red |
| Digital inputs |
|
| Status indicator |
Per channel
via LED yellow |
| Diagnostic display |
Per channel
via LED red |
| Digital outputs |
|
| Output voltage, high | max. 2 V |
| Output voltage, low | - 1 V |
| Status indicator |
Per channel
via LED yellow |
| Power consumption of module electronics | 160 mA typical |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_287396)
[UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_287400) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66019) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2426250000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2426250000) |
| Software |
[Device description -- UR67 - GSDML V2.31 + V.33 / EDS V3.9 /ESI V1.2 files](https://mdcop.weidmueller.com/mediadelivery/asset/900_89224)
[Device description -- Device Description – UR67 IOLM 1.4](https://mdcop.weidmueller.com/mediadelivery/asset/900_274869) [Device description -- Device Description – UR67 IOLM 1.3](https://mdcop.weidmueller.com/mediadelivery/asset/900_274870) |
| User Documentation |
[MAN UR67 IO-LINK EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_53292)
[MAN UR67 IO-LINK DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_53293) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 9.0 | EC001599 |
| ECLASS 9.0 | 27-24-26-04 |
| ECLASS 9.1 | 27-24-26-04 |
| ECLASS 10.0 | 27-24-26-04 |
| ECLASS 11.0 | 27-24-26-04 |
| ECLASS 12.0 | 27-24-26-04 |
| ECLASS 13.0 | 27-24-26-04 |
| ECLASS 14.0 | 27-24-26-04 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
Toebehoren
-
Product ID:2455260150VPE:1 items
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 1.5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:1044470015VPE:1 items
Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 1.5 m
-
Product ID:1954050000VPE:250 items
MultiFit, Terminal marker, 5 x 10 mm, Pitch in mm (P): 10.00 Phoenix, white
-
Product ID:2455200150VPE:1 items
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 1.5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:2455240150VPE:1 items
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 1.5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:2455330150VPE:1 items
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:2455320150VPE:1 items
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 1.5 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:1025950015VPE:1 items
Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 1.5 m
-
Product ID:2455300150VPE:1 items
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 1.5 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:1892120000VPE:1 items
Field attachable connector, M12, pin, straight
-
Product ID:2455280150VPE:1 items
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 1.5 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Product ID:2455220150VPE:1 items
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 1.5 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
