Özellikler
| Order No. | 3095410000 |

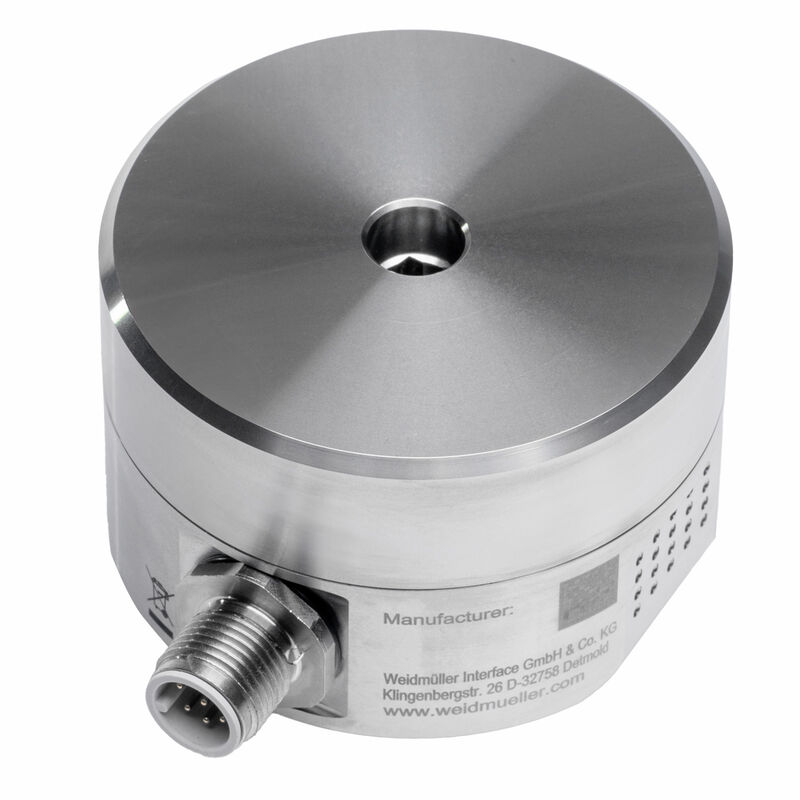

| Type | US67-VIB60C-ANA-0032B000C00000 |
| GTIN (EAN) | 4099987114615 |
| Qty. | 1 adet |
| Depth | 62 mm |
| Depth (inches) | 2,441 inch |
| 46 mm | |
| Height (inches) | 1,811 inch |
| Width | 72,5 mm |
| Width (inches) | 2,854 inch |
| Diameter | 62 mm |
| Net weight | 500 g |
| Storage temperature | -40 °C...60 °C |
| Ambient temperature | -40 °C…60 °C |
| Operating temperature | -40 °C...60 °C |
| Humidity | 0...100% |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Applications | for indoor and outdoor use |
| For Ex zone dust | None |
| For Ex zone gas | None |
| Machine vibration assessment included | Yes |
| MTTF | 112 a |
| Operating life | 10 years |
| Protection class (UL) | Type 4X |
| Safety category | SIL 2 |
| Protection degree |
IP67 (cover and plug connection closed)
IP66 (cover and plug connection closed) |
| Accuracy of vibration measurement | 10 % |
| Calibration point | 159,2 Hz and 90 % amplitude of measurement range |
| Cross sensitivity | <5 % |
| Device is calibrated | Yes |
| Effective vibration velocity, max. | 32 mm/s |
| Frequency range configurable | No |
| Measurement range | 4...20 mA ~ 0…32 mm/s, rms |
| Measuring unit vibration velocity (RMS) | mm/s |
| Number of measuring axes | 1 |
| Physical measurement principle of the sensor | Vibration acceleration |
| Sensor measuring method acc. to ISO10816-3 | 1-axis broadband analysis 10 Hz...1 kHz, VRMS |
| Spectral analysis method (FFT) | No FFT calculation |
| Temperature measurement available | No |
| Temperature range measuring head |
|
| Transmission intervall of signals | Continuous measurement |
| Vibration acceleration, max. (gravity g) | 16.5 |
| Vibration acceleration, min. (gravity g) | -16.5 |
| Frequency range, min. | 10 Hz |
| Frequency range, max. | 1.000 Hz |
| Sensor vibration |
|
| Monitoring | Vibration monitoring acc. to DIN ISO 10816-3 |
| Accuracy | ±10 % (acc. DIN ISO 2954) |
| Connection type | M12 |
| Number of poles | 8 |
| Plug | 1x M12 female 8-pole |
| Alarm function |
2x potential-free switching contact (pre-alarm and main alarm)
configurable |
| Input current, max. | 100 mA |
| IO-Link available | No |
| Load resistance, max. | 500 Ω |
| Measuring and process variables | RMS vibration velocity |
| Output signal | 4...20 mA (proportional to measuring range) |
| Material | Stainless steel 1.4305 (V2A), AISI 303 (standard) |
| Connection thread | Threaded hole on mounting surface: M8, 15 mm |
| Installation location | Indoor and outdoor use |
| Mounting thread | M8 |
| Sealing with tie possible | No |
| Tightening torque | 8 Nm |
| Type of mounting |
Screw mounting
Direct mounting Adhesive fastening Mounting plate Magnet Miscellaneous |
| Type of mounting sensor |
Hexagon socket head cap screw M8x20
Many possibilities using adapters Direct mounting: screw connection |
| Type of power supply |
External
DC |
| Wireless | No |
| Frequency range, max. | 1.000 Hz |
| Frequency range, min. | 10 Hz |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_323947) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 8.0 | EC004309 |
| ETIM 9.0 | EC004309 |
| ECLASS 9.1 | 27-20-14-12 |
| ECLASS 10.0 | 27-20-14-12 |
| ECLASS 11.0 | 27-20-14-12 |
| ECLASS 12.0 | 27-20-14-12 |
| ECLASS 13.0 | 27-20-14-12 |
| ECLASS 14.0 | 27-20-14-12 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate no. (cULus) | E337701 |
