Eigenschappen
| Version | Surge voltage arrester, Low voltage, Accessories, Spare arrester |
| Order No. | 1352280000 |

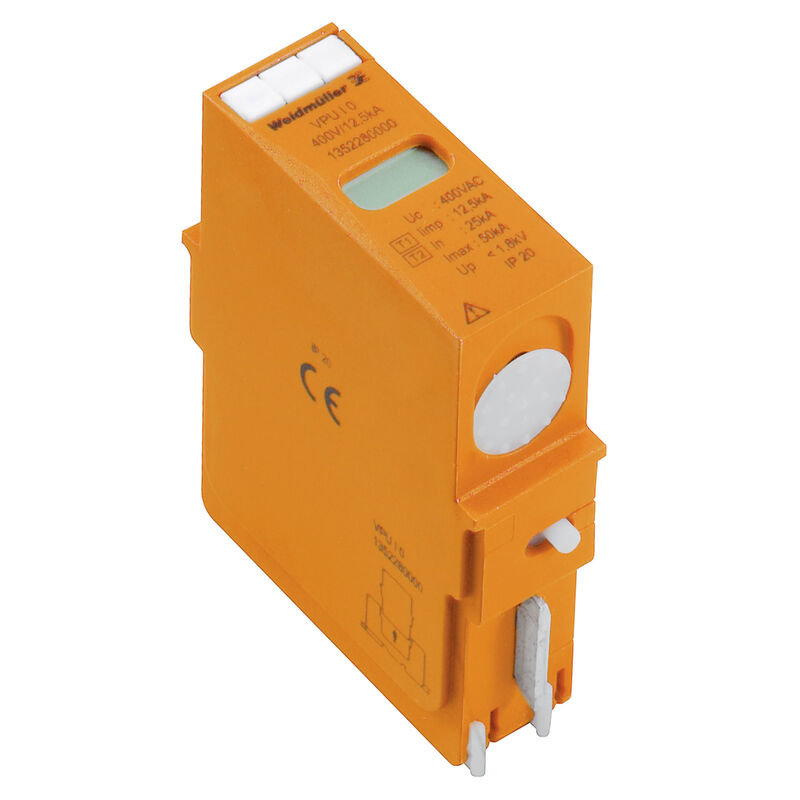

| Type | VPU I 0 400V/12,5KA |
| GTIN (EAN) | 4050118157994 |
| Qty. | 1 items |
| Depth | 64 mm |
| Depth (inches) | 2,52 inch |
| Height | 52 mm |
| Height (inches) | 2,047 inch |
| Width | 17,8 mm |
| Width (inches) | 0,701 inch |
| Net weight | 154 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...70 |
| Humidity | 5 - 95% rel. humidity |
| REACH SVHC | / |
| Colour | orange |
| Design | Insta IP 20 |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 |
| Segment | Power distribution |
| UL 94 flammability rating | V-0 |
| Version | Spare arrester |
| Pollution severity | 2 |
| Surge voltage category | IV |
| Discharge current Imax (8/20µs) wire-PE | 50 kA |
| Discharge current In (8/20µs) wire-PE | 25 kA |
| Follow-on current extinguishing capability Ifi | Not available due for technical reasons |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse |
No Fuse neccessary ≤250 A gG
250 A gL (if back up fuse > 250 A) |
| Leakage current at Un | 30 µA |
| Lightning test current Iimp (10/350 µs) (L-PE) | 12,5 kA |
| Max. continuous voltage, Uc (AC) | 400 V |
| Number of poles | 1 |
| Protection level Up at IN (L/N-PE) | ≤ 1.8 kV |
| Rated voltage (AC) | 400 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II |
| Requirements class, acc. to EN 61643-11 |
T1
T2 |
| Response time | ≤ 25 ns |
| Short-circuit current rating ISCCR | 25 kA |
| Standards | IEC61643-11, EN61643-11 |
| Temporary surge voltage (over-voltage) - TOV | 620 V |
| Voltage type | AC |
| Type of connection | pluggable |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86294) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1352280000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1352280000&norm=0) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35385) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Long specification | Spare arrestor for VPU I 0 280 V LCF-series surge voltage arrestor with 12.5 kA. The pluggable high-performance varistors made from V0 material can be replaced by trained personnel following a failure. Rated voltage: 400 V LCF Type: Weidmüller VPU I 0 LCF 400 V/12.5 kA Order No.: 1352280000 |
| Short specification | Spare arrester for surge voltage arrester VPU I 0 280 V LCF series with 12.5 kA. The pluggable high-performance varistors can be swapped by trained personnel following a failure. Rated voltage: 400 V LCF Type: Weidmüller VPU I 0 LCF 400 V/12.5 kA Order no.: 1352280000 |
| Approvals |   |
| ROHS | Conform |
