Eigenschappen
| Version | Surge voltage arrester, Low voltage, without telecomm. contact, TN-C-S, TN-S |
| Order No. | 1438010000 |

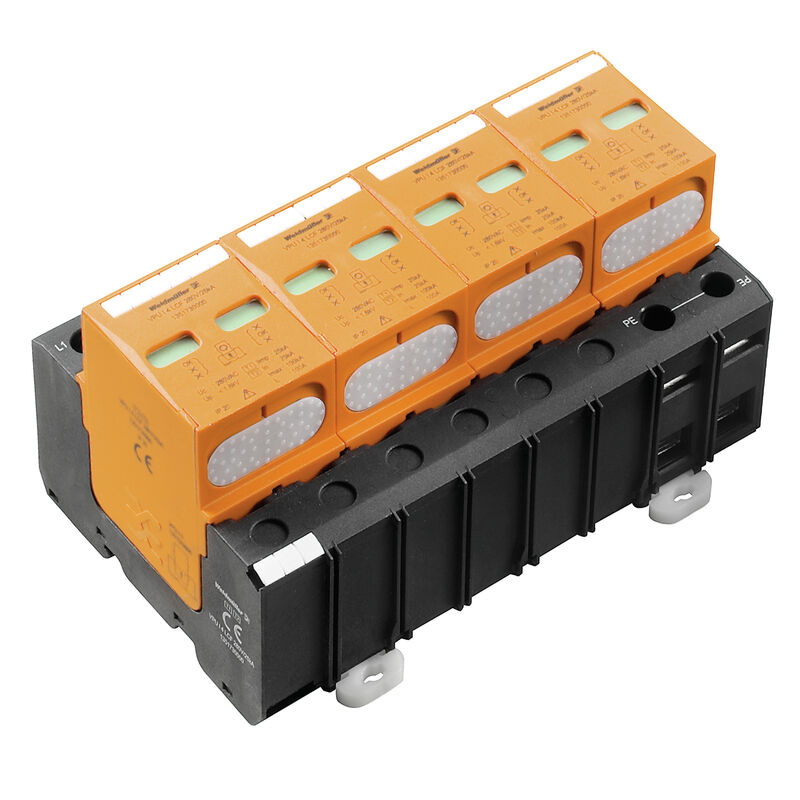

| Type | VPU I 4 400V/25KA |
| GTIN (EAN) | 4050118243703 |
| Qty. | 1 items |
| Depth | 69 mm |
| Depth (inches) | 2,717 inch |
| Height | 106 mm |
| Height (inches) | 4,173 inch |
| Width | 142,4 mm |
| Width (inches) | 5,606 inch |
| Mounting dimension - height | 75 mm |
| Net weight | 1.530 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour |
black
orange |
| Design |
Installation housing; 8 TE
Insta IP 20 |
| Operating altitude | ≤ 2000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 |
| Rail | TS 35 |
| Segment | Power distribution |
| UL 94 flammability rating | V-0 |
| Version | without telecomm. contact |
| Pollution severity | 2 |
| Surge voltage category | IV |
| Discharge current Imax (8/20µs) wire-PE | 100 kA |
| Discharge current In (8/20µs) wire-PE | 25 kA |
| Energy coordination (≤10 m) |
Type I
Type II Type III |
| Follow-on current extinguishing capability Ifi | Not available due for technical reasons |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse |
No Fuse neccessary ≤250 A gG
250 A gL (if back up fuse > 250 A) |
| Leakage current at Un | 100 µA |
| Lightning test current Iimp (10/350 µs) (L-PE) | 25 kA |
| Low voltage network |
TN-C-S
TN-S |
| Mains voltage |
230 V / 400 V
400 V / 690 V |
| Max. continuous voltage, Uc (AC) | 400 V |
| Number of poles | 4 |
| Protection level Up at IN (L/N-PE) | ≤ 1.9 kV |
| Rated load current IL | 100 A |
| Rated voltage (AC) | 400 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II |
| Requirements class, acc. to EN 61643-11 |
T1
T2 |
| Response time | ≤ 25 ns |
| Short-circuit current rating ISCCR | 25 kA |
| Signalling contact | No |
| Standards | IEC61643-11, EN61643-11 |
| Temporary surge voltage (over-voltage) - TOV | 620 V |
| Voltage type | AC |
| Stripping length | 15 mm |
| Type of connection | Screw connection |
| Stripping length, rated connection | 15 mm |
| Tightening torque, min. | 2 Nm |
| Tightening torque, max. | 3 Nm |
| Clamping range, rated connection | 16 mm² |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 2,5 mm² |
| Wire cross-section, solid, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 2,5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 50 mm² |
| Connection cross-section, stranded, min. | 2,5 mm² |
| Connection cross-section, stranded, max. | 50 mm² |
| Voltage type | AC |
| Number of poles | 4 |
| Protection degree | IP20 |
| Colour |
black
orange |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86294) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61777) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1438010000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1438010000) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35398) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |

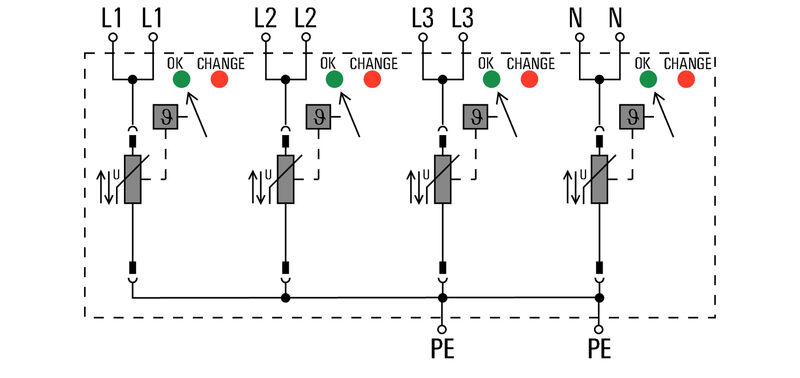

| Long specification | Multi-pin lightning arrestor according to the requirements of Class I in accordance with IEC 61643-11, EN61643-11:2013. On interface transition from 0 to 1 (acc. to IEC 1312-1), the arrestor serves as lightning protection providing equipotential bonding and is used in applications in accordance with IEC 61643-12. The use of a no-blow-out spark gap, in combination with a high-power varistor, fulfils the inspection requirements for Class I surge protection systems according to the VDEW (Association of German Power Stations) directive. The arrester is installed in a commercially available installation/electrical distribution enclosure, in the vicinity of the power-supply unit for the equipment that needs protection. The VPU I 3+1 R 400 V/25 kA is used in the TN-C and TN-C mains network. With thermal separation device on the varistor. In case of insufficient protection, the colour in the display window changes from green to red. The functional state is also displayed by a voltage-free signalling contact (changeover). Rated voltage: 400 V AC lightning test current (10/350 µs): 25 kA protection level with lightning test current < 1.9 kV 25 kA short-circuit withstand rating with max. back-up fuse of 250 A gl telecommunication output: contact: 250 V/0.5 A 48 VDC/0.1 A, type: Weidmüller VPU I 3+1 R 400 V/25 kA, Order No. 1351880000 or equivalent |
| Short specification | Class I arrester for LPL 1 with 25 kA, suitable for 400/690 V TN-CS, TT mains systems. Protection level < 1.9 kV. With remote alert, type: Weidmüller VPU I 3+1 R 400 V/25 kA, order no. 1351880000 or equivalent |
| Approvals |  |
| ROHS | Conform |
