Eigenschappen
| Order No. | 2991930000 |

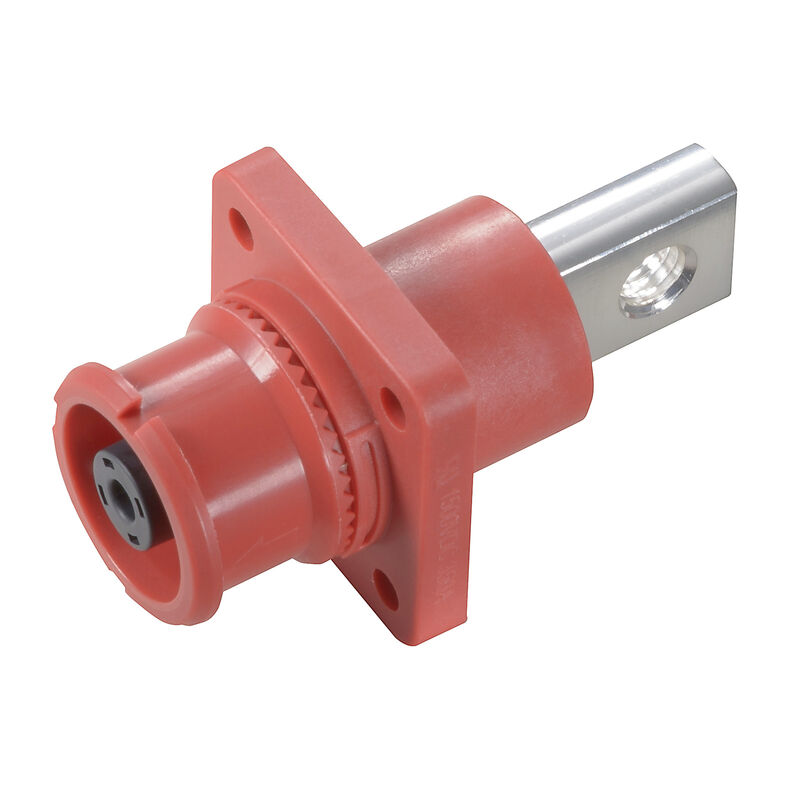

| Type | WBC-S-10RE-M8 |
| GTIN (EAN) | 4099986868779 |
| Qty. | 5 items |
| Net weight | 61,43 g |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 125 °C |
| Humidity | ≤85% RH |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Approvals | UL 4128 |
| Colour | red |
| Conductor cross-section, max. | 95 mm² |
| Contact diameter, male Ø | 10 mm |
| Material | PA 66 |
| Outer cable diameter, max. | 10 mm |
| Surface finish | silver |
| Type | Male |
| Type of connection | Screw connection |
| Operating altitude | ≤ 2000 m |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 plugged |
| Rated current | 350 A |
| Rated voltage | 1.500 V |
| Shock resistance | V2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Vibration resistance | 30g |
| Volume resistance | ≥ 5000 MΩ |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_320008) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2991930000) |
| User Documentation | [Montageanleitung_WBC_S_10_305A](https://mdcop.weidmueller.com/mediadelivery/asset/900_320930) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 10.0 | 27-44-03-12 |
| ECLASS 11.0 | 27-44-03-12 |
| ECLASS 12.0 | 27-44-03-12 |
| ECLASS 13.0 | 27-44-03-12 |
| ECLASS 14.0 | 27-44-03-12 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E529699 |
