Eigenschappen
| Order No. | 2537730000 |
| Type | WIL-TS-M12 |
| GTIN (EAN) | 4050118549188 |
| Qty. | 1 items |

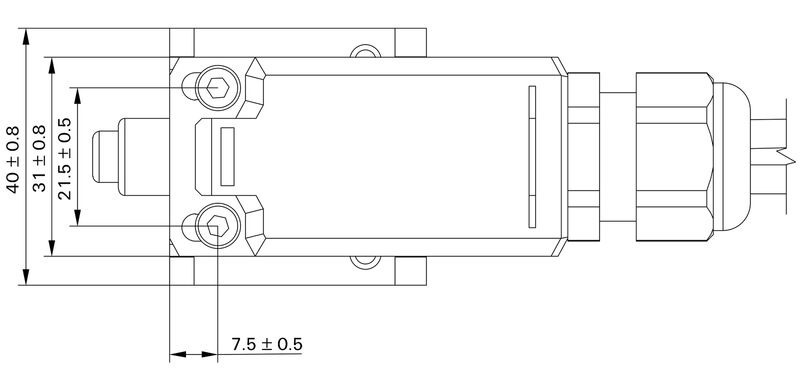

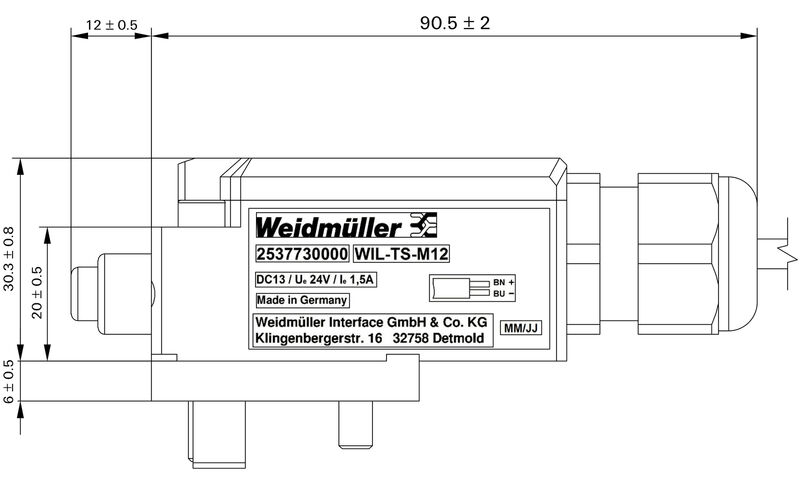

| Depth | 40 mm |
| Depth (inches) | 1,575 inch |
| Height | 36,3 mm |
| Height (inches) | 1,429 inch |
| Width | 102.5 |
| Width (inches) | 4,035 inch |
| Net weight | 120 g |
| Operating temperature | -20 - 60 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c20d50fa-e90d-470c-bef0-6f016c2e152d |
| Cable Material | PUR |
| Sheathing colour | black |

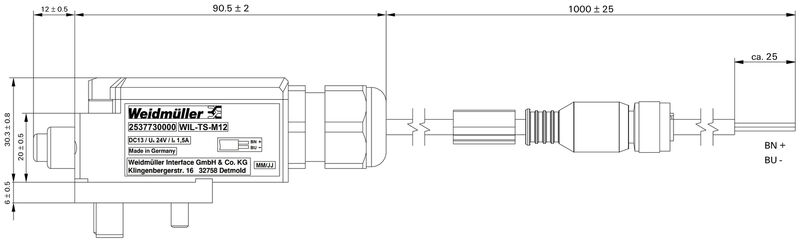

| Cable length | 0.5 |
| Core cross-section | 0,34 mm² |
| Connection thread | M12 |
| Coding | A-coded |
| Tightening torque | 0,8 Nm |

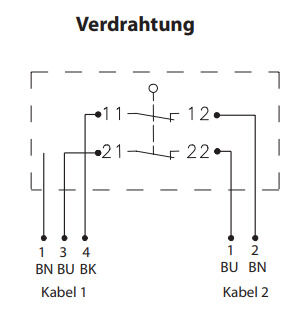

| Wiring |
PIN 4: + (black)
PIN 3: - (blue) |
| Rated voltage | 24 V DC |
| Rated current | 1.5 A |
| Type of mounting | Screw mounting |
| Drill hole spacing | 21,5 mm |
| Protection degree | IP67 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_274567) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2537730000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002591 |
| ETIM 7.0 | EC002591 |
| ETIM 8.0 | EC002591 |
| ETIM 9.0 | EC002591 |
| ECLASS 9.1 | 27-27-06-09 |
| ECLASS 10.0 | 27-27-06-09 |
| ECLASS 11.0 | 27-27-06-09 |
| ECLASS 12.0 | 27-27-06-09 |
| ECLASS 13.0 | 27-27-06-09 |
| ECLASS 14.0 | 27-27-06-09 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E197061 |
