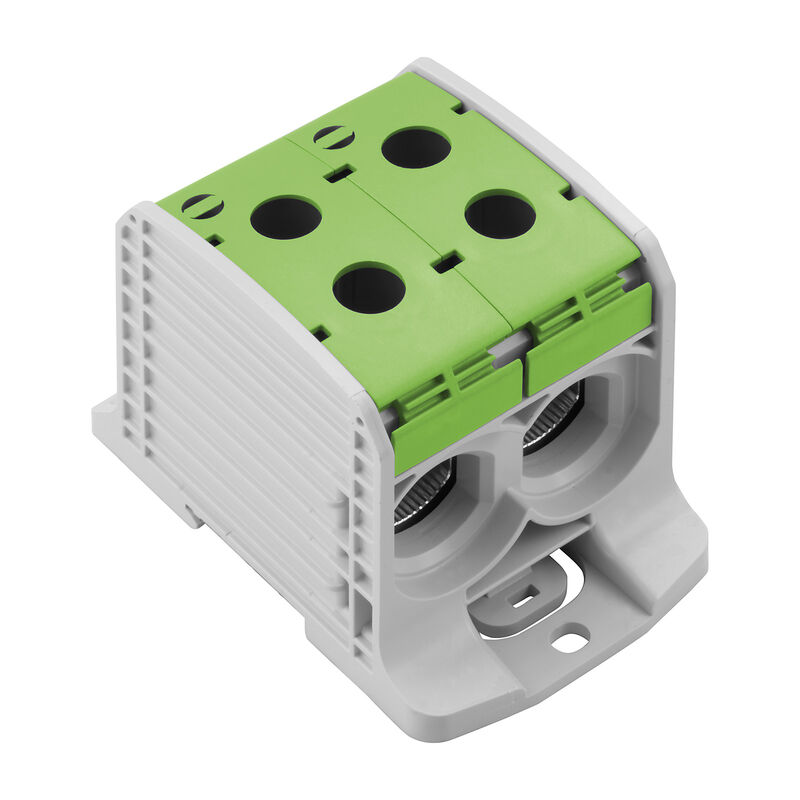

Potential distributor terminal, Screw connection, green, 185 mm², 353 A, 1000 V, Number of connections: 4, Number of levels: 1

Item No. 2502820000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 6 Related products 54
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conduttori allacciabili (altro collegamento) Conductors for clamping (rated connection) 일반 Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Potential distributor terminal, Screw connection, green, 185 mm², 353 A, 1000 V, Number of connections: 4, Number of levels: 1
Order No.
2502820000
Type
WPD 232 2X185/2X185 GN
GTIN (EAN)
4050118516647
Qty.
1 items

Dimensions and weights

Depth
73.5 mm
Depth (inches)
2.894 inch
Height
105 mm
Height (inches)
4.134 inch
Width
67.6 mm
Width (inches)
2.661 inch
Net weight
406 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
green
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
CNEX18ATEX0016U
Certificate No. (IECEX)
IECEXNEX18.0010U
Max. spänning (ATEX)
1100 V
Current (ATEX)
353 A
Wire cross section max. (ATEX)
185 mm²
Max. voltage (IECEX)
1100 V
Current (IECEX)
353 A

System specifications

Version
Screw connection
Abschlussplatte erforderlich
No
Количество независимых точек подключения
1
Szintek száma
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE connection
No
Carril de montaje
TS 35
PE function
No

Additional technical data

Istruzioni di montaggio
Terminal rail / mounting plate
장착 유형
Snap-on
폭발 테스트 버전
Yes

Conduttori allacciabili (altro collegamento)

Connection type, additional connection
스크류 결선

Conductors for clamping (rated connection)

Clamping range, max.
185 mm²
Clamping range, min.
25 mm²
Connection cross-section, stranded, max.
185 mm²
Connection cross-section, stranded, min.
25 mm²
Connection direction
laterale
Number of connections
4
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
kcmil 300
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section, finely stranded, max.
185 mm²
Wire connection cross section, finely stranded, min.
25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
150 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
25 mm²
Wire connection cross-section, solid core, max.
185 mm²
Wire connection cross-section, solid core, min.
25 mm²

일반

Installation advice
Terminal rail / mounting plate
Mounting rail
TS 35
Number of poles
1
Standards
IEC 60947-7-1
UL 1059
CSA
Wire connection cross section AWG, max.
kcmil 300
Wire connection cross section AWG, min.
AWG 16

Rating data

Sección nominal
185 mm²
Rated voltage
1,000 V
Tension nominale AC
1,000 V
Rated DC voltage
1,000 V
Nennstrom
353 A
Current at maximum wires
353 A
Normas
IEC 60947-7-1
UL 1059
CSA
Volume resistance according to IEC 60947-7-x
0.09 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
11.3 W
Short-time withstand current resistance
8/20µs with 50 kA
Categoría de sobretensión
III
Grado de polución
3

UL rating data

Certificate No. (cURus)
E60693

Important note

Product information
You will find additional information in the downloadsection of the onlinecatalogue

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
