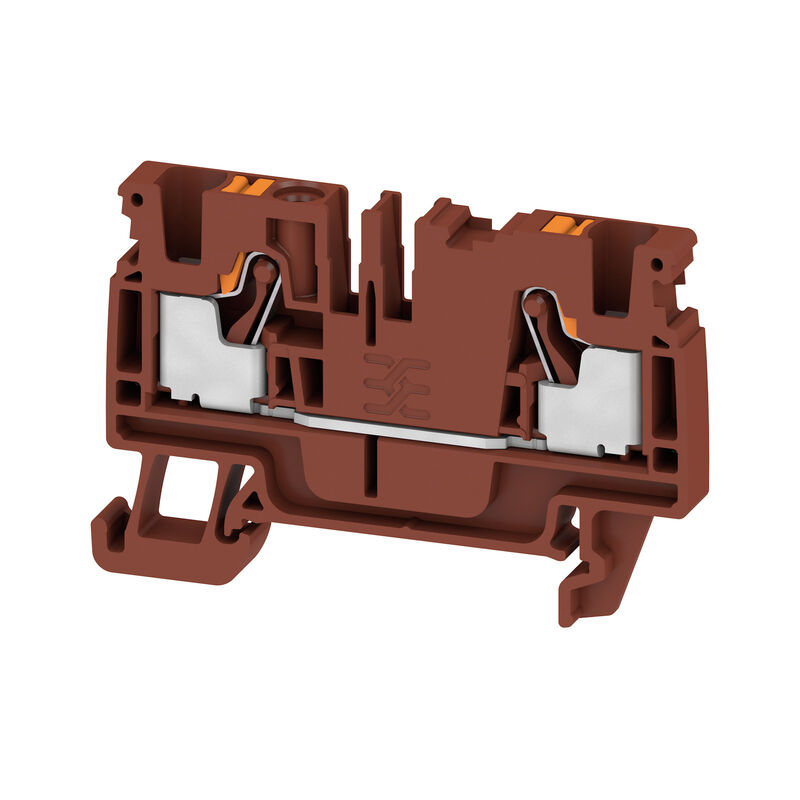

A2C 4 BR

Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, brown

Product ID 2534370000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 63 Verwante producten 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, brown
Order No.
2534370000
Type
A2C 4 BR
GTIN (EAN)
4050118546064
Qty.
100 items

Dimensions and weights

Depth
39,5 mm
Depth (inches)
1,555 inch
Depth including DIN rail
40,5 mm
Height
60 mm
Height (inches)
2,362 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
9,598 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Materiał podstawowy
Wemid
Barwny
brown
Colour of operational elements
orange
UL 94 éghetőségi osztály
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
28 A
Wire cross section max. (ATEX)
4 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
28 A
Wire cross section max. (IECEX)
4 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

niezbędna płyta zamykająca
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Keresztkötött szintek belül
No
Szyna montażowa
TS 35
Функция N
No
PE function
No
Funkcja PEN
No

Additional technical data

Bepattintható csapokkal
No
bloccabile
No
Nyitott oldala
right
rodzaj montażu
TS 35
wersja przetestowana pod kątem eksplozji
Yes
Wskazówka montażowa
Rail
장착물 유형
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
6 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, finely stranded, min.
0,14 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
2
Stripping length
12 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1,5 mm²
Tube length for twin wire-end ferrule acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1,5 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
Tube length for wire-end ferrule without plastic collar acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    10 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    7 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    9 mm
  • Tube length, max.:
    15 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      9 mm
    • max.:
      15 mm
  • Cross-section for conductor connection:
    • min.:
      4 mm²
    • max.:
      6 mm²
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
30 A
Current size C (CSA)
30 A
Průřez vodiče min. (CSA)
26 AWG
Velikost proudu D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
10 AWG

General

Installation advice
Rail
Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Przekrój pomiarowy
4 mm²
Napięcie znamionowe
800 V
Znamionowe napięcie stałe
800 V
Znamionowe natężenie prądu
32 A
Current at maximum wires
32 A
Normy
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1 mΩ
Номинальное импульсное напряжение
8 kV
Moc stratna zgodnie z wymaganiami IEC 60947-7-x
1,02 W
Szennyezés súlyossága
3
Túlfeszültség kategória
III

UL rating data

B áram nagyság (cURus)
30 A
C feszültség nagyság (cURus)
600 V
C áram nagyság (cURus)
30 A
D feszültség nagyság (cURus)
600 V
D áram nagyság (cURus)
5 A
Taille du conducteur Câblage d'usine max. (cURus)
10 AWG
Tanúsítvány száma (cURus)
E60693
Tensión Gr B (cURus)
600 V
Vezetékméret, gyári vezetékezés, min. (cURus)
26 AWG
Vezetékméret, terepi vezetékezés, min. (cURus)
26 AWG
Vezetékméret, terepi vezetékzés max. (cURus)
10 AWG

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
