ACT20D-LCD-CI-ILP

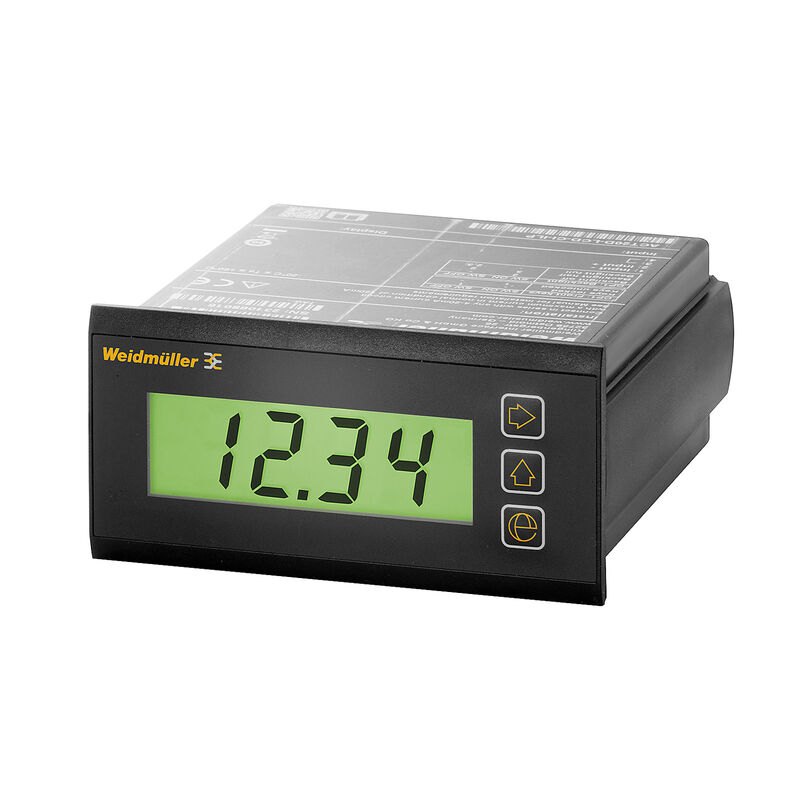

Product image
ACT20D-LCD-CI-ILP
ACT20D-LCD-CI-ILP

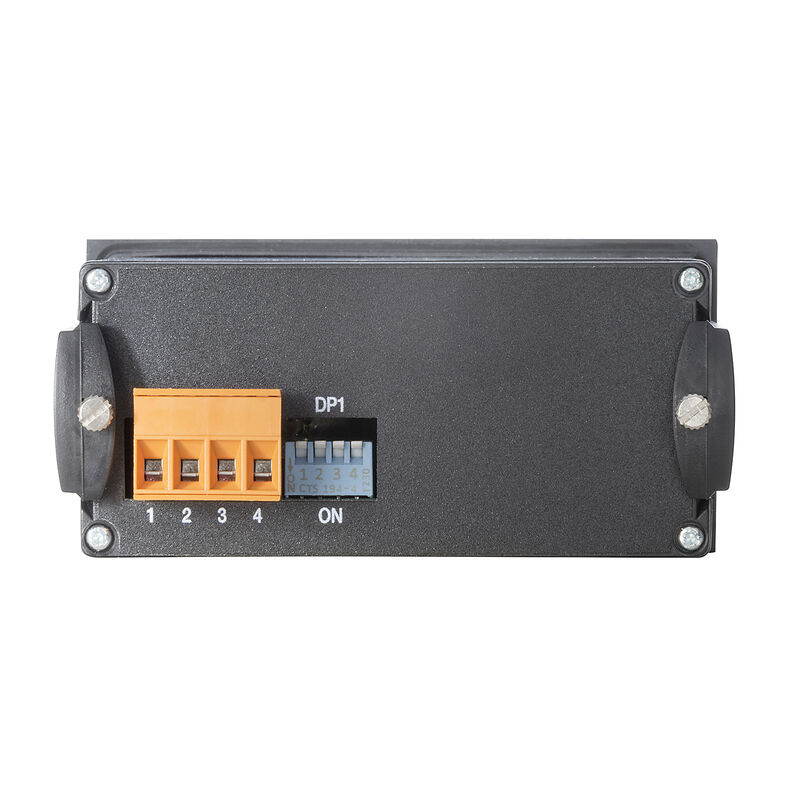

Dimensioned drawing
ACT20D-LCD-CI-ILP

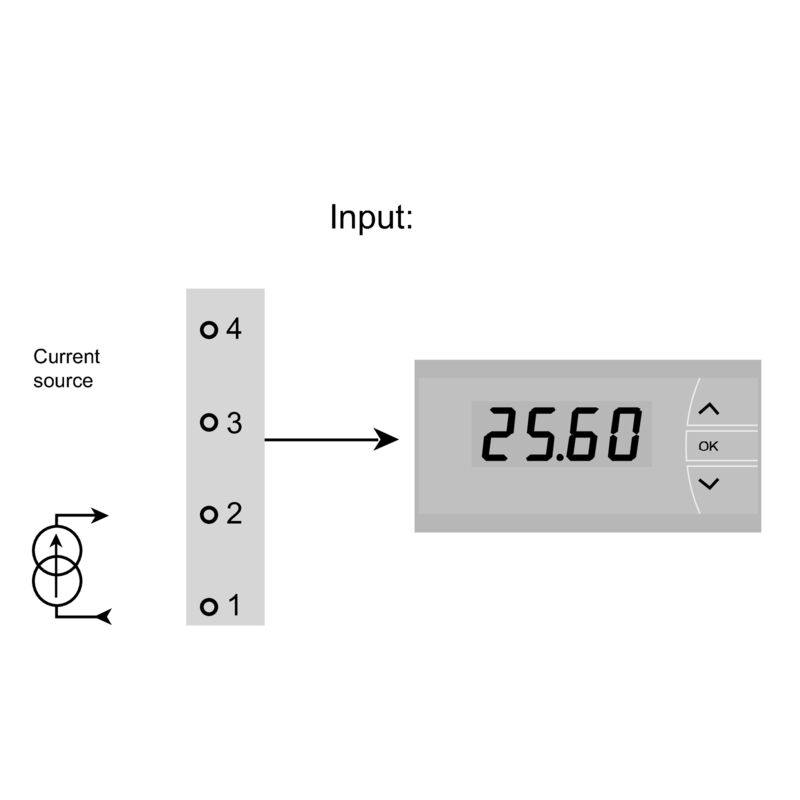

Wiring diagram
ACT20D-LCD-CI-ILP

ACT20D-LCD-CI-ILP

Display, Input : 4-20 mA, (loop powered), HART® transparency, Output : Display

Item No. 2920000000
Download data sheet Engineering Support Product Downloads
Accessories 1 Related products 1
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Display General data Input Connection data Classifications Approvals

General ordering data

Version
Display, Input : 4-20 mA, (loop powered), HART® transparency, Output : Display
Order No.
2920000000
Type
ACT20D-LCD-CI-ILP
GTIN (EAN)
4099986580336
Qty.
1  items

Dimensions and weights

Depth
120  mm
Depth (inches)
4.724  inch
Height
48  mm
Height (inches)
1.89  inch
Width
96  mm
Width (inches)
3.78  inch
Net weight
262  g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Humidity
0...95 % (no condensation)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
f4905d12-f516-4eb5-90a8-8c87685bc956

Display

Adjustment of display backlighting
0%
50%
100%
Decimal point
18888, 1.8888, 18.888, 188.88, 1888.8
Dimmable
Yes
Display range
-9999...9999
Display value
Current
Scaling
Variable
Type
4-character, LCD display, 16 mm

General data

Accuracy
<0.1 % of measuring range
Configuration
Front push-button
DIP switch to lock / unlock the front push-button
DIN Rail compatibility
No
HART® transparency supported
Yes
Protection degree
IP20
IP65 (in plugged condition)
IP65
Step response time
≤1s
Temperature coefficient
≤ 0.01 °C of measuring range / °C
Type of connection
Tension clamp connection with actuator
Type of mounting
Frontpanel mounting
Front mounting
Voltage supply
Loop powered, via 4…20 mA input

Input

HART® transparency supported
Yes
Input current
4…20mA
Input measurement range
3.6 … 23 mA (NAMUR NE43 conform)
Number of inputs
1
Response time
≤ 1 s
Sensor
Current source
4- wire sensor (with own power supply)
Type of signal forwarding according to HART®
unchanged
Voltage drop, current input
without backlight <1.5 V @ 20 mA
half backlight <6.5 V @ 20 mA
full backlight <10.5 V @ 20 mA

Connection data

Wire connection method
Screw connection
Type of connection
Tension clamp connection with actuator
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section, finely stranded, min.
0.13  mm²
Wire connection cross section, finely stranded, max.
2.8  mm²

Classifications

ETIM 6.0
EC000677
ETIM 7.0
EC000677
ETIM 8.0
EC000677
ETIM 9.0
EC000677
ETIM 10.0
EC000677
ECLASS 9.0
27-14-31-10
ECLASS 9.1
27-21-03-01
ECLASS 10.0
27-14-31-10
ECLASS 11.0
27-14-31-10
ECLASS 12.0
27-14-31-10
ECLASS 13.0
27-14-31-10
ECLASS 14.0
27-14-31-10
ECLASS 15.0
27-14-31-10

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform
