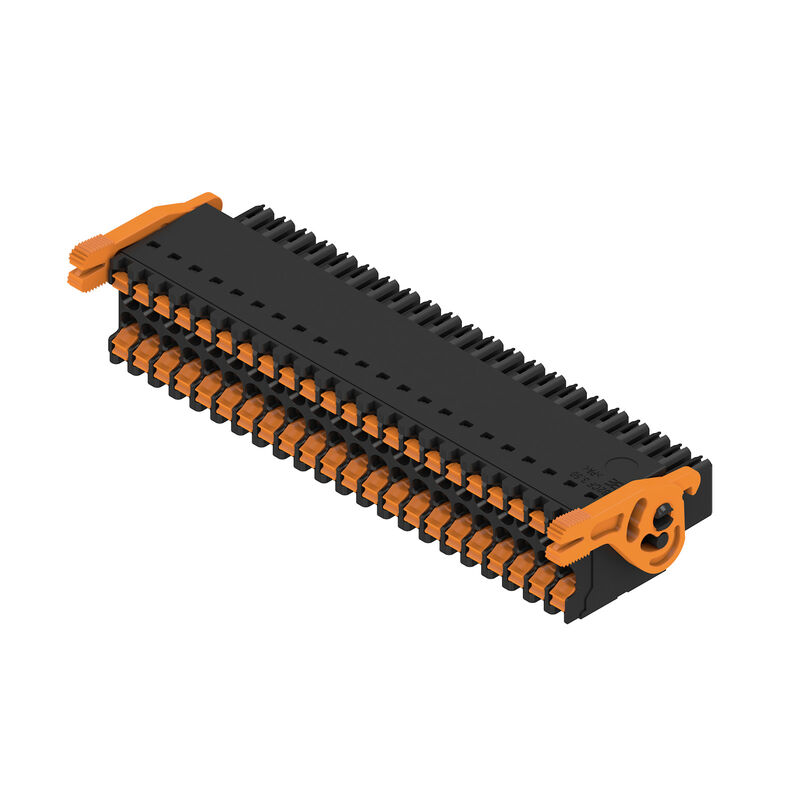

B2CF 3.50/44/180LR SN BK BX
Product image

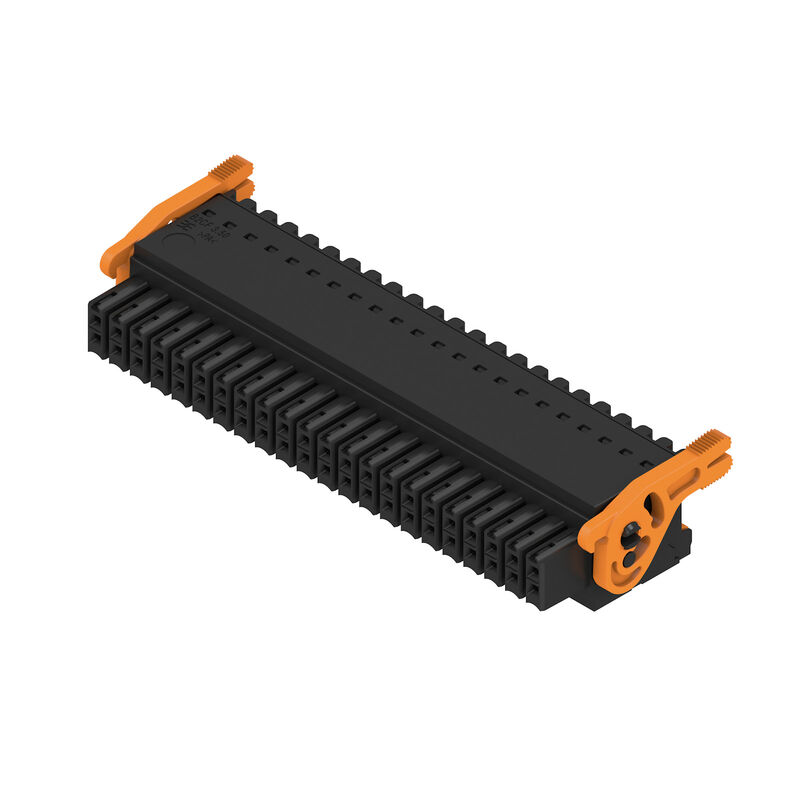

B2CF 3.50/44/180LR SN BK BX
Product image
B2CF 3.50/44/180LR SN BK BX
Dimensional drawing
B2CF 3.50/44/180LR SN BK BX
Graph
B2CF 3.50/44/180LR SN BK BX
Product benefits
Solid PUSH IN contact
Safe and durable
B2CF 3.50/44/180LR SN BK BX
Product benefits
Large connection cross-section
Up to 1.5 mm possible with ease
B2CF 3.50/44/180LR SN BK BX
Product benefits
Fast PUSH IN connection
Tool-free and touch-safe
B2CF 3.50/44/180LR SN BK BX
Example of use

B2CF 3.50/44/180LR SN BK BX

Bu ürün yakında mevcut olmayacak.

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 44, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box

Ürün No. 2558700000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 45
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 44, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box
Order No.
2558700000
Tipo
B2CF 3.50/44/180LR SN BK BX
GTIN (EAN)
4050118669480
Qty.
18 adet
Product data
IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²
UL: 300 V / 9.5 A / AWG 30 - AWG 16
Packaging
Box

Dimensions and weights

Depth
29,9 mm
Depth (inches)
1,177 inch
Altura
17,25 mm
Height (inches)
0,679 inch
Anchura
83,4 mm
Width (inches)
3,283 inch
Net weight
29,652 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Produktfamilie
OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
Anschlussart
Field connection
Leiteranschlusstechnik
PUSH IN with actuator
Raster in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Conductor outlet direction
180°
Number of poles
44
L1 in mm
73 mm
L1 in Zoll
2,898 "
Number of rows
1
Pin series quantity
2
Rated cross-section
15 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP20
when fully mounted
Can be coded
Yes
Stripping length
10 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
3,5 N
Pulling force/pole, max.
3,5 N

Material data

Insulating material
PA 66 GF 30
Colour
black
Colour of operational elements
orange
Tabela kolorów (podobny)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 600
Insulation resistance
≥ 108 Ω
UL 94 flammability rating
V-0
접점 재질
Copper alloy
Поверхность контакта
tinned
Struktura warstwowa wtyku
2...5 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-40 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Clamping range, min.
0,14 mm²
Clamping range, max.
1,5 mm²
Section de raccordement du conducteur, AWG, min.
AWG 30
Sezione di collegamento cavo AWG, max.
AWG 16
Solid, min. H05(07) V-U
0,14 mm²
Rigide, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,14 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,14 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,14 mm²
페럴 포함, DIN 46228 pt 1, 최대
1,5 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,14 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9028240000
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025780000
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025790000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028270000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028290000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028320000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
Tekst referencyjny
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
13,4 A
Rated current, max. number of poles (Tu=20°C)
10 A
Rated current, min. number of poles (Tu=40°C)
12 A
Rated current, max. number of poles (Tu=40°C)
9 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Märkstötspänning vid överspänningsk./Nedsmutsningsgrad III/3
2,5 kV
odporność na zwarcia
3 x 1s with 80 A

Rated data acc. to CSA

Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
9,5 A
Rated current (Use group C / CSA)
9,5 A
Rated current (Use group D / CSA)
9,5 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 16

Rated data acc. to UL 1059

Nennspannung (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
50 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
9,5 A
Rated current (Use group C / UL 1059)
9,5 A
Rated current (Use group D / UL 1059)
9,5 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 16

Packing

Packaging
Box
VPE length
338 mm
VPE width
130 mm
VPE height
33 mm

Type tests

Test: Durability of markings
  • Standard:
    IEC 61984 section 6.2 and 7.3.2 / 10.11 taking pattern from IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking cULus
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Max. outer diameter of the conductor 2.6 mm
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
