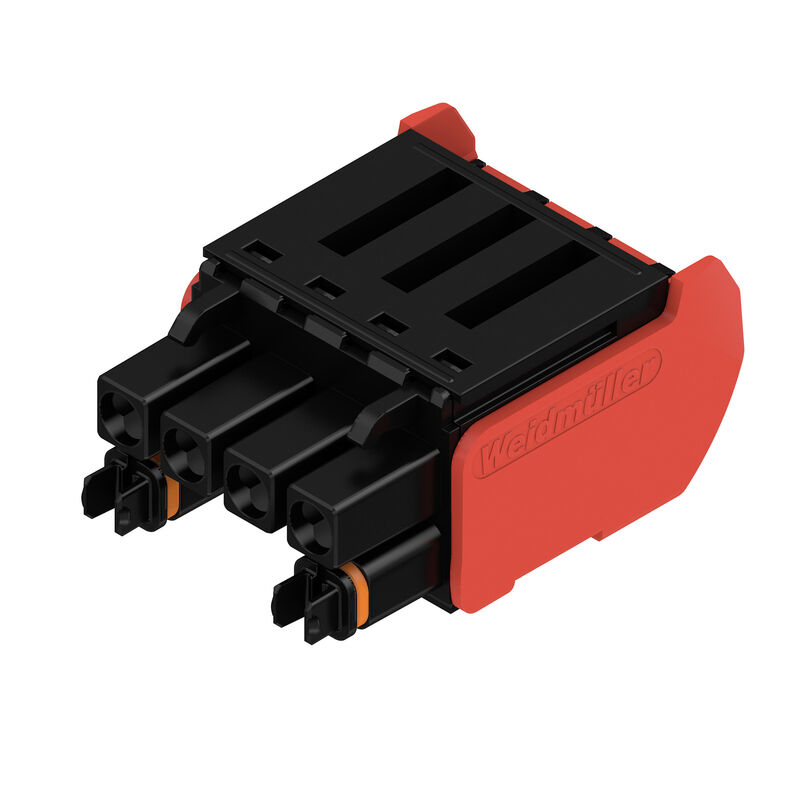

BHF 5.00/04/180LH BK/RD
Product image

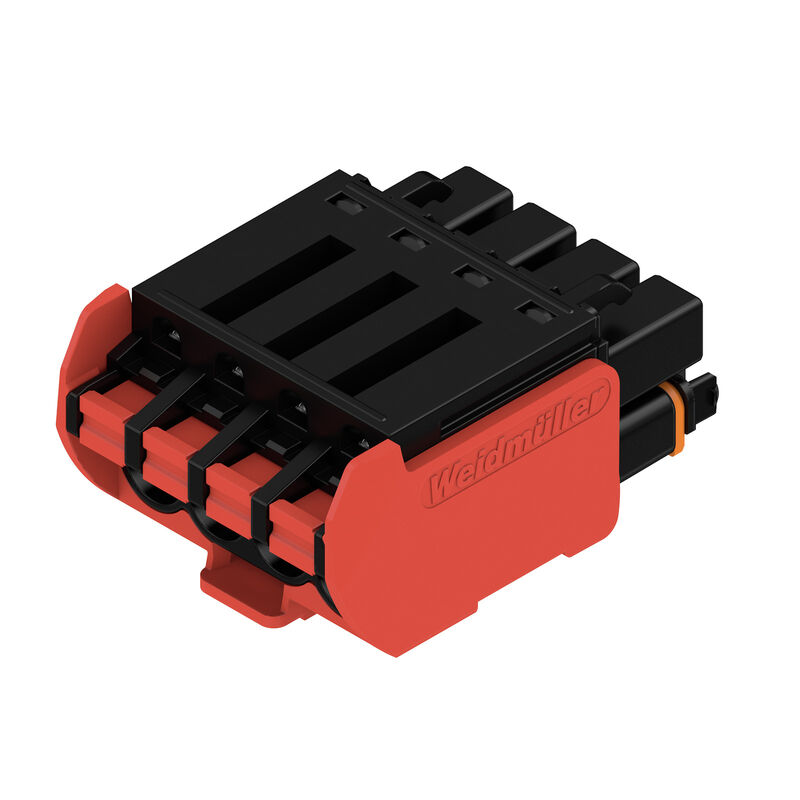

BHF 5.00/04/180LH BK/RD
Product image
BHF 5.00/04/180LH BK/RD
Product image
BHF 5.00/04/180LH BK/RD
Product benefits
coding
BHF 5.00/04/180LH BK/RD
Wiring example
coding
BHF 5.00/04/180LH BK/RD
Example of use

BHF 5.00/04/180LH BK/RD

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box

Ürün No. 2555620000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 2 aksesuarıdır 14 Şunun karşı parçasıdır 12 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Material data General data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box
Order No.
2555620000
Type
BHF 5.00/04/180LH BK/RD
GTIN (EAN)
4050118565683
Qty.
78 adet
Product data
IEC: 400 V / 10 A / 0.2 - 2.5 mm²
UL: 300 V / 10 A / AWG 26 - AWG 14
Packaging
Box

Dimensions and weights

Depth
32,4 mm
Depth (inches)
1,276 inch
Height
16,4 mm
Height (inches)
0,646 inch
Width
22,5 mm
Width (inches)
0,886 inch
Length
0 mm
Net weight
9,14 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Housing - series CH20M
Type of connection
Field connection
Wire connection method
PUSH IN with actuator
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Conductor outlet direction
180°
Number of poles
4
L1 in mm
15 mm
L1 in inches
0,591 "
Number of rows
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from back-of-hand touch
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Avisoleringslängd
10 mm
Screwdriver blade
0.6 x 3.5
Plugging cycles
25

Material data

Insulating material
PA 66 GF 30
Barwny
black
Colour chart (similar)
RAL 9011
grupa materiałów izolacyjnych
I
Porównywalny wskaźnik śledzenia (CTI)
600 ≤ CTI
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Wire connection cross section AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 14
jednodrutowe, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
1,5 mm²
Stranded, min. H07V-R
0,2 mm²
Stranded, max. H07V-R
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
플라스틱 소매 페럴 포함, DIN 46228 pt 4, 최대
2,5 mm²
érvéghüvellyel, DIN 46228 1. pont, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,3 mm²
Sprawdzian trzpieniowy EN 60999 a x b; ø
2.8 mm x 2.4 mm; 3.0 mm
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
10 A
Rated current, min. number of poles (Tu=40°C)
9 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
4 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3
4 kV
Clearance, min.
3 mm
Distancia de fuga, mín.
3,2 mm

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-70153051
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Rated current (Use group C / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 14
Odniesienie do wartości znamionowych
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
50 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group C / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 14

Material data

Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66 GF 30
Insulating material group
I
UL 94 flammability rating
V-0

General data

Colour
black
Colour chart (similar)
RAL 9011
Protection degree
IP20

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
