BVZ 7.62HP/02/180F SN BK BX

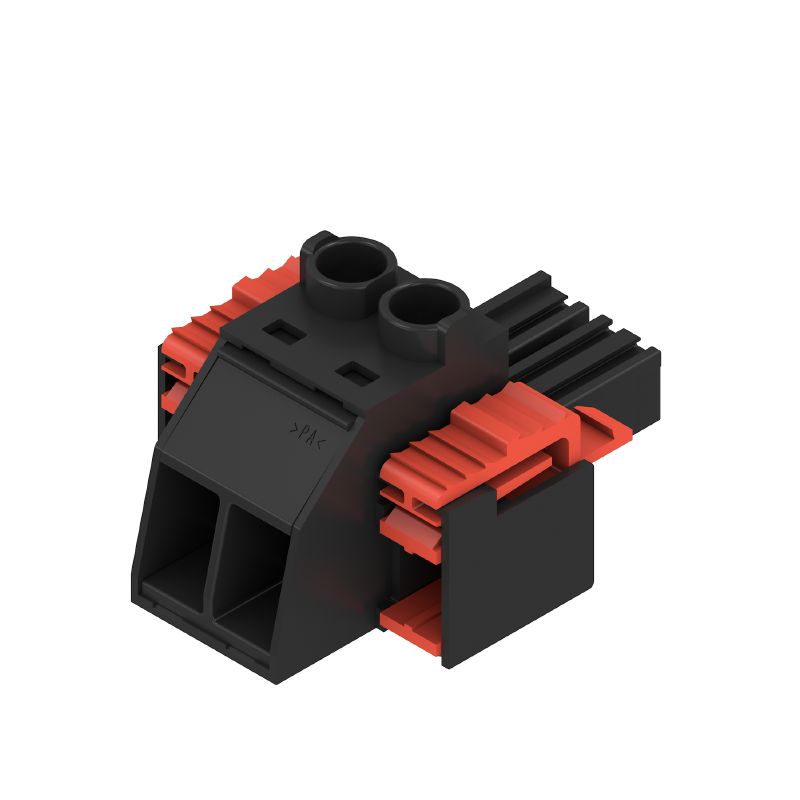

Product image
BVZ 7.62HP/02/180F SN BK BX
Product image
BVZ 7.62HP/02/180F SN BK BX
Dimensional drawing
BVZ 7.62HP/02/180F SN BK BX
Graph
BVZ 7.62HP/02/180F SN BK BX
Graph

BVZ 7.62HP/02/180F SN BK BX

Kretskortsstickanslutning, Hylsstickpropp, 7.62 mm, Antal poler: 2, 180°, Klämbygelanslutning, Anslutningsområde, max. : 10 mm², Box

Tuotteen tunnus 1930050000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 4 Vastineet 8 Samankaltaiset tuotteet 11
Сертификаты Allmänna beställningsdata Размеры и массы Miljööverenstämmelse för produkt Systemvärden Данные о материалах Anslutningsbara ledare Номинальные характеристики по IEC Номинальные характеристики по CSA Rated data acc. to UL 1059 Упаковка Type tests Important note Classifications

Сертификаты

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

Allmänna beställningsdata

Wersja
Kretskortsstickanslutning, Hylsstickpropp, 7.62 mm, Antal poler: 2, 180°, Klämbygelanslutning, Anslutningsområde, max. : 10 mm², Box
Nr zam.
1930050000
Typ
BVZ 7.62HP/02/180F SN BK BX
GTIN (EAN)
4032248579822
Ilość
100 items
Product data
IEC: 1000 V / 57 A / 0.2 - 10 mm²
UL: 600 V / 40.5 A / AWG 24 - AWG 8
Packaging
Box

Размеры и массы

Głębokość
42,1 mm
Głębokość (cale)
1,657 inch
Wysokość
23,1 mm
Height (inches)
0,909 inch
Szerokość
30,48 mm
Width (inches)
1,2 inch
Masa netto
13,6 g

Miljööverenstämmelse för produkt

Status zgodności z dyrektywą RoHS
Kompatibel utan undantag
REACH SVHC
No SVHC above 0.1 wt%

Systemvärden

Product family
OMNIMATE Power – serie BV/SV 7.62HP
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Conductor outlet direction
180°
Number of poles
2
L1 in mm
7,62 mm
L1 in inches
0,3 "
Number of rows
1
Pin series quantity
1
Rated cross-section
6 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
Volume resistance
4.50 mΩ
Can be coded
Yes
Długość odizolowania
12 mm
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,6 Nm
Clamping screw
M 3
Screwdriver blade
0.6 x 3.5
Plugging cycles
25
Plugging force/pole, max.
16,5 N
Pulling force/pole, max.
11 N

Данные о материалах

Materiał izolacyjny
PA GF
Barwny
svart
Tabela kolorów (podobny)
RAL 9011
grupa materiałów izolacyjnych
II
Porównywalny wskaźnik śledzenia (CTI)
≥ 500
UL 94 flammability rating
V-0
podstawowy materiał styku
Copper alloy
Materiał styków
Copper alloy
Powierzchnia styku
tinned
Struktura warstwowa wtyku
6...8 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
125 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Anslutningsbara ledare

Zakres zaciskania, min.
0,2 mm²
Zakres zaciskania, maks.
10 mm²
przekrój przyłącza przewodu AWG, min.
AWG 24
przekrój przyłączeniowy przewodu AWG, maks.
AWG 8
jednodrutowe, min. H05(07) V-U
0,2 mm²
jednodrutowe, maks. H05(07) V-U
6 mm²
cienkodrutowe, min. H05(07) V-K
0,2 mm²
cienkodrutowe, maks. H05(07) V-K
10 mm²
z AEH z kołnierzem DIN 46 228/4, min.
0,2 mm²
z AEH z kołnierzem DIN 46 228/4, maks.
6 mm²
z tulejką zaciskową, DIN 46228 pt 1, min.
0,5 mm²
z końcówką kablową wg DIN 46 228/1, maks.
6 mm²
Sprawdzian trzpieniowy EN 60999 a x b; ø
2.8 mm x 2.0 mm; 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      1076980000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9025930000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9025910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
Tekst referencyjny
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Номинальные характеристики по IEC

пройдены испытания по стандарту
IEC 60664-1
IEC 61984
Prąd znamionowy, min. liczba biegunów (Tu=20°C)
57 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
54 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
51 A
Prąd znamionowy, maks. liczba biegunów (Tu=40°C)
41 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
1.000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/2
1.000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/3
800 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
6.000 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/2
8 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/3
8 kV
odporność na zwarcia
3 x 1s with 420 A
Odstęp izolacyjny po izolacji, min.
13,8 mm
Odstęp izolacyjny powietrzny, min.
10,2 mm

Номинальные характеристики по CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1534443
Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
40,5 A
Rated current (Use group C / CSA)
40,5 A
Rated current (Use group D / CSA)
5 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 8
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated voltage (Use group F / UL 1059)
1.000 V
Rated current (Use group B / UL 1059)
40,5 A
Rated current (Use group C / UL 1059)
40,5 A
Rated current (Use group D / UL 1059)
5 A
Rated current (Use group F / UL 1059)
40,5 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 8
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Упаковка

Packaging
Ящик
VPE length
334 mm
VPE width
149 mm
VPE height
89 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, type of material
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN IEC 512 part 7 section 5 / 05.94
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 6 mm²
    • Type of conductor and conductor cross-section:
      stranded 6 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 10/1
    • Type of conductor and conductor cross-section:
      AWG 10/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    1.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 6 mm²
    • Type of conductor and conductor cross-section:
      stranded 6 mm²
    • Type of conductor and conductor cross-section:
      AWG 10/1
    • Type of conductor and conductor cross-section:
      AWG 10/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    ≥80 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 6 mm²
    • Type of conductor and conductor cross-section:
      stranded 6 mm²
    • Type of conductor and conductor cross-section:
      AWG 10/1
    • Type of conductor and conductor cross-section:
      AWG 10/19
  • Evaluation:
    passed

Important note

Zgodność IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Uwagi
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
