DLI 2.5/LD-RT/NPN -+ DB

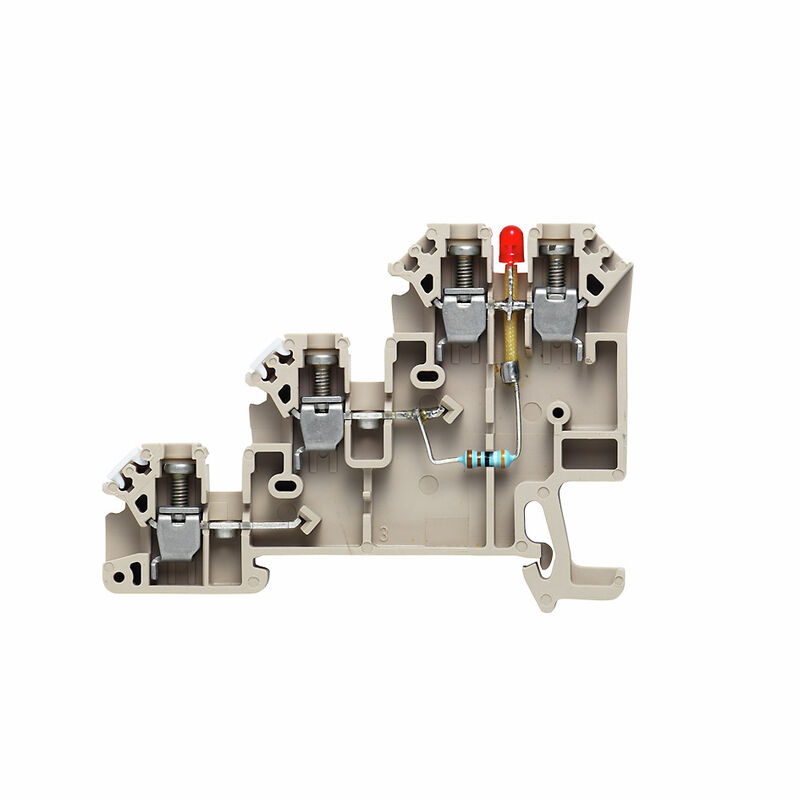

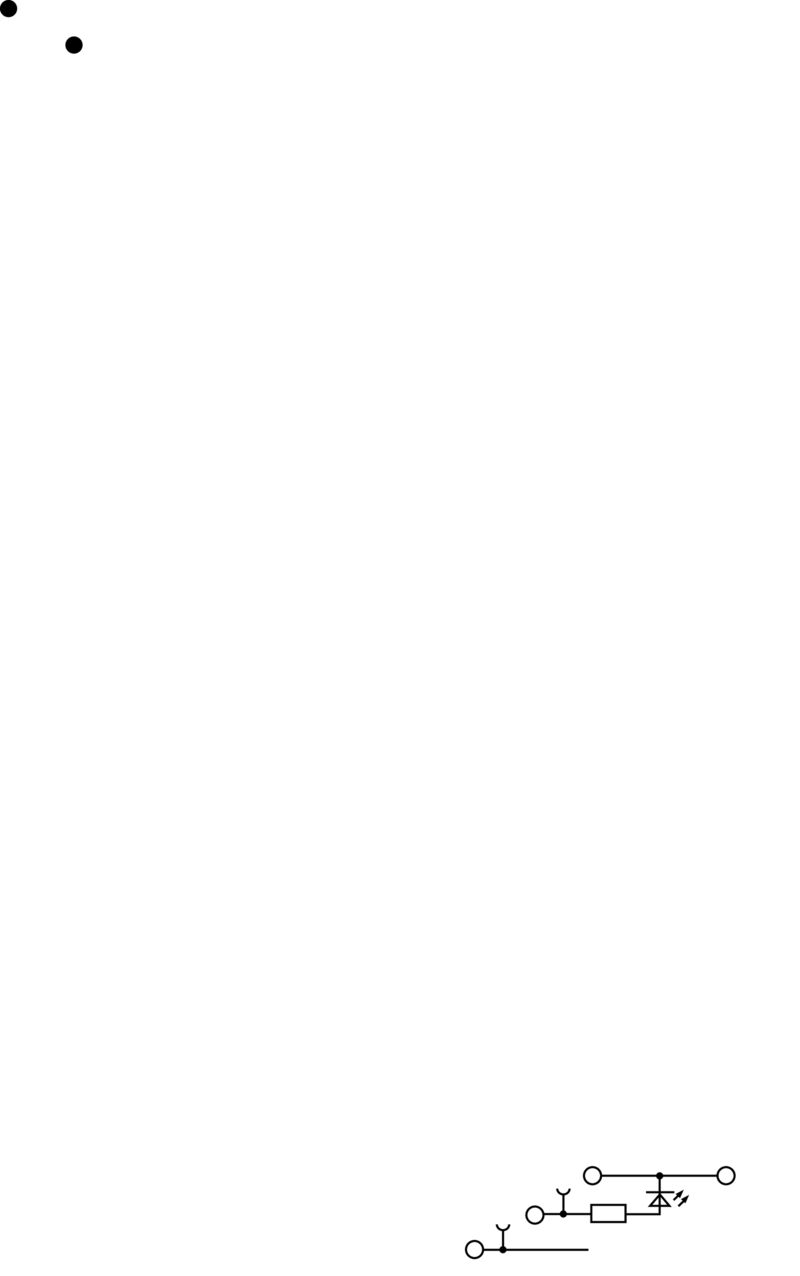

Illustrazione del prodotto
DLI 2.5/LD-RT/NPN -+ DB

DLI 2.5/LD-RT/NPN -+ DB

Initiator/actuator terminal, Screw connection, dark beige, 2.5 mm², 24 A, 30 V, Number of connections: 4, Number of levels: 3, TS 35

Ürün No. 1783950000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 16 İlgili ürünler 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr. (UR)
E60693

General ordering data

Version
Initiator/actuator terminal, Screw connection, dark beige, 2.5 mm², 24 A, 30 V, Number of connections: 4, Number of levels: 3, TS 35
Art.nr.
1783950000
Type
DLI 2.5/LD-RT/NPN -+ DB
GTIN (EAN)
4032248212590
Förp.
50 adet

Dimensions and weights

Depth
48,5 mm
Depth (inches)
1,909 inch
Depth including DIN rail
49 mm
Height
66 mm
Height (inches)
2,598 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
10,75 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Omgivningstemperatur
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
7cI
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Screw connection
with LED
One end without connector
End cover plate required
Yes
Number of potentials
2
Number of levels
3
Number of clamping points per level
1
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Electronic component
red LED
Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Ledardiameter, fintrådig med ändhylsa DIN 46228/1, ytterligare anslutning, max.
2,5 mm²

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clampable conductor
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      solid, H05(07) V-U
    • min.:
      0,5 mm²
    • max.:
      4 mm²
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        7 mm
      • max.:
        7 mm
      • nominal:
        7 mm
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,6 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      stranded, H07V-R
    • min.:
      1,5 mm²
    • max.:
      4 mm²
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        7 mm
      • max.:
        7 mm
      • nominal:
        7 mm
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,6 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      flexible, H05(07) V-K
    • min.:
      0,5 mm²
    • max.:
      4 mm²
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        7 mm
      • max.:
        7 mm
      • nominal:
        7 mm
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,6 Nm
Clamping range, max.
4 mm²
Clamping range, min.
0,13 mm²
Clamping screw
M 2.5
Connection cross-section, finely stranded, min.
0,13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
7 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,4 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

CSA rating data

Certificate No. (CSA)
12400-134
Current size B (CSA)
10 A
Current size C (CSA)
10 A
Current size D (CSA)
10 A
Voltage size B (CSA)
30 V
Voltage size C (CSA)
30 V
Voltage size D (CSA)
30 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

General

Ledardiameter, AWG, max
AWG 12
Ledardiameter, AWG, min.
AWG 26
Montageskena obestyckad
TS 35
Normer
IEC 60947-7-1

Rating data

Rated cross-section
2,5 mm²
Rated voltage
30 V
Rated DC voltage
30 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
0.8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG

Classifications

ETIM 8.0
EC000900
ETIM 9.0
EC000900
ETIM 10.0
EC000900
ECLASS 14.0
27-25-01-12
ECLASS 15.0
27-25-01-12
