DRL173110L
D-SERIES DRL, Relay, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 16 A, Flat blade connections (4.8 mm x 0.5 mm), Test button available: No
Item No.
2765130000

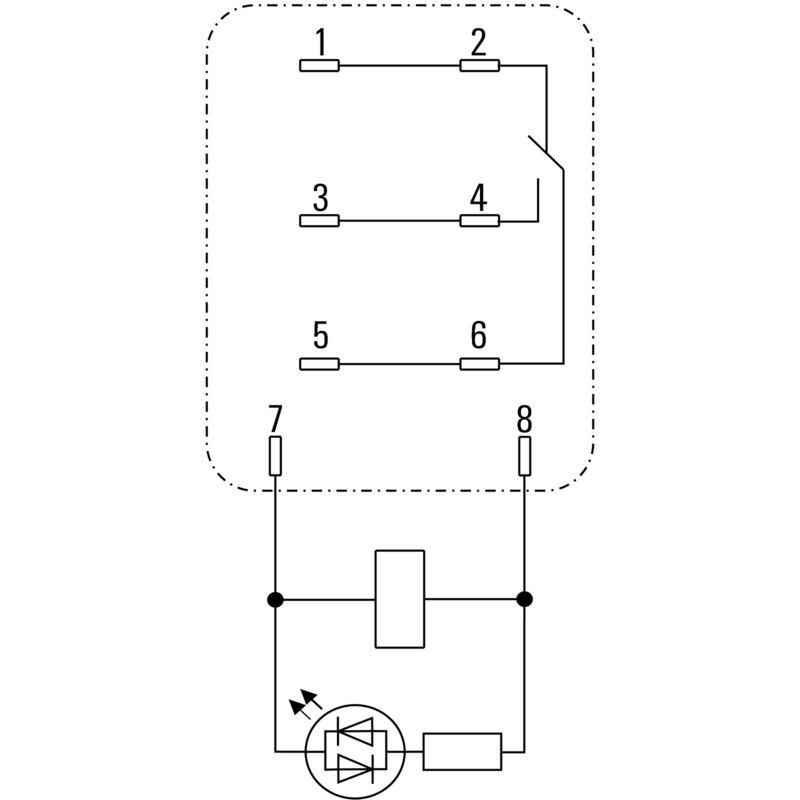

Properties
| Version | D-SERIES DRL, Relay, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 16 A, Flat blade connections (4.8 mm x 0.5 mm), Test button available: No |
| Order No. | 2765130000 |
| Type | DRL173110L |
| GTIN (EAN) | 4064675077060 |
| Qty. | 20 items |
| Depth | 36 mm |
| Depth (inches) | 1.417 inch |
| Height | 28 mm |
| Height (inches) | 1.102 inch |
| Width | 21.5 mm |
| Width (inches) | 0.846 inch |
| Net weight | 33.85 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 35 % to 85 % relative humidity level |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E312083 |
| Rated control voltage | 110 V DC |
| Rated current DC | 10 mA |
| Power rating | 0.9 W |
| Coil resistance | 11000 Ω ± 10 % |
| Status indicator | Green LED |
| Rated switching voltage | 250 V AC |
| Continuous current | 16 A |
| Max. switching frequency at rated load | 0.1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power | 10 mA @ 12 V |
| Inrush current | 80 A / 50 ms |
| AC switching capacity (resistive), max. | 4000 VA |
| DC switching capacity (resistive), max. | 480 W @ 24 V |
| Switch-on delay | <20 ms |
| Switch-off delay | <20 ms |
| Contact type | 1 CO contact (AgSnO) |
| Mechanical service life | 10 x 106 switching cycles |
| Test button available | No |
| Mechanical switch position indicator | Yes |
| Colour | Transparent |
| UL94 flammability rating component |
|
| Rated voltage | 250 V |
| Pollution severity | 3 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 4 mm |
| Dielectric strength for control side - load side | 2.5 kVeff/ 1 min |
| Dielectric strength of neighbouring contacts | 2 kVeff / 1 min |
| Dielectric strength of open contact | 1.2 kVeff /1 min. |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (cURus) | E312083 |
| Wire connection method | Flat blade connections (4.8 mm x 0.5 mm) |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35387) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188344) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2765130000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2765130000) |
| User Documentation | [FL_D-SERIES_DRL1CO_LOAD_GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_306027) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
