Power measurement/display for 1-, 3-phase mains

Tuotteen tunnus 2540890000
Lataa tietosivu Engineering Support Software Support Product Downloads
Lisävarusteet 3 Samankaltaiset tuotteet 18
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Measuring current input Measuring voltage input Communication Inputs/outputs Measurement data recording Technical data Voltage quality measurement Insulation coordination Classifications Approvals

General ordering data

Version
Power measurement/display for 1-, 3-phase mains
Order No.
2540890000
Type

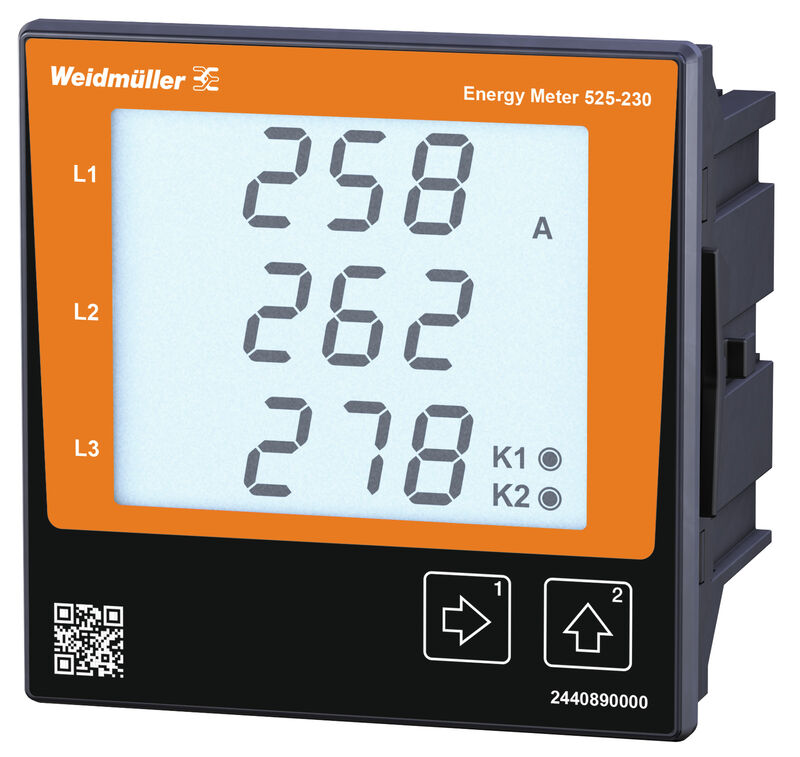

ENERGY METER 525-230
GTIN (EAN)
4050118553215
Qty.
1  items
Delivery status
This article will no longer be available in the future.
Available until
30.12.2025

Dimensions and weights

Depth
48  mm
Depth (inches)
1,89  inch
Height
96  mm
Height (inches)
3,78  inch
Width
96  mm
Width (inches)
3,78  inch
Net weight
250  g

Temperatures

Storage temperature
-25 °C...70 °C
Humidity at storage temperature
0...90 % RH
Operating temperature
-10 °C...55 °C
Humidity at operating temperature
0 - 75% RH

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Measuring current input

Current-measuring channels
3
Distortion factor THD-I in %
Yes
Harmonics, per order / current
1.-40.
Housing main material
Plastic
Max. current
5000 A
Measuring accuracy for current
0,2  %
Rated current
1 / 5 A
Residual current measuring
No

Measuring voltage input

Distortion factor THD-U in %
Yes
Four-wire system
Yes
Harmonics, per order / voltage
1.-40.
Low voltage network
3 phase 4 wire (L1 + L2 + L3 + N)
3 phase 3 wire (L1 + L2 + L3)
Measurement range, voltage L-L, AC
480 V
Measurement range, voltage L-N, AC
277 V
Measuring accuracy for voltage
0,2  %
Quadrants
4
Three-wire system
Yes

Communication

Interface
Ethernet
Protocol
Modbus/TCP
Modbus RTU over Ethernet

Inputs/outputs

Number of digital inputs
0
Number of digital outputs
0
Temperature input
No

Measurement data recording

Memory; minimum and maximum values
Yes
Update interval register
200  ms
Software
ecoExplorer go®
Integrated logic
Yes

Technical data

Display monitoring (monitor)
LCD
Max. current
5000 A
Protection degree
IP40
IP20
Rated current
1 / 5 A
Type of mounting
Frontpanel mounting
Version
Power measurement/display for 1-, 3-phase mains
Standards
EN 61326-1
IEC 61010-1
IEC 61010-2-030
Measurement range, voltage L-N, AC
277 V
Measurement range, voltage L-L, AC
480 V
Surge voltage category
300 V CAT III
Voltage supply
90 - 277 V AC (50/60 Hz)
90 - 250 V DC
Supply voltage
230 V
Three-wire system
Yes
Four-wire system
Yes
Quadrants
4
Sampling frequency 50/60 Hz
25,6  kHz
Continuous measurements
Yes
Measurement result per second
5  ms
Effective value from the period (50/60 Hz)
10 / 12
Residual current measuring
No
Current-measuring channels
3
Measuring accuracy for voltage
0,2  %
Measuring accuracy for current
0,2  %
Measurement accuracy for active energy (kWh, .../5 A)
Class 0.5S
Operating-hours counter
Yes
Weekly time switch
No
Bimetal function
Yes

Voltage quality measurement

Harmonics, per order / voltage
1.-40.
Harmonics, per order / current
1.-40.
Distortion factor THD-U in %
Yes
Distortion factor THD-I in %
Yes
Unbalanced
No
Positive, negative and zero system
Yes
Brief interruptions
No
Sequence-of-events recorder function
No

Insulation coordination

Surge voltage category
300 V CAT III

Classifications

ETIM 6.0
EC002301
ETIM 7.0
EC002301
ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 9.0
27-14-23-30
ECLASS 9.1
27-21-03-01
ECLASS 10.0
27-14-23-30
ECLASS 11.0
27-14-23-30
ECLASS 12.0
27-14-23-30
ECLASS 13.0
27-14-23-30
ECLASS 14.0
27-14-23-30
ECLASS 15.0
27-14-23-30
