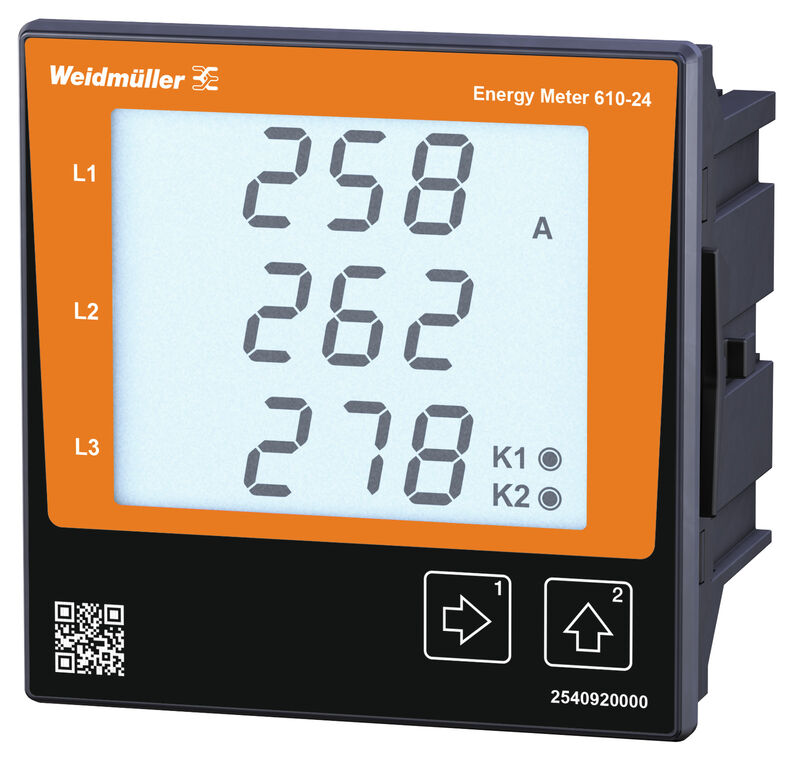

Power measurement/display for 1-, 3-phase mains

Produkt ID 2540920000
Download datablad Engineering-support Software-support Produktdownloads
Tilbehør 3 Anvendte produkter 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Вход измерительного тока Measuring voltage input Communication Inputs/outputs Measurement data recording Technical data Voltage quality measurement Insulation coordination Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
Zulassungen
CE
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E469563

General ordering data

Version
Power measurement/display for 1-, 3-phase mains
Order No.
2540920000
Type
ENERGY METER 610-24
GTIN (EAN)
4050118553246
Cantidad
1 Styk

Dimensions and weights

Depth
65 mm
Depth (inches)
2,559 inch
Height
96 mm
Height (inches)
3,78 inch
Width
96 mm
Width (inches)
3,78 inch
Net weight
250 g

Temperatures

Storage temperature
-25 °C...70 °C
Humidity at storage temperature
0...90 % RH
Operating temperature
-10 °C...55 °C
Humidity at operating temperature
0 - 75% RH

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Вход измерительного тока

Armoniche, per ordine/corrente
1.-40.
Canali di misura della corrente
4
Corrente max.
5000 A
Corrente nominale
1 / 5 A
Fattore di distorsione THD-I in %
Yes
Materiale base della custodia
Plastic
Misurazione della corrente differenziale
No
Misurazione della precisione della corrente
0,2 %

Measuring voltage input

Distortion factor THD-U in %
Yes
Four-wire system
Yes
Harmonics, per order / voltage
1.-40.
Low voltage network
3 phase 4 wire (L1 + L2 + L3 + N)
3 phase 3 wire (L1 + L2 + L3)
Measurement range, voltage L-L, AC
480 V
Measurement range, voltage L-N, AC
277 V
Measuring accuracy for voltage
0,2 %
Quadrants
4
Three-wire system
Yes

Communication

Interface
RS485: 9,6 – 115,2 kbps
USB
Protocol
Modbus RTU

Inputs/outputs

Ingressi digitali
4
Uscite digitali
6
펄스 출력 수
6
온도 입력
No

Measurement data recording

Memory; minimum and maximum values
Yes
Memory size
256 MB
Anzahl Speicherwerte
10.000 k
Update interval register
200 ms
Min. memory recording interval
60 s
Software
ecoExplorer go®
Integrated logic
Yes

Technical data

Corrente max.
5000 A
Kijelző felügyelet (monitor)
LCD
Protection degree
IP40
IP20
Rated current
1 / 5 A
Type of mounting
Frontpanel mounting
Version
Power measurement/display for 1-, 3-phase mains
Standards
DIN EN 61326
IEC 61010-1
IEC 61010-2-030
Campo di misura, tensione L-N, AC
277 V
Campo di misura, tensione L-L, AC
480 V
Surge voltage category
300 V CAT III
Supply voltage
24 - 90 V AC (50/60 Hz)
24 - 90 V DC
Supply voltage
24 V
Three-wire system
Yes
4-와이어 시스템
Yes
Quadrants
4
Sampling frequency 50/60 Hz
25,6 kHz
Continuous measurements
Yes
Measurement result per second
5 ms
Effective value from the period (50/60 Hz)
10 / 12
Misurazione della corrente differenziale
No
Current-measuring channels
4
Measuring accuracy for voltage
0,2 %
Measuring accuracy for current
0,2 %
Measurement accuracy for active energy (kWh, .../5 A)
Class 0.5S
Operating-hours counter
Yes
Weekly time switch
No
Clock
Yes
Bimetal function
Yes

Voltage quality measurement

Armónicos, por pedido/tensión
1.-40.
Armónicos, por pedido/corriente
1.-40.
Factor de distorsión THD-U en %
Yes
Distortion factor THD-I in %
Yes
Unbalanced
No
포지티브, 네가티브 및 제로 시스템
Yes
Brevi interruzioni
No
Función de grabación de secuencia de eventos
No

Insulation coordination

Categoría de sobretensión
300 V CAT III

Classifications

ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 14.0
27-14-23-30
ECLASS 15.0
27-14-23-30
