일반 주문 데이터

Version
1상, 3상 main 전력 측정/디스플레이
Order No.
2540910000
Type

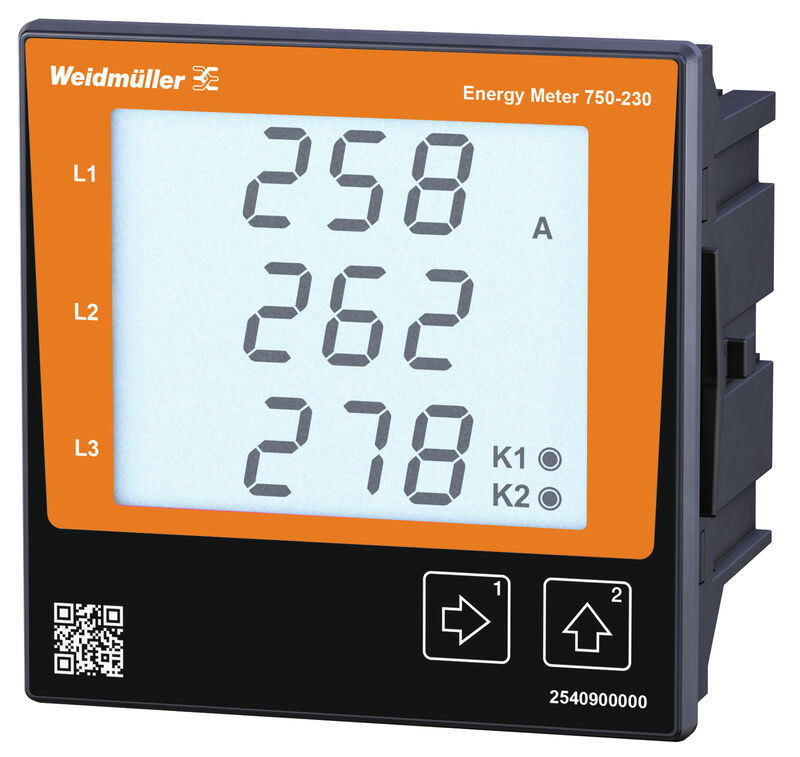

ENERGY METER 750-230
GTIN (EAN)
4050118553239
Qty.
1 adet

Rozměry a hmotnosti

Depth
72 mm
깊이 (인치)
2,835 inch
Height
96 mm
Height (inches)
3,78 inch
Width
96 mm
Width (inches)
3,78 inch
Net weight
250 g

온도

Storage temperature
-25 °C...70 °C
보관 온도에서 습도
0...90 % RH
Operating temperature
-10 °C...55 °C
Humidity at operating temperature
0 - 75% RH

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

Measuring current input

Current-measuring channels
4 + 2
Distortion factor THD-I in %
Yes
Harmonics, per order / current
1.-40.
Housing main material
Plastic
Max. current
5000 A
Measuring accuracy for current
0,2 %
Rated current
1 / 5 A
Residual current measuring
Yes

Measuring voltage input

Distortion factor THD-U in %
Yes
Four-wire system
Yes
Harmonics, per order / voltage
1.-40.
Low voltage network
3 phase 3 wire (L1 + L2 + L3)
3 phase 4 wire (L1 + L2 + L3 + N)
Measurement range, voltage L-L, AC
480 V
Measurement range, voltage L-N, AC
277 V
Measuring accuracy for voltage
0,2 %
Quadrants
4
Three-wire system
Yes

Kommunikation

Interface
RS485: 9,6 – 115,2 kbps
Ethernet
Servidor web/correo electrónico
Protocol
Modbus RTU
Modbus-Gateway
Modbus TCP/IP, Modbus RTU over Ethernet, SNMP
BACnet (optional)

Inputs/outputs

Number of digital inputs
3
Number of digital outputs
5
Analogue inputs (RCM, temperature, analogue)
2
Number of pulse outputs
5
Temperature input available
Yes

Enregistrement des données de mesure

Memory; minimum and maximum values
Igen
Memory size
256 MB
Number of memory values
10.000 k
Update interval register
200 ms
Min. memory recording interval
60 s
Software
ecoExplorer go®
Integrated logic
Yes

Technical data

Display monitoring (monitor)
LCD
Input frequency
<20 Hz
Max. current
5000 A
Protection degree
IP40
IP20
Rated current
1 / 5 A
Type of mounting
Frontpanel mounting
Version
Power measurement/display for 1-, 3-phase mains
Standardy
IEC 61010-2-030
IEC 61010-1
IEC 61326-1
Measurement range, voltage L-N, AC
277 V
Measurement range, voltage L-L, AC
480 V
Surge voltage category
300 V CAT III
Supply voltage
90 - 277 V AC (50/60 Hz)
90 - 250 V DC
Supply voltage
230 V
Three-wire system
Yes
Four-wire system
Yes
Quadrants
4
Sampling frequency 50/60 Hz
25,6 kHz
Continuous measurements
Yes
Measurement result per second
5 ms
Effective value from the period (50/60 Hz)
10 / 12
Residual current measuring
Yes
Current-measuring channels
4 + 2
Measuring accuracy for voltage
0,2 %
Measuring accuracy for current
0,2 %
Measurement accuracy for active energy (kWh, .../5 A)
Class 0.5S
Operating-hours counter
Yes
Clock
Yes
Bimetal function
Yes

Měření kvality napětí

Harmonics, per order / voltage
1.-40.
Harmonics, per order / current
1.-40.
Distortion factor THD-U in %
Yes
Distortion factor THD-I in %
Yes
Unbalanced
No
Positive, negative and zero system
Yes
Brief interruptions
Yes
Sequence-of-events recorder function
No

Insulation coordination

Surge voltage category
300 V CAT III

Classifications

ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 14.0
27-14-23-30
ECLASS 15.0
27-14-23-30
