G 20/0.25A/F

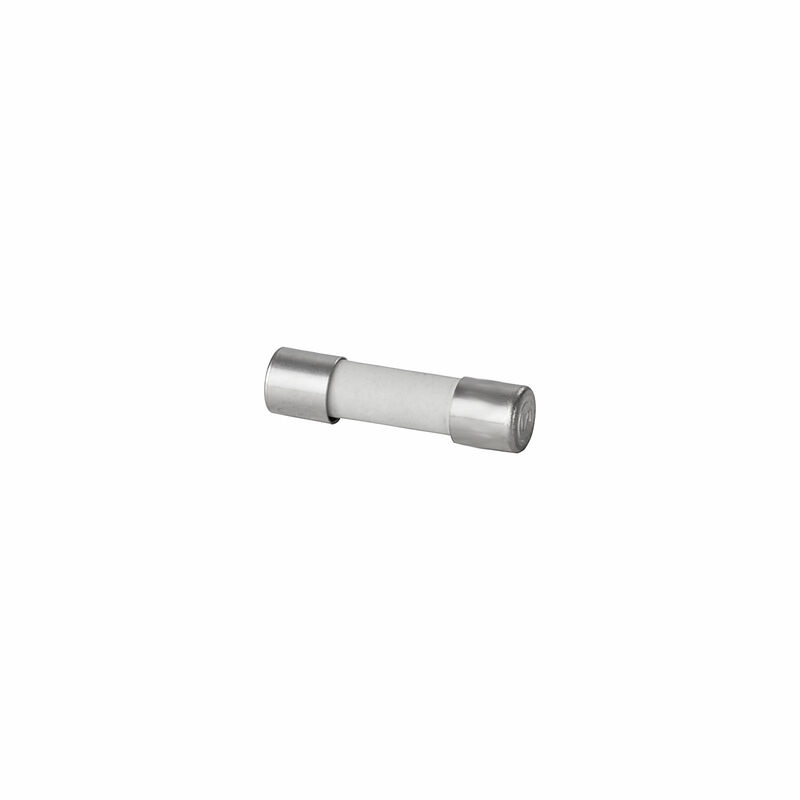

Product image

G 20/0.25A/F

Miniature fuse, quick-acting, 0.25 A, G-Si. 5 x 20

Ürün No. 0430500000
Veri sayfasını indir Engineeringondersteuning Productdownloads
aksesuarıdır 166 İlgili ürünler 84
Zulassungen General ordering data Dimensions and weights Temperatures Environmental Product Compliance Werkstoffdaten System specifications Rating data Produktbilder Klassifikationen

Zulassungen

ROHS
Konform

General ordering data

Version
Miniature fuse, quick-acting, 0.25 A, G-Si. 5 x 20
Číslo objednávky
0430500000
Type
G 20/0.25A/F
GTIN (EAN)
4008190153991
VPE
10 Stück

Dimensions and weights

Depth
5 mm
Depth (inches)
0,197 inch
Height
20 mm
Höhe (inch)
0,787 inch
Width
5 mm
Breite (inch)
0,197 inch
Net weight
0,9 g

Temperatures

Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Werkstoffdaten

Colour
lichtgrau

System specifications

Version
Fuse accessories

Rating data

Rated voltage
250 V
Nennstrom
0,25 A

Produktbilder

Bildunterschrift-02
Abbildung ähnlich

Klassifikationen

ETIM 8.0
EC002704
ETIM 9.0
EC002704
ETIM 10.0
EC002704
ECLASS 14.0
27-14-20-01
ECLASS 15.0
27-14-20-01
