Power module, 690 V, 40 A, Number of poles: 2, Axial screw connection, Female, Required plug-in slots: 1

Produkt ID 2748330000
Download datablad Engineering-support Produktdownloads
Tilbehør 24 Modstykker 2 Er et modstykke til 2 Anvendte produkter 115
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data PE connection data Version Power contact Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202
Certificate No. (cURus)
E310075

General ordering data

Version

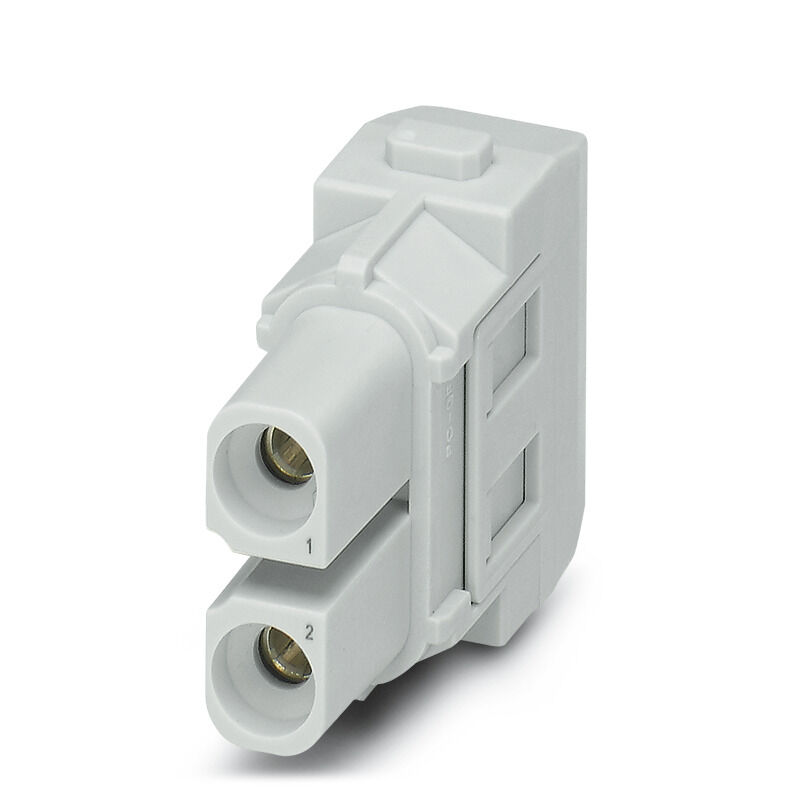

Power module, 690 V, 40 A, Number of poles: 2, Axial screw connection, Female, Required plug-in slots: 1
Order No.
2748330000
Type
HDC MHX 2 FAS
GTIN (EAN)
4050118891102
Qty.
2 Styk

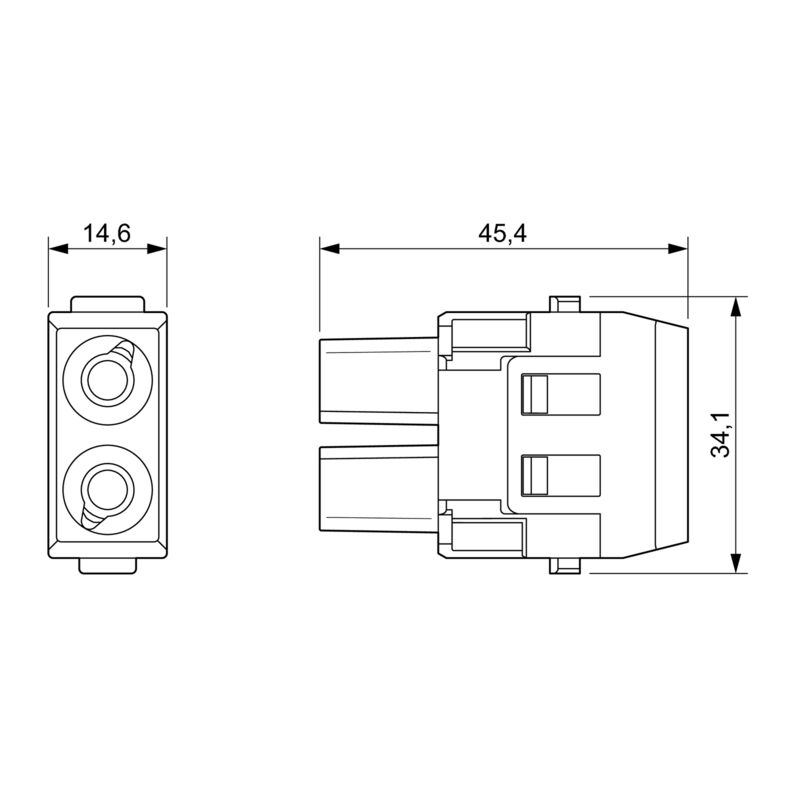

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
33,5 mm
Height (inches)
1,319 inch
Width
34,2 mm
Width (inches)
1,346 inch
Net weight
28 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
fa505316-3e43-4ad0-930c-360dfdbe182a

General data

Cicli di inserimento
≥ 500
Number of poles
2
Rated current (DIN EN 61984)
40 A
Rated impulse voltage (DIN EN 61984)
8 kV
Rated voltage (DIN EN 61984)
690 V
Rated voltage according to UL/CSA
600 V
Required plug-in slots
1
Serie
ModuPlug
Stopień zanieczyszczenia
3
Surge voltage category
III
UL 94 éghetőségi osztály
V-0
Основной материал
Polycarbonate
유형
Female

PE connection data

Connection type PE
Screw connection via module frame

Version

Conductor cross-section, max.
10 mm²
Conductor cross-section, min.
2,5 mm²
Type of connection
Axial screw connection

Power contact

Clamping range, power contact, max.
10 mm²
Clamping range, power contact, min.
2,5 mm²
Hexagon socket
2 mm
Stripping length according to the cable diameter
  • Cable diameter, max.:
    4,8 mm
  • Stripping length:
    9 mm
  • Cable diameter, max.:
    6,5 mm
  • Stripping length:
    11 mm
Tightening torque, max. according to the conductor cross-section
  • Conductor cross-section, min.:
    2,5 mm²
  • Conductor cross-section, max.:
    4 mm²
  • Tightening torque, max.:
    1,5 Nm
  • Conductor cross-section, min.:
    6 mm²
  • Conductor cross-section, max.:
    10 mm²
  • Tightening torque, max.:
    2 Nm
Tightening torque, power contact, max.
2 Nm
Tightening torque, power contact, min.
1,5 Nm

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-17
ECLASS 15.0
27-44-02-17
