HDC MMBIT 8 MC M2 SH
HDC MMBIT 8 MC M2 SH

HDC MMBIT 8 MC M2 SH

Data module, 48 V, 10 A, Cat. 5e, Number of poles: 8, Crimp connection, Male, Required plug-in slots:

Product ID 3092890000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 11 Is accessoire van 1 Verwante producten 106
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Version Power contact Classifications

Approvals

ROHS
Conform

General ordering data

Version
Data module, 48 V, 10 A, Cat. 5e, Number of poles: 8, Crimp connection, Male, Required plug-in slots:
Order No.
3092890000
Type
HDC MMBIT 8 MC M2 SH
GTIN (EAN)
4099987109932
Qty.
1  items

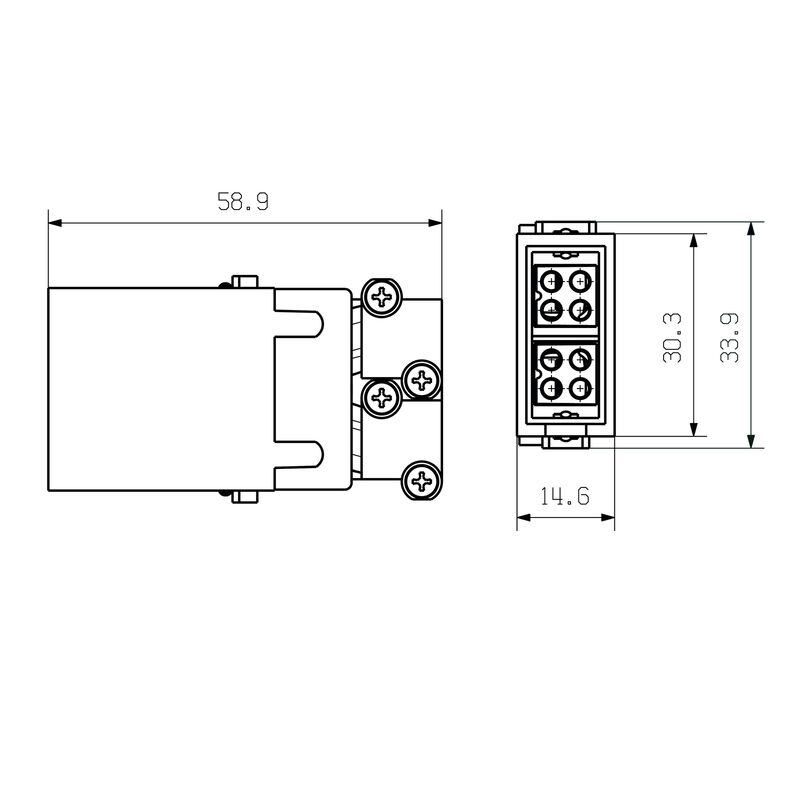

Dimensions and weights

Height
58,9  mm
Height (inches)
2,319  inch
Width
33,8  mm
Width (inches)
1,331  inch
Length
14,6  mm
Length (inches)
0,575  inch
Net weight
30,4  g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Category
Cat. 5e
Material
Polycarbonate
Number of poles
8
Plugging cycles
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
10  A
Rated impulse voltage (DIN EN 61984)
0,8  kV
Rated voltage (DIN EN 61984)
48  V
Series
ModuPlug
Surge voltage category
III
Type
Male
UL 94 flammability rating
V-0

Version

Type of connection
Crimp connection
Wire connection cross section AWG, max.
AWG 26
Wire connection cross section AWG, min.
AWG 16

Power contact

Tightening torque, max. according to the conductor cross-section
  • Conductor cross-section, min.:
    0,14 mm²
  • Conductor cross-section, max.:
    1,5 mm²

Classifications

ETIM 6.0
EC002312
ETIM 7.0
EC002312
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-92
ECLASS 9.1
27-44-02-18
ECLASS 10.0
27-44-02-92
ECLASS 11.0
27-44-02-92
ECLASS 12.0
27-44-02-92
ECLASS 13.0
27-44-02-92
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
