HDC S8/0 MAS

HDC S8/0 MAS

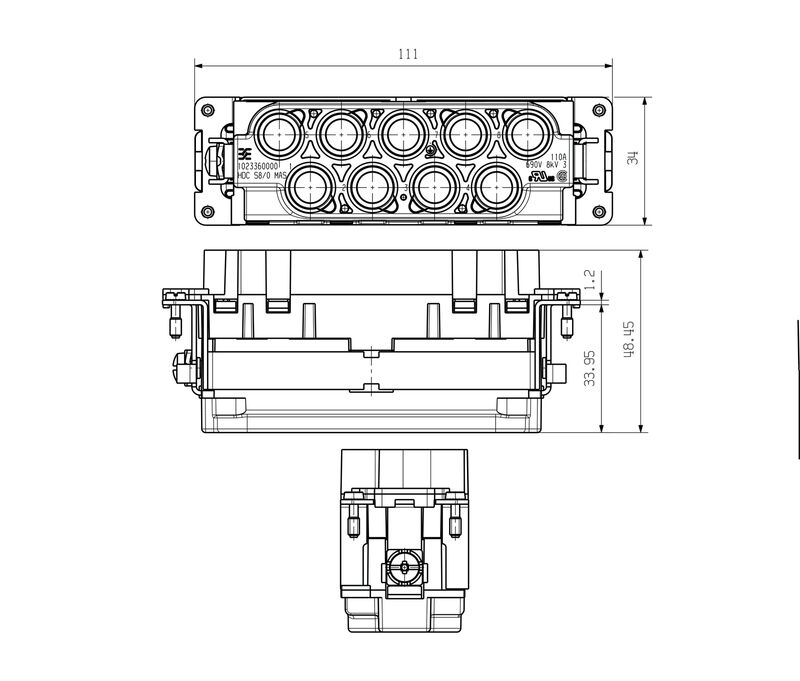

HDC insert, Male, 690 V, 110 A, Number of poles: 8, Axial screw connection, Installation size: 8

Product ID 1023360000
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance wymiary Všeobecné údaje 결선 데이터 PE Leistungskontakt Verze Classifications

Approvals

Schválení
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cURus)
E92202

General ordering data

Verze
HDC insert, Male, 690 V, 110 A, Number of poles: 8, Axial screw connection, Installation size: 8
Číslo objednávky
1023360000
Typ
HDC S8/0 MAS
GTIN (EAN)
4032248739509
Množství
1 items

Dimensions and weights

Hloubka
111 mm
Depth (inches)
4,37 inch
Výška
48,5 mm
Height (inches)
1,909 inch
Šířka
34 mm
Width (inches)
1,339 inch
Net weight
263,12 g

Temperatures

Mezní teplota
-40 °C ... 125 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant with exemption
Výjimka ze směrnice RoHS (je-li použitelné/známo)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemická odolnost
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

wymiary

Height of plug
48,5 mm
Total length base
111 mm
Width
34 mm

Všeobecné údaje

Basic material
Slitina mědi
BG
8
Colour
bézs
Conductor cross-section
25 mm²
Installation size
8
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Number of poles
8
Number of power contacts
8
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (cUR)
  • Przekrój poprzeczny połączenia AWG:
    AWG 8
  • Rated current:
    44 A
  • Przekrój poprzeczny połączenia AWG:
    AWG 6
  • Rated current:
    56 A
  • Przekrój poprzeczny połączenia AWG:
    AWG 4
  • Rated current:
    66 A
  • Przekrój poprzeczny połączenia AWG:
    AWG 2
  • Rated current:
    83 A
Rated current (DIN EN 61984)
110 A
Rated current (UR)
  • Przekrój poprzeczny połączenia AWG:
    AWG 8
  • Rated current:
    50 A
  • Przekrój poprzeczny połączenia AWG:
    AWG 6
  • Rated current:
    65 A
  • Przekrój poprzeczny połączenia AWG:
    AWG 4
  • Rated current:
    85 A
Rated impulse voltage (DIN EN 61984)
8 kV
Rated voltage (DIN EN 61984)
690 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
MixMate
Surface finish
Silver passivated
Type
Male
Type of connection
Axial screw connection
UL 94 flammability rating
V-0
Volume resistance
≤1 mΩ

결선 데이터 PE

Connection type PE
스크류 결선
기타
Rated cross-section
25 mm²
Stripping length PE connection
12 mm
Tightening torque, max. PE connection
7 Nm
Tightening torque, min. PE connection
6 Nm
Wire cross section, AWG (PE), max.
AWG 4
Wire cross section, AWG (PE), min.
AWG 8

Leistungskontakt

Clamping range, power contact, max.
25 mm²
Clamping range, power contact, min.
10 mm²
Hexagon socket
4 mm
Number of poles, performance contact
8
Rated current (DIN EN 61984), power contact
110 A
Rated impulse voltage (DIN EN 61984), power contact
8 kV
Rated voltage (DIN EN 61984), power contact
690 V
Stripping length, performance contact
12 mm
Type of connection, power contact
Axial screw connection

Verze

Basic material
Slitina mědi
BG
8
Clamping screw
M 8 x 0,75 mm
Conductor cross-section, max.
25 mm²
Conductor cross-section, min.
10 mm²
Installation size
8
Stripping length, rated connection
12 mm
Surface finish
Silver passivated
Type of connection
Axial screw connection
Volume resistance
≤1 mΩ
Wire connection cross section AWG, max.
AWG 4
Wire connection cross section AWG, min.
AWG 8
Wire connection cross section, finely stranded, max.
25 mm²
Wire connection cross section, finely stranded, min.
10 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
