HSS 4.2-12.7 EL Y30M
HSS 4.2-12.7 EL Y30M

HSS 4.2-12.7 EL Y30M

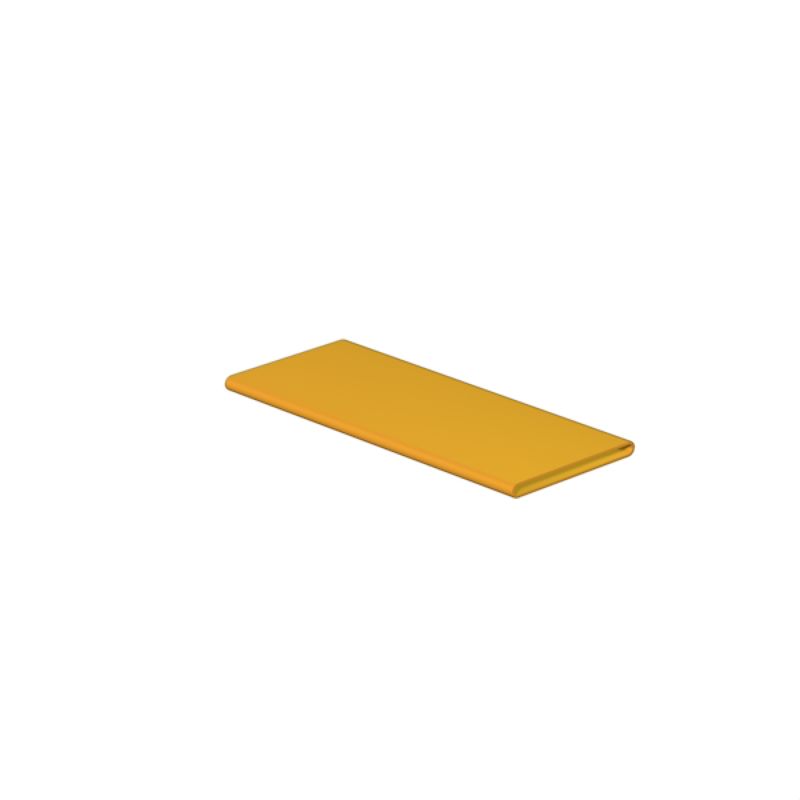

Conductor and cable markers, 4.2 - 12.7 mm, yellow

Item No. 1505810000
Download data sheet Product Downloads Engineering Support
Accessories 4 Related products 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E366310

General ordering data

Version
Conductor and cable markers, 4.2 - 12.7 mm, yellow
Order No.
1505810000
Type
HSS 4.2-12.7 EL Y30M
GTIN (EAN)
4050118314342
Qty.
1  items

Dimensions and weights

Depth
0.77  mm
Depth (inches)
0.03  inch
Width
20.9  mm
Width (inches)
0.823  inch
Length
30,000  mm
Length (inches)
1,181.1  inch
Net weight
260  g

Temperatures

Operating temperature range
-55...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
yellow
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
Yes
Length
30,000  mm
Material
Polyolefine
Operating temperature range
-55...135 °C
Operating temperature range, max.
135  °C
Operating temperature range, min.
-55  °C
Printed characters
without
Recommended industries
Plant manufacture
Energy
Device manufacturer
Machinery
Type of printing
neutral
Width
20.9  mm

Conductor and cable markers

Conductor cross-section, max.
35  mm²
Conductor cross-section, min.
6  mm²
Conductor O.D.
4.2 - 12.7 mm
Conductor O.D., max.
12.7  mm
Conductor O.D., min.
4.2  mm
Cross-section for connected wire
6 - 35 mm²
Halogen
Yes
Rate of shrinkage
3:1
Recommended shrinking temperature
90  °C
Text field height
20.7  mm
Text field width
0  mm

Important note

Product information
External roll holder 1302920000 necessary

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
