IE-BHD-V01M-SCA
IE-BHD-V01M-SCA
Installation cut-out
Mounting cut-out: 1. With central screw connection / 2. For mounting with four M3 screws
IE-BHD-V01M-SCA
Detailed drawing
Wall thickness when using the central screw connection

IE-BHD-V01M-SCA

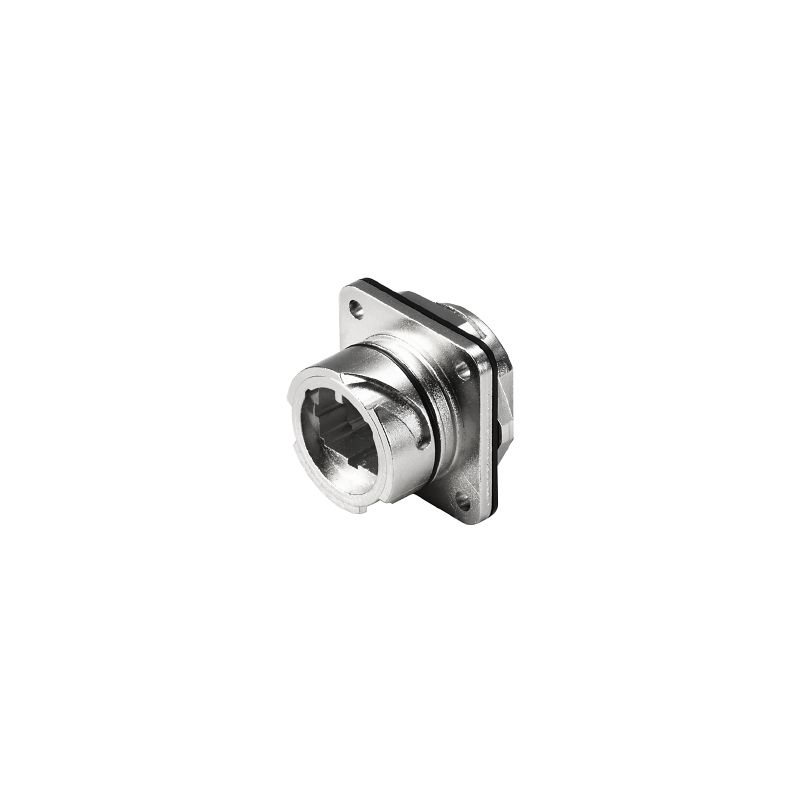

Empty enclosure, Flange-mounted housing, Variant 1 to IEC 61076-3-106, IP67

Item No. 1221030000
Download data sheet Engineering Support Product Downloads
Related products 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Utförande
Empty enclosure, Flange-mounted housing, Variant 1 to IEC 61076-3-106, IP67
Заказ №
1221030000
Type
IE-BHD-V01M-SCA
GTIN (EAN)
4050118003956
Qty.
10 items

Dimensions and weights

Djup
27 mm
Depth (inches)
1,063 inch
Height
32 mm
Height (inches)
1,26 inch
宽度
32 mm
Width (inches)
1,26 inch
Net weight
56,4 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
SCIP
e5bbf197-73b5-420b-90c0-0173b7b3b6b7

General data

Colori
Miscellaneous
ハウジング主要材質
Zinc diecast
取り付け方式
4 screws
Central nut
보호 등급
IP67
플러그 주기
750

General standards

Csatlakozó, standard
IEC 61076-3-106 Var. 1
N° Certificato (cULus)
E316369

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-01-04
ECLASS 15.0
27-19-01-04
